AK-Motion BMW 5 Series F10/F11 Vent-Mount 3.2" Touchscreen Data Display – Digital Gauge, Boost & Performance Monitor (2009-2016) Fits 535i, 550i, M550d xDrive, M5 – Live OBD2 Data, Timers, OEM-Style

AK-Motion 3.2 inch Touch Panel - Vent Integrated Performance Screen for BMW 5 Series F10 F11

Transform your BMW 5 Series cockpit with a factory-look performance screen that lives in the centre air vent. The AK-Motion 3.2 inch colour touchscreen gives you live vehicle telemetry, drag timers and powerful control functions without a bulky pillar pod or stick-on gauge. It looks OEM, it works brilliantly and it puts the information you care about right where you can see it.

We have installed and used this unit at MJ Modifications and our customers love it. The clarity of the display, the custom layouts and the depth of readouts make it the go-to solution for enthusiasts who want real-time info for road, track and tuning. If you are searching for a BMW F10 gauge pod alternative, a discreet F11 vent screen, or an F10 M5 OBD display with a genuine factory finish, this is the one.

Highlights

• Factory-style vent integration - central outlet replacement for a clean, discreet install
• 3.2 inch capacitive touch panel with crisp colour graphics
• Custom dashboards - choose your own layouts, colours and warning thresholds
• Configurable shift light on screen and optional instrument cluster flash
• Performance timing - 0 to 60 mph, 0 to 100 km h, 100 to 200 km h, 1/8 mile, 1/4 mile, 1/2 mile and lap timing with saved runs
• Diagnostics - read and clear fault codes, show peak values, enable built-in OBD diagnostics via the display
• Vehicle controls - exhaust valve control, Active Sound Design on off for F Series, enable burble on F Series, OBD port lock with user code, control up to four relays
• Brightness control - automatic or manual dimming for day and night
• USB updateable firmware with included cable, plus matte anti-glare film for improved visibility
• Multi-language and unit support - Bar or PSI, Celsius or Fahrenheit, PS or kW, Lambda or AFR

Live readouts and telemetry

• Manifold pressure - actual and target
• Intake air temperature IAT and charge temps
• Oil temperature and oil pressure F Series, external sensor option for other platforms
• Coolant water temperature and battery voltage
• Fuel system info - fuel pressure, rail pressure
• Lambda AFR and ignition timing
• Air mass air flow and wastegate position
• Gearbox transmission temperature for automatic and DCT where supported
• Power and torque estimates with max value memory
• Speed with GPS match function, G force meter
• DPF data on diesel models - differential pressure, soot mass, pressure before DPF and distance since last regeneration
• Calculated exhaust gas temperature
• Dashboard with eight freely selectable values, plus bar graphs and flow diagrams up to four parameters
• Needle sweep on ignition where applicable
• Scaled map compensation for high boost N54 applications where relevant

Why owners choose this screen

• Looks like it belongs in the car - no suction cups or stick-on pods
• Fast, reliable live data direct from factory ECUs via OBD
• Ideal for tuned cars - torque compensation value support for vehicles with piggyback or power box
• Track-day ready - precise timing functions and data you can trust
• Tested by MJ Modifications - excellent feedback from daily drivers and weekend warriors

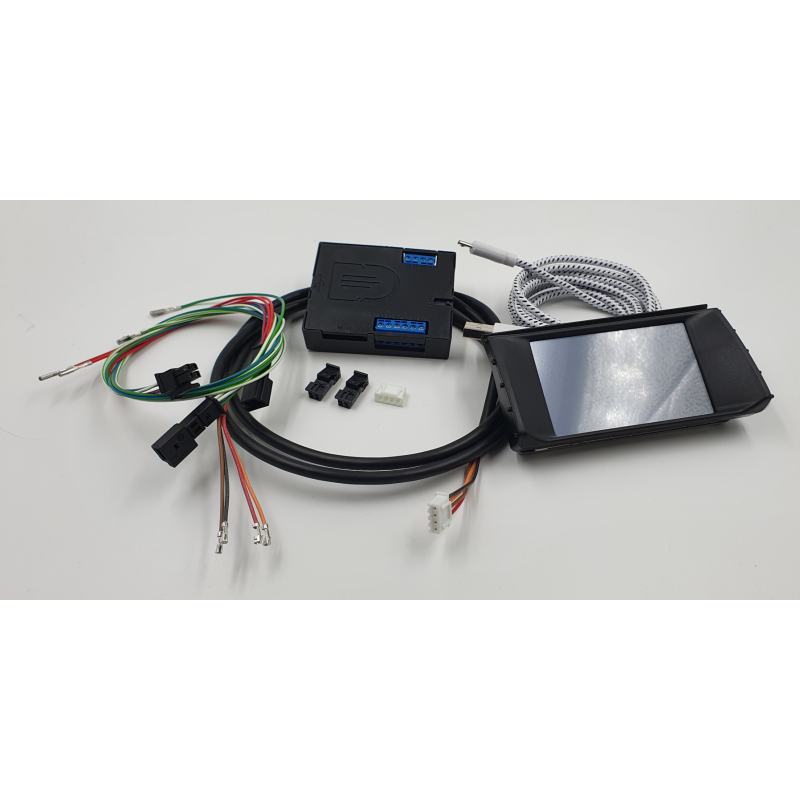

What you get

• Control unit
• 3.2 inch display with model-specific vent frame
• Vehicle wiring harness and display cable
• USB cable for software updates
• Matte anti-reflection film
• 2 x socket housings for the required rewiring steps

Compatibility

• BMW 5 Series F10 Saloon and F11 Touring 2009 to 2016
• Models covered - 535i N55, 550i N63, M550d xDrive, M5 S63

Important fitment notes

• Left-hand-drive vehicles only - the supplied vent frame does not fit right-hand-drive dashboards
• Designed for cars with 2-zone ventilation - further modification is required for other HVAC configurations
• Functions vary by engine and control unit
• Not for G Series platforms

Installation

The screen replaces the centre air vent slat and connects via the supplied harness. Some rewiring is required using the included socket housings. Professional fitting is recommended for the best result and to retain the factory finish.

Need it installed Contact MJ Modifications in Warwickshire for a fitting quote - info@mjmodifications.co.uk

Part number

AKMF1X1000

Manufacturer

AK-Motion
