AK-Motion 3.5 inch Vent-Mounted Touchscreen for BMW 1 Series F20 F21

Add a factory-looking digital dash to your F20 or F21 with the AK-Motion 3.5 inch touch display. The screen sits neatly in the centre air outlet using a model-specific frame, giving you instant access to live telemetry, track timing and diagnostics without cluttering the cabin. Ideal for M140i, M135i and 120i owners who want OEM-style integration with proper motorsport-grade data.

We run this unit on our own M140i and it is brilliant. Customers love how quick it is to read key engine vitals and how clean the install looks. If you want a vent gauge, multifunction digital display or plug-and-play CAN reader for your BMW 1 Series, this is the one we recommend.

Why enthusiasts choose this screen

• Made for BMW F20 and F21 1 Series including 120i, M135i and M140i
• Stealth centre vent fitment with supplied trim for a true OEM finish
• Full colour capacitive touchscreen with matte anti-glare film for clear visibility
• Live parameters from the vehicle network including boost, oil temperature, coolant temperature, HPFP rail pressure and more
• Built-in performance timing including 0 to 100, 100 to 200, 1/8 mile, 1/4 mile and 1/2 mile
• Custom dashboards, adjustable shift light and lap timing views
• Read and clear fault codes directly on the display
• Model and engine specific feature set for F-Series platforms

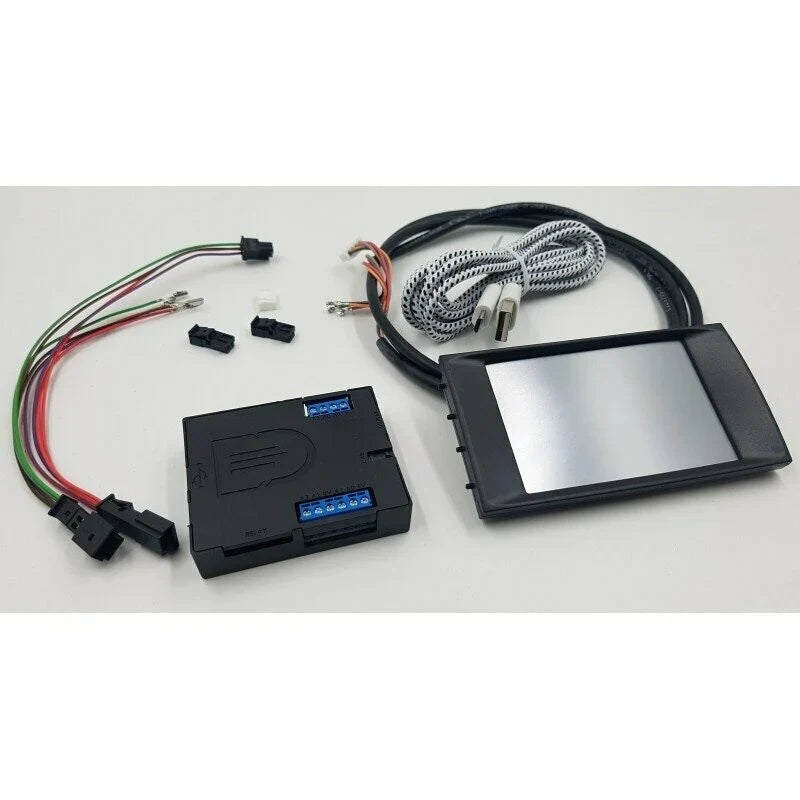

What you get in the box

• Control module
• 3.5 inch touch display with centre vent frame
• Car-specific wiring harness
• Display cable
• USB lead for firmware updates
• Matte anti-reflection film
• Socket housings for any required re-pinning

Core functions and live readouts

Available functions vary by engine and model, and include:

• Enable or disable Active Sound Design on F-Series
• DSC and DTC start-up behaviour on E-Series
• Control up to four auxiliary relays
• Ignition-on needle sweep
• Configurable shift light on-screen or by indicator flash
• MAF airflow
• Auto or manual screen brightness
• Battery voltage
• Boost actual and boost target
• Charge air temperature IAT
• Scaled map compensation for N54 when running over 1.5 bar
• Eight-value custom dashboard
• Remove R indicator on F-Series without catalyst code
• DPF differential pressure
• Distance since last successful DPF regeneration
• Burble enable on F-Series
• OBD2 diagnostics via the display
• Calculated exhaust gas temperature
• Ignition angle
• Exhaust valve control
• Custom boot logo
• Colour-coded limits for temps and pressures
• User-defined speed and acceleration tests
• Three custom values as numeric or bar graphs
• Fuel pressure high side
• 65k colour graphical interface
• Transmission fluid temperature for auto and DKG on E and F platforms
• G-force meter
• Ignition timing
• Lambda and AFR
• Lap timing with distance and split
• OBD2 lock with code
• Oil pressure with external sender on E and F platforms
• Oil temperature
• Optional external probes for oil temp, oil pressure and EGT
• Calculated power
• Pre-DPF pressure
• Rail pressure
• Read and clear engine fault codes
• Store and reset peak values
• Save last four timing results
• Languages and units: English, German, Italian, French, Dutch. Bar or PSI. PS or kW. Lambda or AFR. Celsius or Fahrenheit
• DPF soot mass
• Speed calibration to match GPS
• 0 to 100 timing
• 1/2 mile timing
• 1/4 mile timing
• 1/8 mile timing
• 100 to 200 timing
• Torque
• Torque compensation for tuned cars or power boxes
• Upgradeable firmware
• Up to four user-selected channels in a live graph
• Wastegate position
• Coolant temperature

Compatibility

• BMW 1 Series F20 and F21 including 120i, M135i and M140i

Note: G-Series vehicles are not supported.

Part numbers

• AKMF2X1000.1 LHD
• AKMF2X1000.2 RHD

Install and support

Typical fitting time is around 2 hours. For a professional install, book with MJ Modifications in Warwickshire. Request a quote at info@mjmodifications.co.uk. We use this display on our own M140i and our customers have been delighted with the results. We are happy to help with setup and configuration.

Ordering info

Please include your VIN at checkout so the correct configuration is supplied for your vehicle.

Manufacturer

AK-Motion

In the gallery

Browse the photos for real-world installs on F20 and F21 models. The vent-mounted screen looks factory and delivers the live data you want for fast road and track driving.
