Burger Motorsports (BMS) BMW & Audi Water Methanol (WMI) Injection Kit – JB4 Integrated – N20 N26 N54 N55 B48 B58 S55 S63

BMS Methanol-Water Charge Cooling System for BMW and Audi - JB4 Controlled

Important availability update: This specific BMS kit is no longer in production. For a proven, high-performance alternative we recommend the Snow Performance ProLine Universal Boost Cooler Stage 2E Power-Max. It delivers excellent results for turbo BMW and Audi applications that need reliable charge cooling and octane headroom.

Running a fast road or track-driven turbo BMW or Audi on UK pump fuel and want more consistent power with added knock protection? A methanol-water injection system is the upgrade that unlocks cooler intake temps, greater ignition stability and the ability to run more boost with confidence. We have installed and used these systems ourselves and our customers love the repeatable gains and on-road consistency.

Who is it for

Perfect for tuned BMW platforms including popular turbo engines such as N20, N26, N54, N55, B48, B58, S55 and S63, plus a strong universal choice for Audi turbocharged builds. Common searches include meth kit for BMW M3 and M4, alcohol injection for M5 and M6, B58 charge cooling solution, N54 meth setup, N55 octane injection and Audi turbo methanol system UK.

Smart JB4 control - safety and performance

Designed to work hand-in-hand with the JB4 controller for progressive delivery based on real-time CAN data like boost, throttle input, RPM, intake temp, ignition advance and gear. Flow is monitored and reported back, so if the supply is low or delivery drops, power is reduced to protect the engine. You can switch the system on or off from the cabin, it disables with traction or safety strategies and you can view flow data on the dash and via JB4 Mobile logs.

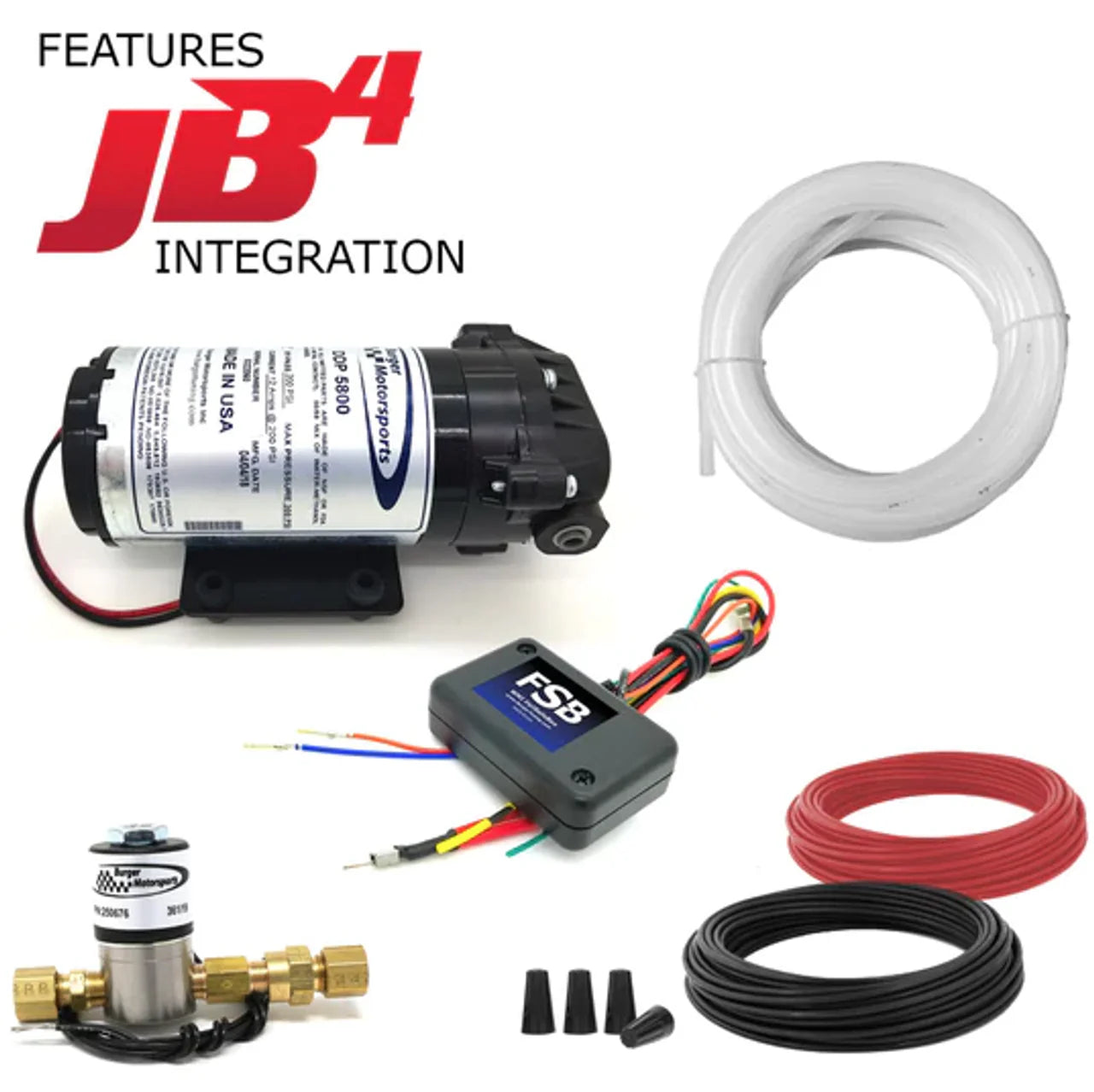

High quality hardware

• Robust 220 psi Aquatec pump for consistent atomisation
• Methanol compatible solenoid with integrated filter
• Durable compression fittings to minimise leaks
• Super atomising CoolingMist 1/8 NPT nozzles for excellent distribution
• Complete wiring and mounting accessories included

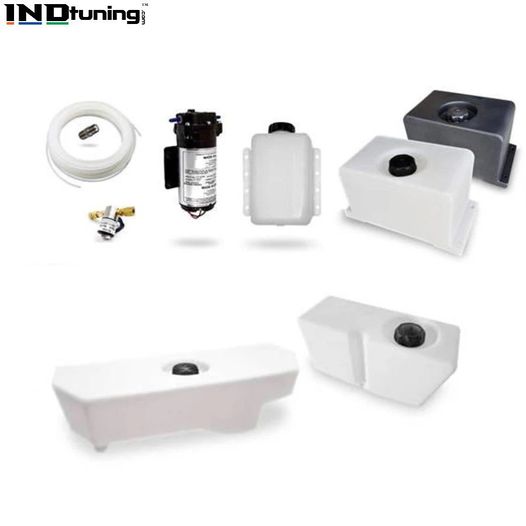

Tank options to suit your build

Pick the reservoir that fits your space and usage. All tanks include a 2-way vented black plastic cap and compression pump feed. Upgraded billet caps with 1-way check valves are available.

• 1 gallon universal - Clear for quick level checks. Mounts on any flat vertical surface in the boot. Compact and great value. Dimensions: L 11 in x W 9 in x H 4.5 in

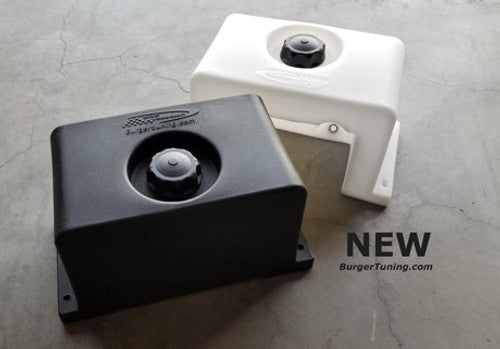

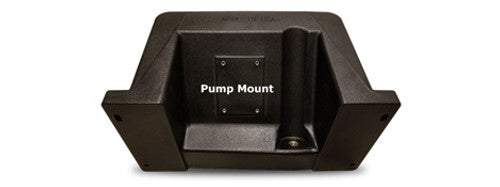

• 2 gallon universal low profile - Pump mounts directly to the tank for a tidy, quick install on a horizontal boot floor. Black or clear. Works with all DDP 5800 pumps. Made in USA. Dimensions: L 15.5 in x W 8 in x H 8.25 in

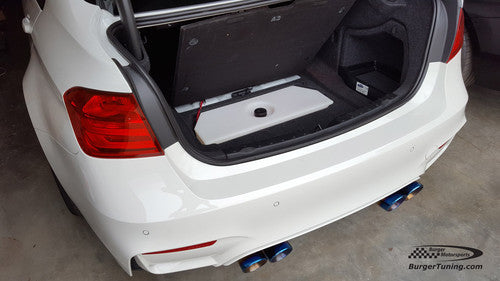

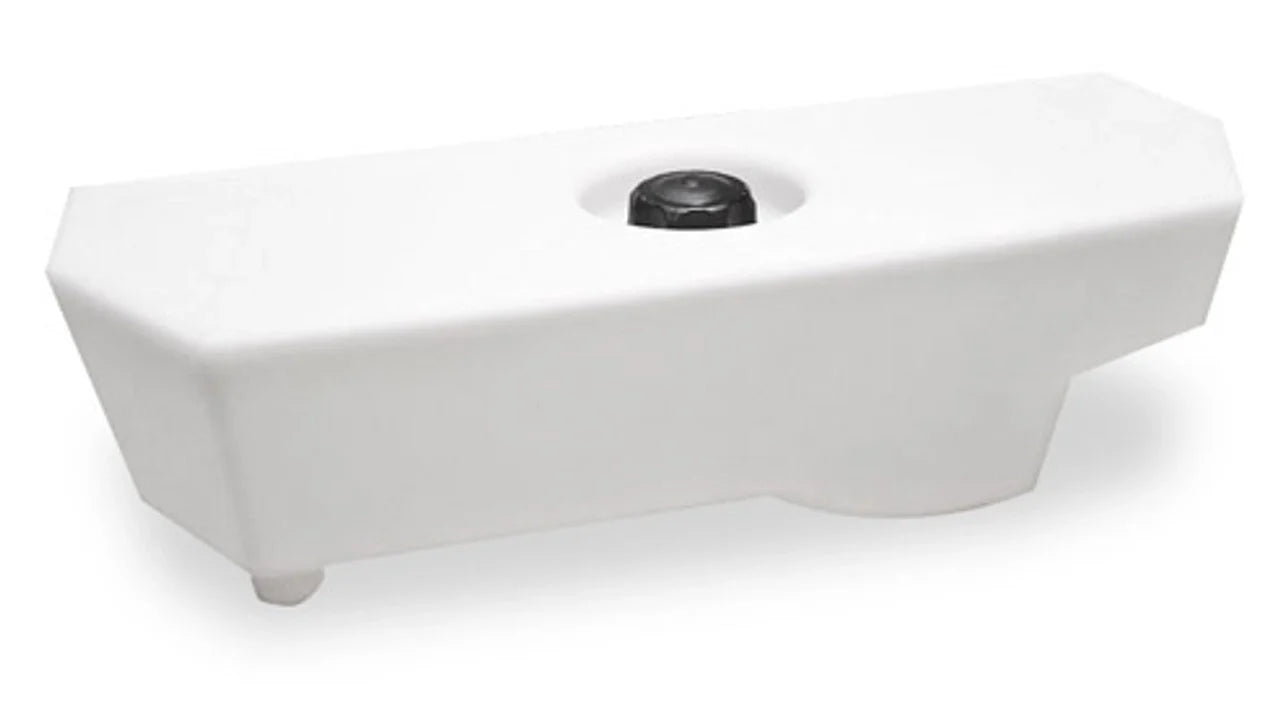

• 3 gallon F-chassis stealth - Hidden below the boot floor in 2013+ F3X and 2015+ F8X. Pump mounts to the underside. Integrated sump and baffle maintain consistent pickup. Dimensions: L 26.75 in x W 9.75 in x H 7.5 in
• 2 gallon F10 stealth - Discreet below-floor fit for 2011+ F10 including M5. Pump mounts to the bottom. Made in USA. Dimensions: L 16.5 in x W 6.5 in x H 8.25 in

Nozzle sizing guide

Choose jets based on power level and the number of bungs in your charge pipe. Two smaller nozzles often deliver better atomisation and distribution than a single large jet.

• N20 N26 - single BM7
• N54 N55 - stock turbo - single BM10 or twin BM5
• N54 N55 - hybrid turbos - single BM12 or twin BM7
• B48 - stock or hybrid - twin BM5
• B58 - stock or hybrid - twin BM7
• S55 - stock turbos - twin BM5
• S55 - hybrid turbos - twin BM7
• S63TU - stock or hybrid - twin BM10

Popular chassis fitment

• 2012+ 3 Series F30 saloon
• 2014+ 4 Series F32 coupe
• 2015+ F80 M3
• 2015+ F82 M4

Universal tank options also suit a wide range of BMW and Audi models where a boot-mounted reservoir is preferred. Frequent search terms include BMW F30 meth kit, F32 charge cooling, F80 M3 methanol system, F82 M4 alcohol injection and Audi universal meth tank.

Helpful extras

B58 owners may want the BMS B58 billet spacer to simplify neat and reliable nozzle placement on the charge side.

What owners say

We have run this style of methanol-water setup on our own cars and supplied many kits to customers. Feedback is consistently positive - cooler IATs, safer timing and repeatable performance on 97-99 RON pump fuel.

Fitting and support

Professional installation is recommended. For UK fitting, choose MJ Modifications in Warwickshire. Request a quote: info@mjmodifications.co.uk. We can advise on tank choice, nozzle sizing and JB4 configuration.

Compatibility check before dispatch

We will confirm compatibility before shipping. Please provide your UK registration number or the last 7 digits of your VIN at checkout.

Manufacturer

Burger Motorsports

Part number

METH-1GW

Warranty

Manufacturer warranty is not offered on this item.

Recommended accessory

BMS upgraded billet WMI tank cap with integrated safety check valve for improved venting and reliability.
