Forge

Forge Motorsport N54 Charge Pipe/

Forge Motorsport N54 Charge Pipe/

£397.19
£418.10 £397.19
Sale Sold out
Shipping calculated at checkout.
Finish
Spring

Heads-up on cancellations & returns: if you cancel an order or return an item, you won't get back 100% of what you paid. We apply a 10% restocking fee, the outbound shipping is non-refundable, and we have to pass on Shopify / PayPal payment processing fees; these aren't returned to us when we refund you. International orders also lose on exchange-rate spread in both directions. If the original packaging is damaged or missing, a reboxing charge applies. For international orders specifically, if you refuse to pay our shipping invoice or supply a prepaid label after placing the order, the same deductions apply. We're upfront about this — please be sure of your purchase before ordering.

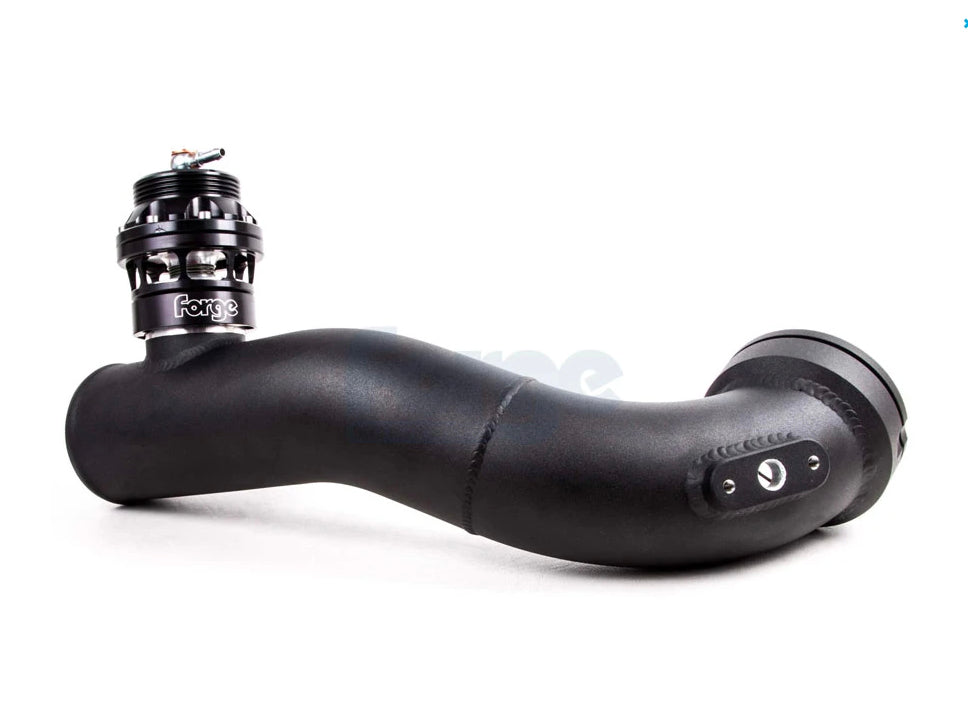

Forge FMBM335DV1 Boost Pipe and Dump Valve Kit for BMW E82 E88 135i, E90 E91 E92 E93 335i and E82 1M - N54 Twin Turbo

Looking for a rock solid upgrade for your N54 turbocharged engine that keeps boost where it belongs and delivers crisp throttle response under hard use and remap power levels? This Forge Motorsport aluminium charge air hard pipe with an integrated atmospheric piston valve is the proven solution for E-series BMW 135i, 335i and 1M owners who want reliable performance, clean fitment and effortless tuning headroom.

Part number FMBM335DV1 combines a high flow alloy throttle body pipe with Forge’s largest displacement piston dump valve for superb control and consistency. We have supplied and installed this kit on many customer cars and our own builds, and the feedback on fit, finish and drivability has been outstanding.

Why this upgrade stands out

  • Direct fitment for the 3.0 N54 twin turbo platform - E82 E88 135i, E90 E91 E92 E93 335i and E82 1M
  • Strong, leak resistant aluminium boost pipework to the throttle body for dependable sealing under higher boost
  • Integrated 50 mm piston atmospheric valve for exceptional flow, rapid response and refined operation
  • Heat stable Viton O-rings and high temperature lubricant support long service intervals
  • Quiet, smooth valve actuation thanks to the large, low restriction piston design
  • Ideal for remapped Stage 1 and Stage 2 setups as well as standard engines seeking improved reliability
  • Backed by Forge’s limited lifetime warranty for peace of mind

Real world performance

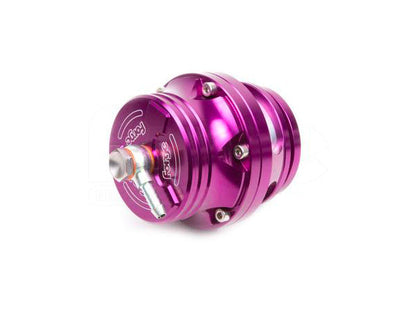

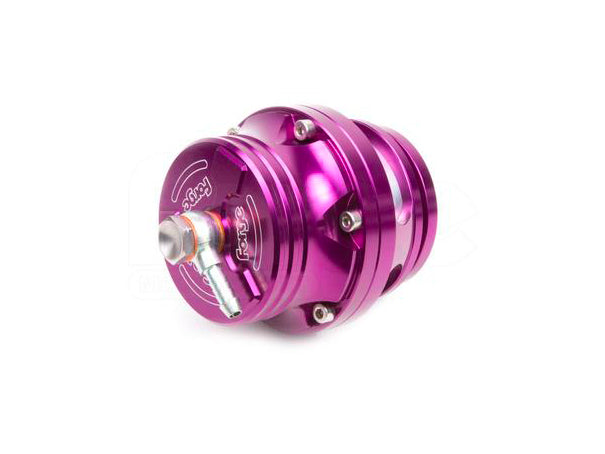

The included piston valve is the highest displacement unit Forge have produced to date. Its 50 mm alloy piston design moves serious air without the fragility of a diaphragm. In our experience it delivers consistent boost control and stable idle across a wide range of tunes. Customers report sharper response, clean venting and a tidy under-bonnet install that looks as good as it performs.

Spring and shim setup

For most N54 applications we recommend the Blue Spring with a 6.3 mm shim, targeting approximately 10 psi at idle vacuum. Always verify actual inlet manifold vacuum at normal operating temperature with a quality gauge at idle and select springs accordingly.

An optional 10 mm shim can be added to move from roughly 10 psi to around 11 psi to suit your preference.

Please note: Measure manifold pressure on your car to confirm the correct spring choice.

Optional service parts

If your original throttle body C-clip or O-ring is missing or worn, we recommend replacing them during installation to minimise the risk of boost leaks.

Vehicle fitment - BMW N54 applications

  • 1 Series E82 Coupe 135i and 1M 2008 to 2010
  • 1 Series E88 Convertible 135i 2008 to 2010
  • 3 Series E90 Saloon 335i 2007 to 2010
  • 3 Series E91 Touring 335i 2007 to 2010
  • 3 Series E92 Coupe 335i 2007 to 2010
  • 3 Series E93 Convertible 335i 2007 to 2010

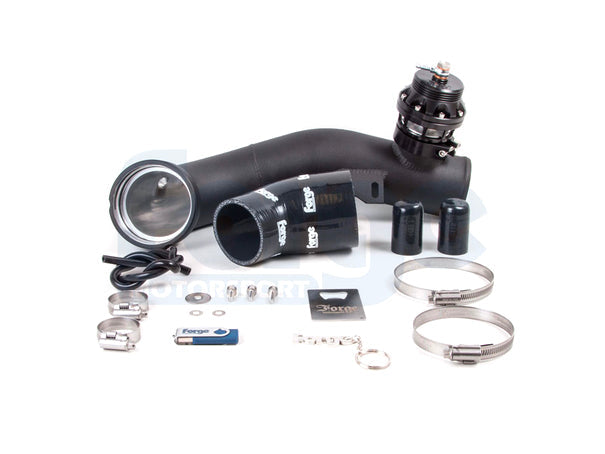

What is included in the kit

  • Forge piston dump valve assembly - FMBM335DV1
  • Aluminium throttle body hard pipe
  • Silicone reducer
  • Two silicone straight blank hoses 25 mm
  • Two 30 mm hose clamps
  • One 80 mm hose clamp
  • One 90 mm hose clamp
  • Two M6 x 12 socket cap bolts
  • One M6 x 16 socket cap bolt
  • One M6 penny washer
  • Two M6 plain washers
  • USB instructions
  • Forge keyring, bottle opener and sticker

Forge spring selection reference chart for piston valve

Installation and support

Professional fitting recommended. MJ modifications in Warwickshire can install this kit for you - request a quote at info@mjmodifications.co.uk.

Compatibility check before dispatch

We will confirm fitment before shipping. Provide your UK registration or the last 7 digits of your VIN at checkout to ensure the correct kit for your car.

Key details

  • Part number: FMBM335DV1
  • Manufacturer: Forge Motorsport
  • Warranty: Forge limited lifetime warranty non transferable
