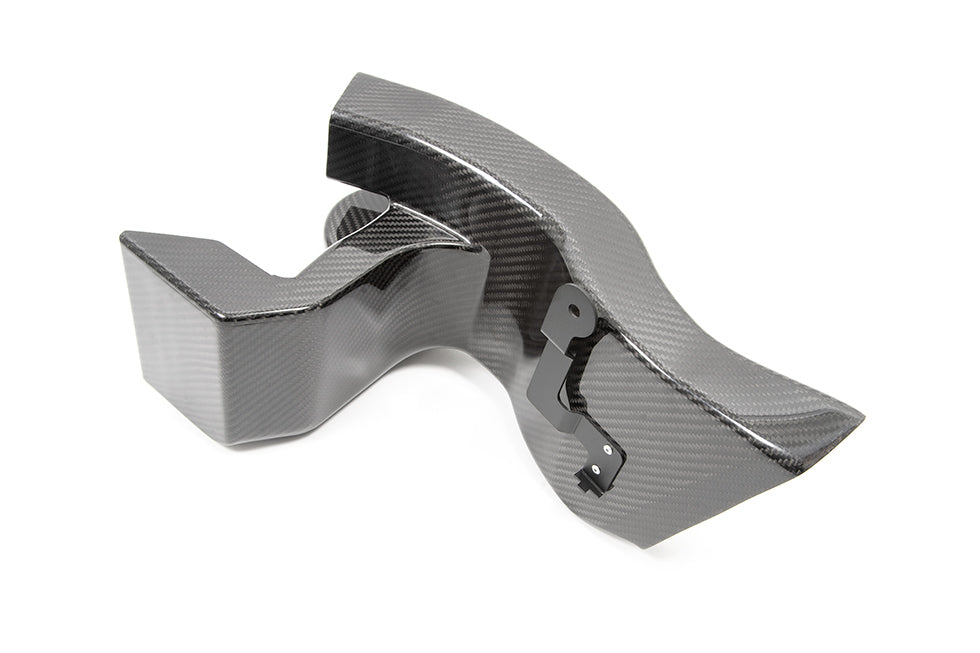

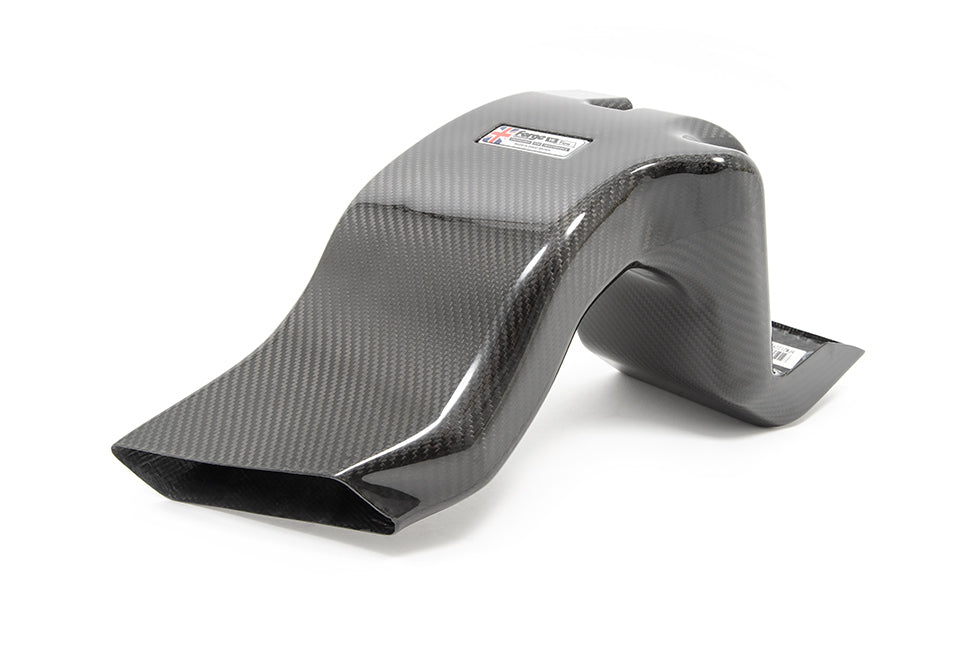

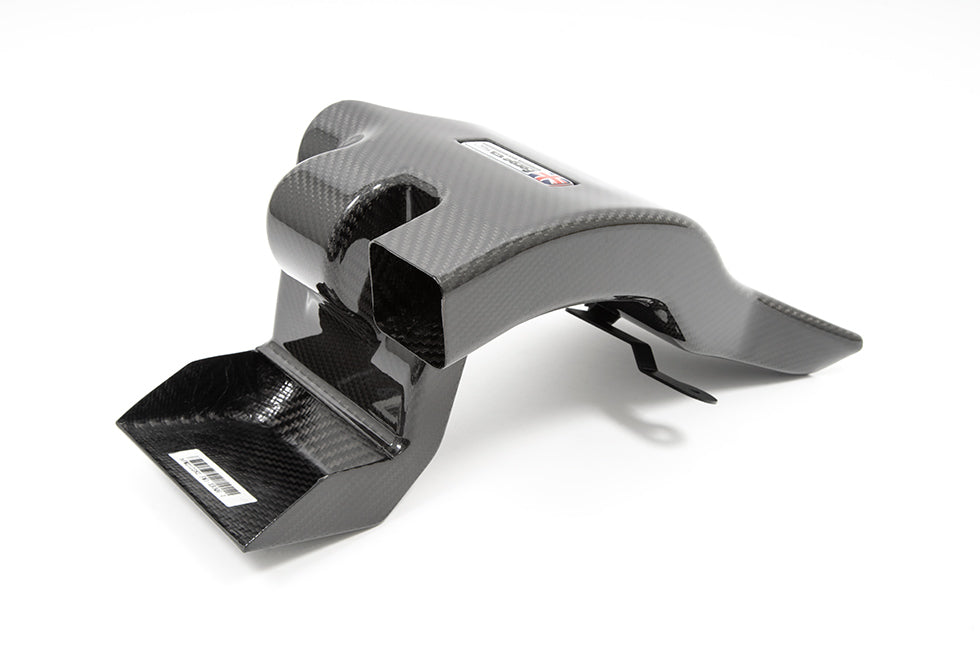

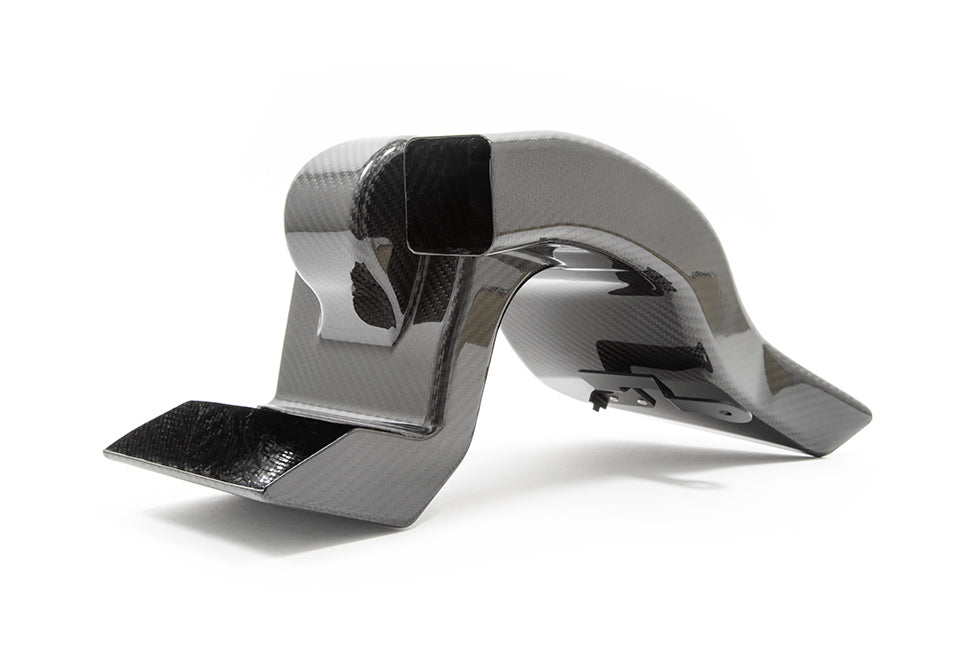

Forge Motorsport Toyota GR Yaris Carbon Fibre Inlet Duct (FMINLD1) - High-Flow Cold Air Intake Scoop for OEM Airbox, 2020+ 1.6

Forge GR Yaris Carbon Air Feed Snorkel FMINLD1 – Direct-Fit High Flow Airbox Feed for 2020 onwards G16E-GTS

Get colder, denser charge air to your Toyota GR Yaris with this motorsport-grade carbon air feed from Forge, part number FMINLD1. This direct-fit airbox feed replaces the restrictive factory snorkel with a larger, smoother, high flow ram-air guide that channels fresh airflow from the front of the car straight into the OE filter housing. Ideal for spirited road driving, track days and rally stages, it is the simple bolt-on induction upgrade that helps stabilise intake temps and keep performance repeatable.

• Part number: FMINLD1
• Fitment: Toyota GR Yaris 1.6 turbo G16E-GTS, 2020 onwards
• Material: Prepreg carbon fibre, 2x2 twill, autoclave cured with UV-resistant gloss clear coat
• Engineered to feed both the upper and lower airbox inlets for stronger cold air supply
• Enlarged opening and smooth internal profile for less turbulence and better airflow velocity
• Designed to help reduce heat soak and improve intake air temperature consistency
• CAD-optimised geometry based on 3D scans for a precise fit with the bumper and OE airbox
• Forge Motorsport Limited Lifetime Warranty on hardware

Why this carbon air feed works

The factory snorkel features baffles and open sections that can disturb airflow and draw warmer underbonnet air. Forge’s carbon air guide directs cool air from the front of the vehicle into the airbox, including the lower flap that opens under high demand. When you go full throttle, the engine needs a stronger, colder feed. This snorkel delivers it.

Real results, proven on circuit

In back-to-back track testing, the standard setup showed heat soak with intake temps in the low 40s Celsius and peaks around 45°C. With the Forge carbon feed installed, logged data stabilised around 35 to 36°C over repeated laps. Lower and steadier IAT helps the ECU maintain ignition timing, supporting consistent power delivery. Conditions and supporting mods will influence figures, but the trend is clear.

Premium construction, OE-style fit

Using digital scanning and CAD, Forge optimised size and routing to maximise flow to the stock air filter housing while helping limit hot engine bay air intrusion. The part is built from lightweight, rigid prepreg carbon in a 2x2 twill and cured in an autoclave for strength and accuracy, then finished with a UV-stable gloss. It looks as good as it performs, elevating the GR Yaris engine bay.

Perfect partner for your GR Yaris upgrades

This carbon air feed complements performance panel filters, turbo inlet adaptors and intercoolers by improving the quality of air entering the system. For road, fast B-road blasts and track days, it is a smart first step in the GR Yaris induction path that enhances drivability and repeatability.

Compatibility

• Toyota GR Yaris 1.6 turbo G16E-GTS, 2020 onwards

Manufacturer and warranty

Manufactured by Forge Motorsport with a Limited Lifetime Warranty on hardware.

Fitting and support

Want it professionally installed? MJ Modifications in Warwickshire can help. Request a fitting quote at info@mjmodifications.co.uk.

What we and our customers think

We have fitted this Forge carbon air feed on our own GR Yaris and for many customers. Feedback has been consistently positive, praising reduced heat soak, more stable IAT and a premium finish that transforms the bay.

Related upgrades

Pair with a Forge turbo inlet adaptor, a high-flow panel filter and a performance intercooler for an even more efficient intake tract.
