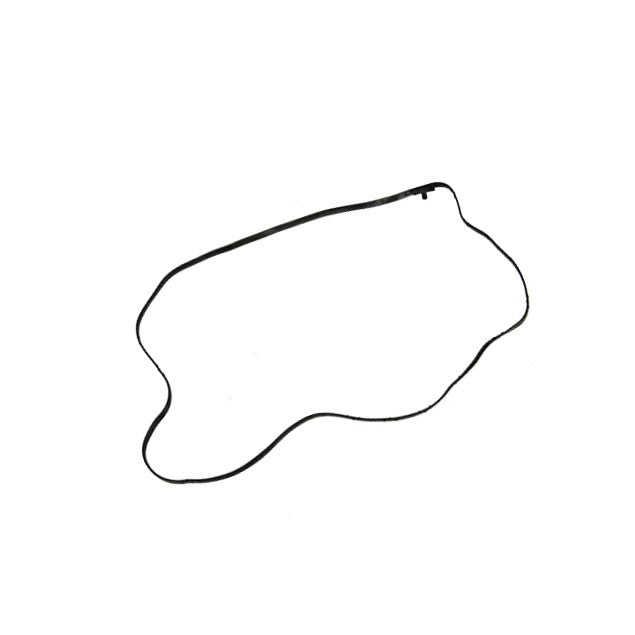

BMW ZF 6HP19/6HP19Z 6-Speed Auto Transmission Oil Pan Gasket, Gearbox Sump/Autobox ATF Pan Seal - E81 E90 E60 F01 X5 Z4 (130i 335i 535i) - OEM PN 24117571235

OEM Autobox Pan Seal for 6HP19Z 6-speed Units - PN 24117571235

Stop seepage, cure drips and keep your shifts crisp with this factory-original autobox sump seal designed for ZF 6HP19Z 6-speed units. This is the correct pan gasket to restore a proper seal on your transmission pan, preserving ATF pressure for smooth, reliable gear changes on performance and daily-driven vehicles alike.

Part number: 24117571235

Why this pan seal is the right choice

• Direct-fit gasket for the 6HP19Z 6-speed auto used across popular 1 Series, 3 Series, 5 Series, 6 Series, 7 Series, X models and Z4 platforms
• Engineered sealing material built to handle heat cycles, pressure and long service intervals
• Helps maintain consistent line pressure for smoother upshifts and downshifts
• No hassle fitment with the correct OEM profile and tolerances

We fit these in-house on our own builds and customer cars and they simply work. Customers choose this genuine-spec gasket for leak-free longevity and perfect fit every time.

Vehicle coverage highlights

Suits vehicles equipped with the ZF 6HP19Z 6-speed automatic, including but not limited to:

• 1 Series: E81, E87, E87 LCI, E88, E82
• 3 Series: E90, E90 LCI, E91, E91 LCI, E92, E92 LCI, E93, E93 LCI
• 5 Series: E60, E60 LCI, E61, E61 LCI
• 6 Series: E63, E63 LCI, E64, E64 LCI
• 7 Series: E65, E66, F01, F02
• X Models: X1 E84, X3 E83 LCI, X5 E70, X6 E71
• Z4: E85, E86, E89

Popular applications include 130i, 335i and 535i fitted with the 6-speed autobox.

Fitting and support

Want it installed by specialists who know these drivetrains inside out? Book fitting with MJ Modifications in Warwickshire. Request a quote via info@mjmodifications.co.uk.

Fitment check

We can verify compatibility before dispatch. Add your UK registration or the last 7 of your VIN at checkout and we will confirm this gasket matches your autobox.

Warranty

Two years manufacturer warranty for UK customers and one year for international customers when a VIN is provided at checkout on compatible vehicles.
