BMW ZF 6HP19/6HP19Z Auto Gearbox Sump O-Ring Seal, Transmission Oil Pan Gasket Ring, 6-Speed ATF, Fits E60 E61 E81 E87 E90 E92 F01 F02 X1 X3 X5 X6 Z4, 130i 335i 535i, OE 24117520714 | 24 11 7 520 714

BMW ZF 6HP19/6HP19Z Auto Gearbox Sump O-Ring Seal, Transmission Oil Pan Gasket Ring, 6-Speed ATF, Fits E60 E61 E81 E87 E90 E92 F01 F02 X1 X3 X5 X6 Z4, 130i 335i 535i, OE 24117520714 | 24 11 7 520 714

£3.34
£4.00 £3.34
Sale Sold out
Shipping calculated at checkout.

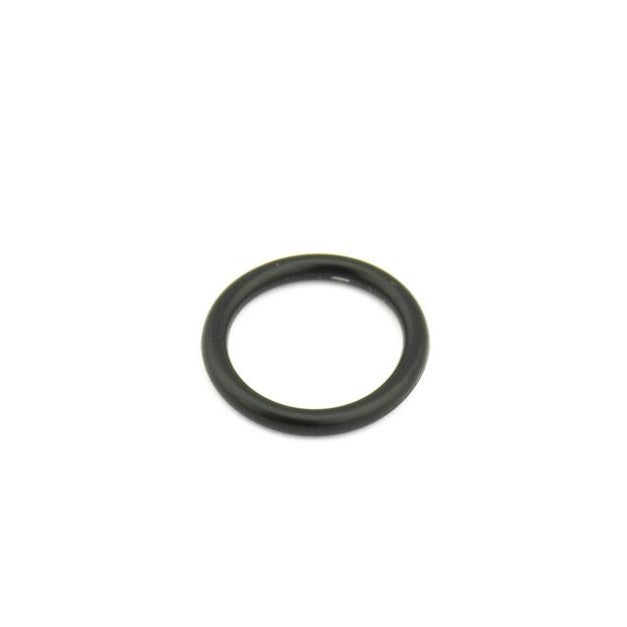

Authentic BMW Auto Gearbox Sump Sealing Ring for ZF 6HP19 family - OE 24117520714

Stop ATF drips and keep shift quality crisp with this BMW OE sump pan sealing ring. This direct-fit gearbox pan O ring is the correct factory part for ZF 6-speed 6HP19Z applications used across a wide range of BMW models including E60, E81, E90 and F01, plus favourites such as 130i, 335i and 535i. Ideal for anyone servicing their automatic gearbox or renewing the transmission pan and filter assembly.

Part number: 24117520714 - BMW OE 24 11 7 520 714

Why this OE sealing ring is the right choice

  • Genuine BMW fit and finish - exact dimensions for the ZF 6HP19Z fluid pan
  • Leak-free performance - helps prevent ATF seepage from the transmission sump
  • Protects smooth gear changes and gearbox longevity by maintaining fluid integrity
  • Perfect to pair with an ATF change, sump replacement or transmission service kit

We install this OE seal on our own cars and customer vehicles. It seals first time, every time, with consistent, trouble-free results. Owners choose the BMW original part for the correct material spec, dependable durability and peace of mind.

When to replace

  • During an automatic transmission fluid change
  • When renewing the sump or integrated filter pan
  • If you notice dampness around the pan edge or minor ATF weeping

Professional fitting and support

Professional installation is recommended. For expert fitting and advice, book with MJ Modifications in Warwickshire. Request a quote at info@mjmodifications.co.uk.

Compatibility

Suited to BMW models equipped with the ZF 6HP19Z 6-speed automatic transmission. See model coverage below.

Compatibility (Click to Expand)

  • 1' E81 (02/2006 - 12/2011)
  • 1' E87 (02/2003 - 02/2007)
  • 1' E87 LCI (01/2006 - 06/2011)
  • 1' E88 (11/2006 - 10/2013)
  • 1' E82 (11/2006 - 10/2013)

Also fits the following as a retrofit

  • 1' F20 (11/2011 - 02/2015)
  • 1' F20 LCI (06/2014 - 06/2019)
  • 1' F21 (12/2011 - 02/2015)
  • 1' F21 LCI (07/2014 - 06/2019)
  • 2' F22 (10/2012 - 06/2017)
  • 2' F22 LCI (09/2016 - 12/2019)
  • 2' F87 M2 (11/2014 - 06/2017)
  • 2' F87 M2 LCI (09/2016 - 12/2019)
  • 2' F23 (03/2014 - 06/2017)
  • 2' F23 LCI (10/2016 - 12/2019)
  • 3' E90 (02/2004 - 09/2008)
  • 3' E90 LCI (07/2007 - 12/2011)
  • 3' E91 (02/2004 - 08/2008)
  • 3' E91 LCI (07/2007 - 05/2012)
  • 3' E92 (05/2005 - 02/2010)
  • 3' E92 LCI (11/2008 - 06/2013)
  • 3' E93 (09/2005 - 02/2010)
  • 3' E93 LCI (11/2008 - 10/2013)
  • 5' E60 (12/2001 - 02/2007)
  • 5' E60 LCI (11/2005 - 12/2009)
  • 5' E61 (10/2002 - 02/2007)
  • 5' E61 LCI (11/2005 - 05/2010)
  • 6' E63 (02/2004 - 07/2007)
  • 6' E63 LCI (04/2006 - 07/2010)
  • 6' E64 (03/2004 - 07/2007)
  • 6' E64 LCI (04/2006 - 07/2010)
  • 7' E65 (07/2002 - 07/2008)
  • 7' E66 (09/2002 - 07/2008)
  • 7' F01 (09/2007 - 06/2012)
  • 7' F02 (09/2007 - 06/2012)
  • X1 E84 (09/2008 - 06/2015)
  • X3 E83 LCI (11/2006 - 08/2010)
  • X5 E70 (02/2006 - 03/2010)
  • X6 E71 (01/2007 - 03/2010)
  • Z4 E85 (10/2004 - 08/2008)
  • Z4 E86 (10/2005 - 08/2008)
  • Z4 E89 (01/2008 - 08/2011)

Compatibility check

For complete confidence, we will verify fitment before dispatch. Add your UK registration or the last 7 digits of your VIN at checkout and we will confirm this OE sealing ring is correct for your vehicle.

Warranty

Two years manufacturer warranty for UK customers and one year for international customers when a VIN is provided at checkout on compatible vehicles.

Manufactured by

BMW
