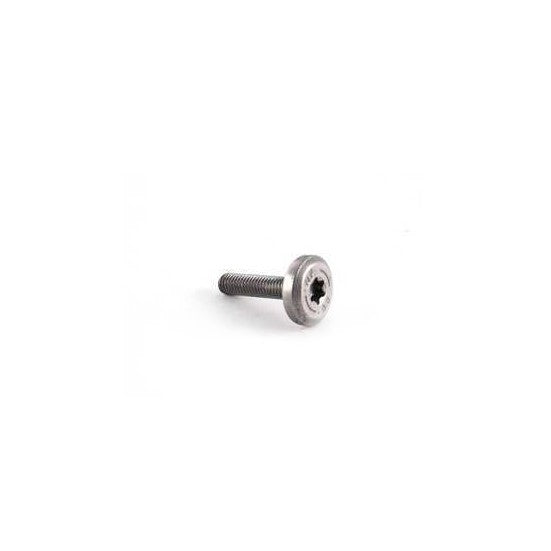

Genuine BMW Auto Gearbox/Transmission Pan Bolt M6 x 28.5

BMW auto gearbox pan screw M6 x 28.5 - ZF 6HP19Z - Part number 24159896928

Replace tired or missing pan fixings with this OE-spec M6 x 28.5 Torx fastener for the ZF 6HP19Z 6-speed automatic. This original BMW pan screw is the correct length and thread for the transmission oil pan, giving a secure seal during fluid and filter service and helping prevent weeps and drips after an ATF change. Perfect for preventative maintenance and fault-free reassembly on your 1 Series, 3 Series, 5 Series, 6 Series, 7 Series, X Series and Z4 applications that use the 6HP19Z.

We install these in-house and our customers consistently rate the fit and reliability. If you are refreshing the mechatronic pan or carrying out a full fluid and filter refresh, fresh fixings are highly recommended for a trouble-free result.

• OE quality fixing - precise fit on ZF 6HP19Z 6-speed auto pans
• Correct specification: M6 x 28.5 Torx pan screw
• Ideal for ATF service, filter pan replacement and leak repair
• Quantity required for a complete pan: 24 screws
• BMW part number: 24159896928

When to use this screw

• During fluid and filter changes to ensure consistent clamping force
• When the existing hardware is corroded, rounded or missing
• Any time the transmission sump is removed for maintenance

Compatibility - vehicles with ZF 6HP19Z auto

1 Series

• 1 E81 (02/2006 - 12/2011)
• 1 E87 (02/2003 - 02/2007)
• 1 E87 LCI (01/2006 - 06/2011)
• 1 E88 (11/2006 - 10/2013)
• 1 E82 (11/2006 - 10/2013)

Also seen on the following as retrofit or specific variants - confirm by VIN:

• 1 F20 (11/2011 - 02/2015)
• 1 F20 LCI (06/2014 - 06/2019)
• 1 F21 (12/2011 - 02/2015)
• 1 F21 LCI (07/2014 - 06/2019)
• 2 F22 (10/2012 - 06/2017)
• 2 F22 LCI (09/2016 - 12/2019)
• 2 F87 M2 (11/2014 - 06/2017)
• 2 F87 M2 LCI (09/2016 - 12/2019)
• 2 F23 (03/2014 - 06/2017)
• 2 F23 LCI (10/2016 - 12/2019)

3 Series

• 3 E90 (02/2004 - 09/2008)
• 3 E90 LCI (07/2007 - 12/2011)
• 3 E91 (02/2004 - 08/2008)
• 3 E91 LCI (07/2007 - 05/2012)
• 3 E92 (05/2005 - 02/2010)
• 3 E92 LCI (11/2008 - 06/2013)
• 3 E93 (09/2005 - 02/2010)
• 3 E93 LCI (11/2008 - 10/2013)

5 Series

• 5 E60 (12/2001 - 02/2007)
• 5 E60 LCI (11/2005 - 12/2009)
• 5 E61 (10/2002 - 02/2007)
• 5 E61 LCI (11/2005 - 05/2010)

6 Series

• 6 E63 (02/2004 - 07/2007)
• 6 E63 LCI (04/2006 - 07/2010)
• 6 E64 (03/2004 - 07/2007)
• 6 E64 LCI (04/2006 - 07/2010)

7 Series

• 7 E65 (07/2002 - 07/2008)
• 7 E66 (09/2002 - 07/2008)
• 7 F01 (09/2007 - 06/2012)
• 7 F02 (09/2007 - 06/2012)

X models

• X1 E84 (09/2008 - 06/2015)
• X3 E83 LCI (11/2006 - 08/2010)
• X5 E70 (02/2006 - 03/2010)
• X6 E71 (01/2007 - 03/2010)

Z4

• Z4 E85 (10/2004 - 08/2008)
• Z4 E86 (10/2005 - 08/2008)
• Z4 E89 (01/2008 - 08/2011)

Fitment check before dispatch

We will verify compatibility prior to shipping. Leave your UK registration or the last 7 of your VIN at checkout and we will confirm that 24159896928 is correct for your vehicle with a 6HP19Z.

Fitting and support

Professional installation recommended. MJ Modifications in Warwickshire can supply and fit, and carry out full automatic transmission servicing. Request a quote at info@mjmodifications.co.uk.

Part details

• Manufacturer: BMW
• BMW part number: 24159896928
• Quantity needed for a full pan: 24
• Warranty: 2 years for UK customers and 1 year for international customers when VIN is provided at checkout on compatible vehicles

Why buy from MJ Modifications

We are BMW enthusiasts who supply and fit genuine parts daily. We have used these pan screws on our own cars and customer builds with excellent results. Expect accurate advice, quick dispatch and the right hardware for a clean, leak-free ATF service.

Suggested search terms: BMW auto gearbox pan screw, ZF 6HP19 oil pan screws, M6 x 28.5 Torx bolt, transmission pan hardware, sump pan fixings, OE replacement screw 24159896928, E60 E61 E81 E87 E90 E92 E93 F01 F02 fixing bolt, 130i 335i 535i pan bolts, automatic transmission service bolts, genuine BMW pan fasteners.

Tip: add 24 screws to your basket for a complete pan refit.
