KW Clubsport 2-Way Coilover Kit for BMW F20 F21 F30 F32 (1/3/4 Series) - Height, Rebound & Compression Adjustable - Fits M135i M140i 335i 340i 435i 440i - Inox-Line Stainless - Part No. 352208AX/AY

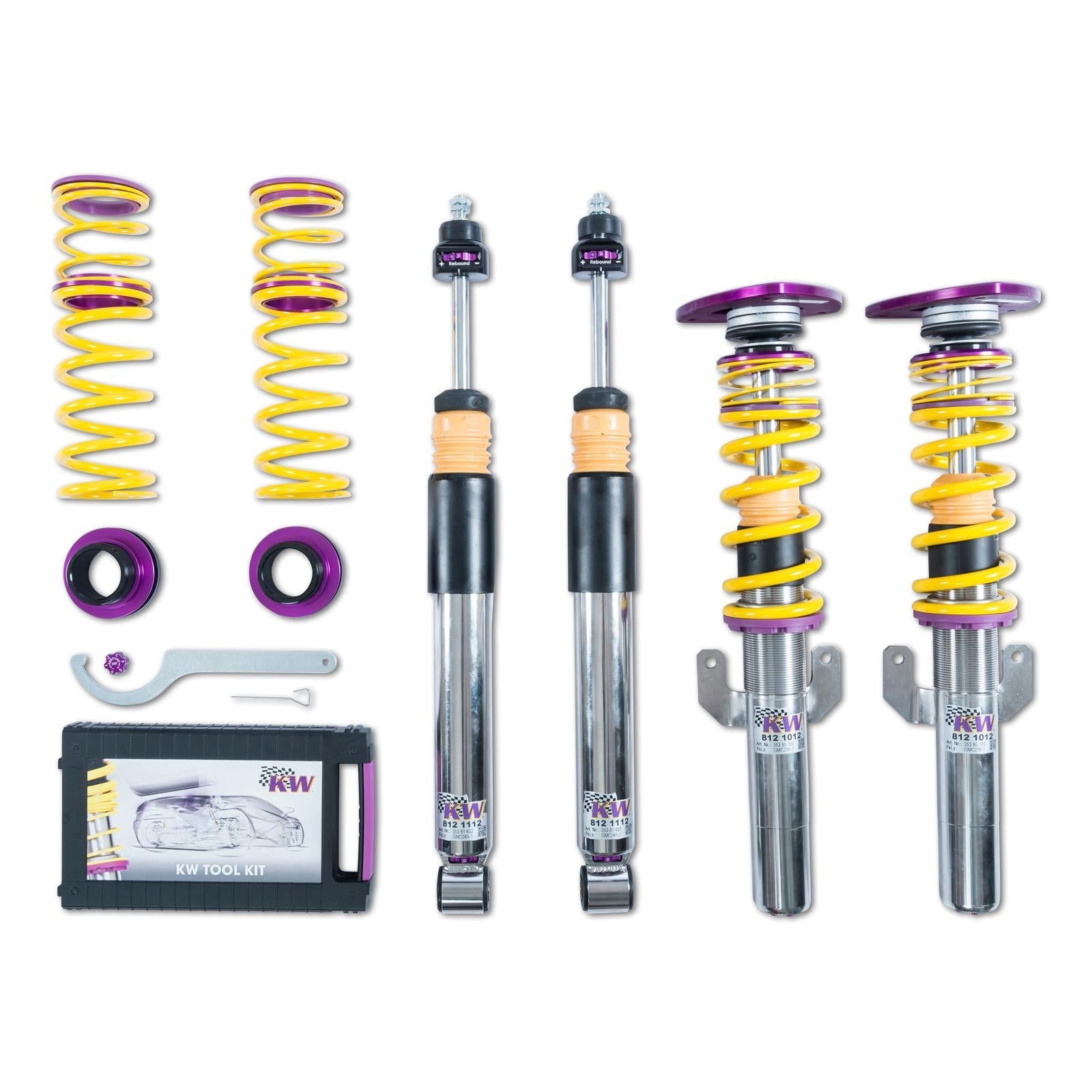

KW Two-Way Clubsport Suspension Kit for BMW F20 F21 F30 F32 - Part No. 352208AX and 352208AY

Transform your F-series BMW with KW’s renowned Clubsport twin-adjustable coil over suspension. Built for fast road and track day use, this premium spring and damper package gives precise control over both rebound and compression, ride height adjustability and long-term durability thanks to Inox-Line stainless construction. Developed on the Nürburgring for repeatable performance and razor-sharp handling, it is a proven upgrade for drivers who want more grip, improved turn-in and confidence at speed without sacrificing quality.

We have installed and set up this kit on customer cars and our own demonstrators at MJ Modifications. Feedback is consistently glowing: tighter body control, better tyre contact, stronger traction out of bends and a huge uplift in steering feel on spirited B-roads and circuits alike. If you are chasing a serious suspension upgrade for your BMW F20, F21, F30 or F32 platform, this is the choice for enthusiasts of M135i, M140i, 335i, 340i, 435i and 440i models.

Highlights

• Double adjustable dampers - separate rebound and low-speed compression tuning
• 16-click rebound for support, stability and ride control
• 12-click compression for front-end bite, traction and balance
• Ride height adjustable for stance, corner balance and lower centre of gravity
• Inox-Line stainless damper bodies for corrosion resistance and longevity
• Nordschleife-tested valving for real-world pace and consistency
• Optional aluminium camber adjustable front top mounts on select applications

What you gain

• Sharper response and reduced roll for quicker direction changes
• Confident braking stability and improved mid-corner control
• Fine-tuning to suit tyres, road surface and driving style
• Track-ready performance with road usability

Lowering range

• Front: 38 to 63 mm
• Rear: 30 to 58 mm

Maximum axle loads

• Front: 1090 kg
• Rear: 1230 kg

Fitment notes

• Height adjustment front and rear. Front uses threaded strut housings. Rear uses an adjustable spring perch with matched dampers
• Vehicles with factory electronic damping require the OE system to be deactivated. KW cancellation modules available separately
• Adjuster wheels supplied. Rebound access depends on access to the top of the piston rod on the vehicle
• Top mount option is front axle only where applicable
• Only for cars with 5-hole front top mount pattern
• Wheel spacers may be required with some OE wheel and tyre combinations

Vehicle compatibility

• BMW 1 Series F20 07/2010 to 02/2015
  • 114d, 116d, 116i, 118d, 118i, 120d, 120i, 125d, 125i, M135i, M140i
• BMW 1 Series F20 LCI 05/2014 to 06/2019
  • 114d, 116d, 116i, 118d, 118i, 120d, 120i, 125d, 125i, M135i, M140i
• BMW 1 Series F21 07/2010 to 02/2015
  • 114d, 114i, 116d, 116i, 118d, 118i, 120d, 120i, 125d, 125i, M135i, M140i
• BMW 1 Series F21 LCI 05/2014 to 06/2019
  • 114d, 116d, 116i, 118d, 118i, 120d, 120i, 125d, 125i, M135i, M140i
• BMW 3 Series F30 02/2011 to 07/2015
  • 316d, 316i, 318d, 318i, 320d, 320i, 325d, 328i, 330d, 330i, 335i
• BMW 3 Series F30 LCI 09/2014 to 10/2018
  • 316d, 316i, 318d, 318i, 320d, 320i, 325d, 328i, 330d, 330i, 335i, 340i
• BMW 4 Series F32 11/2012 to 06/2016
  • 418d, 418i, 420d, 420i, 425d, 428i, 430d, 430i, 435i, 440i
• BMW 4 Series F32 LCI 11/2012 to 06/2016
  • 418d, 418i, 420d, 420i, 425d, 428i, 430d, 430i, 435i, 440i

Part numbers

• 352208AX - for cars without electronic damper control
• 352208AY - for cars with electronic damper control

Installation and setup

To get the most from this KW setup, professional fitting, corner-weighting and a geometry session are strongly recommended. MJ Modifications in Warwickshire offers installation, alignment and track-focused setup. Request a quote at info@mjmodifications.co.uk.

Manufacturer and warranty

• Manufactured by KW
• 2-year KW warranty as standard. 5-year warranty when installed by a KW approved installer
