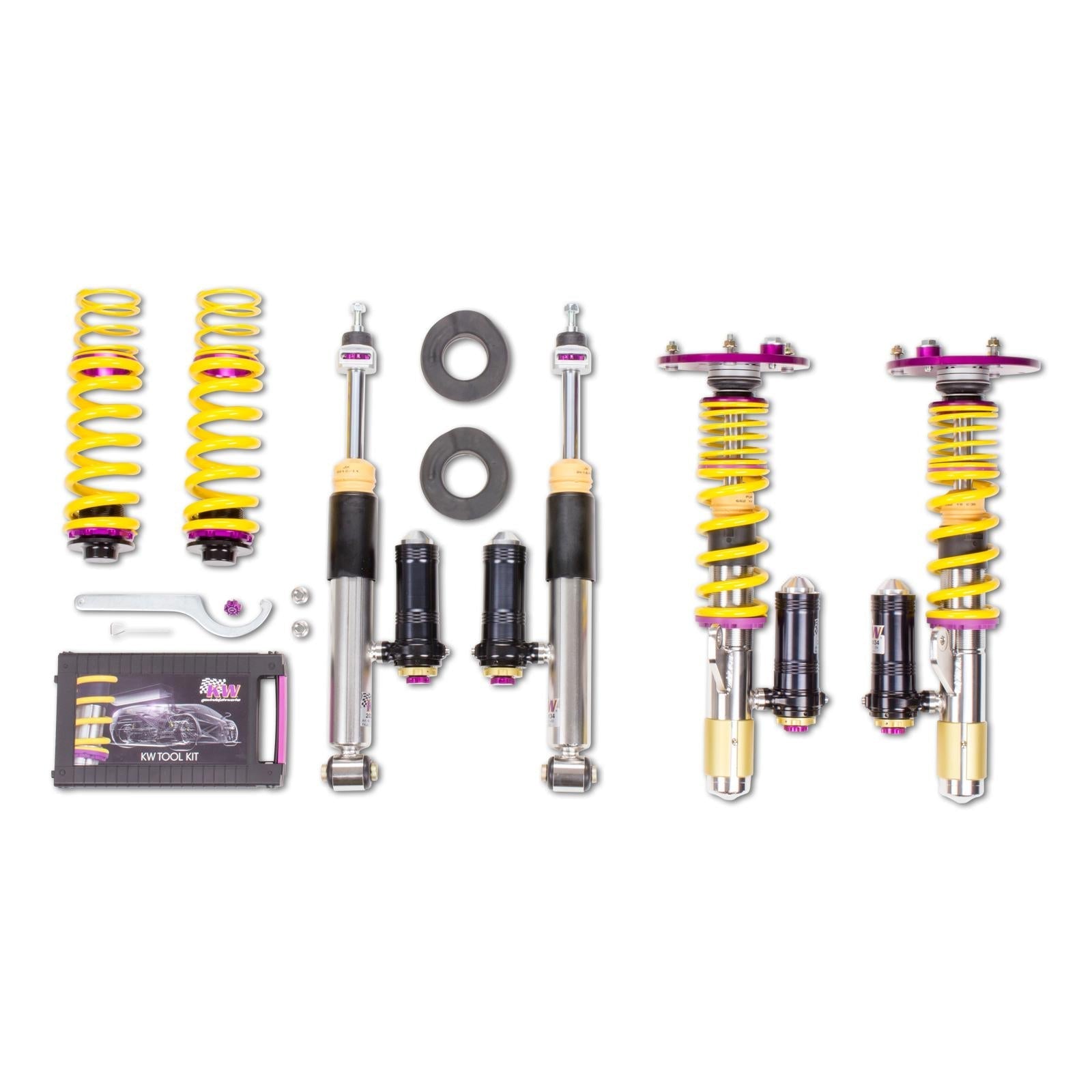

KW Clubsport 3-Way Coilover Kit for BMW F20 F21 F30 F32 (1 Series, 3 Series, 4 Series) - Height Adjustable Inox-Line - Fits M135i M140i 335i 340i 435i 440i - Track & Fast Road Suspension

KW Clubsport 3-way tri-adjustable suspension for BMW F20 F21 F30 F32 platforms delivers serious pace on circuit and composure on the road. Built with stainless Inox-Line damper bodies and remote reservoirs, this motorsport-derived damper and spring package gives you precise control, exceptional stability and repeatable performance for track days, fast road and time attack use. Ideal for M135i, M140i, 335i, 340i, 435i and 440i owners chasing lap time and confidence-inspiring handling.

Developed at the Nürburgring Nordschleife and using technology proven in 24-hour racing, this premium BMW adjustable damper kit combines ride-height adjustment with independent rebound and two-stage compression tuning. The result is razor-sharp turn-in, strong body control and excellent traction out of slower corners while still being compliant enough for daily use.

Why this kit is a standout

• 3-way damping control for proper chassis tuning - separate rebound, low-speed compression and high-speed compression
• Inox-Line stainless construction for long-term corrosion resistance in UK weather
• Continuous ride height adjustment front and rear for the perfect stance and corner-weight setup
• Remote reservoirs maintain consistent damping during long stints and hot conditions
• TÜV-tested adjustment window for real-world drivability
• High-quality hardware for durability and reliability
• Optional aluminium spherical bearing top mounts on selected applications

Adjustment range

• Low-speed compression: 6 clicks on the purple adjuster
• High-speed compression: 14 clicks on the gold adjuster
• Rebound: 16 clicks for clear, repeatable changes

Dial in support for kerbs, bumps and aero load, then back it off for road trips. It is that flexible.

Lowering range

• Front: 38 to 63 mm
• Rear: 30 to 58 mm

Axle load rating

• Front: 1090 kg
• Rear: 1230 kg

Vehicle fitment

BMW F-series chassis coverage across 1 Series, 3 Series and 4 Series:

• F20 1 Series hatchback (07/2010 - 02/2015): 114d, 116d, 116i, 118d, 118i, 120d, 120i, 125d, 125i, M135i, M140i
• F20 LCI 1 Series (05/2014 - 06/2019): 114d, 116d, 116i, 118d, 118i, 120d, 120i, 125d, 125i, M135i, M140i
• F21 1 Series 3-door (07/2010 - 02/2015): 114d, 114i, 116d, 116i, 118d, 118i, 120d, 120i, 125d, 125i, M135i, M140i
• F21 LCI 1 Series (05/2014 - 06/2019): 114d, 116d, 116i, 118d, 118i, 120d, 120i, 125d, 125i, M135i, M140i
• F30 3 Series saloon (02/2011 - 07/2015): 316d, 316i, 318d, 318i, 320d, 320i, 325d, 328i, 330d, 330i, 335i
• F30 LCI 3 Series (09/2014 - 10/2018): 316d, 316i, 318d, 318i, 320d, 320i, 325d, 328i, 330d, 330i, 335i, 340i
• F32 4 Series coupé (11/2012 - 06/2016): 418d, 418i, 420d, 420i, 425d, 428i, 430d, 430i, 435i, 440i
• F32 LCI 4 Series (11/2012 - 06/2016): 418d, 418i, 420d, 420i, 425d, 428i, 430d, 430i, 435i, 440i

Notes

• Front and rear height adjustable - threaded front strut housings with matched adjustable rear springs and dampers
• Cars with electronic damper control require deactivation. Electronic damper delete kits are available
• Damping is adjusted via integrated adjusters. Rebound access depends on vehicle construction and may require access to the top of the piston rod
• Clubsport kit with top mounts is front top mount only where applicable
• Only suitable for vehicles with 5-hole front top mount pattern
• With OE tyres and wheels, spacers may be required

Part numbers

• 397202AX - for cars without electronic damper control
• 397202AY - for cars with electronic damper control

Real-world results from MJ Modifications

We run this setup on our own builds and have fitted it for many customers. Feedback is consistently positive: noticeably flatter cornering, stronger braking stability, better traction off hairpins and a broader window of grip in changing conditions. If you want the best blend of circuit speed and road refinement for your F-series BMW, this is the one.

Professional fitting and setup

For optimum performance, have your suspension installed and aligned by specialists. MJ Modifications in Warwickshire offers fitting, geometry and setup tailored to your tyres and use case. Request a quote at info@mjmodifications.co.uk.

Manufacturer and warranty

Made by KW. Supplied with a 2-year KW warranty that can be extended to 5 years when fitted by a KW approved installer.
