Lazer Lamps Linear-18 Elite LED Light Bar - Slim 40mm 532mm (21") Driving Light/Spot - 12,150 lm 5000K - ECE R112 E-Marked Road Legal - 12/24V - Auxiliary High Beam for 4x4 SUV Van Car - UK Made

Lazer Lamps Linear-18 Elite LED Light Bar - Slim 40mm 532mm (21") Driving Light/Spot - 12,150 lm 5000K - ECE R112 E-Marked Road Legal - 12/24V - Auxiliary High Beam for 4x4 SUV Van Car - UK Made

£528.00
£528.00 £528.00
Sale Sold out
Shipping calculated at checkout.
Wiring Kit
CAN Interface
CAN Contactless Reader

Heads-up on cancellations & returns: if you cancel an order or return an item, you won't get back 100% of what you paid. We apply a 10% restocking fee, the outbound shipping is non-refundable, and we have to pass on Shopify / PayPal payment processing fees; these aren't returned to us when we refund you. International orders also lose on exchange-rate spread in both directions. If the original packaging is damaged or missing, a reboxing charge applies. For international orders specifically, if you refuse to pay our shipping invoice or supply a prepaid label after placing the order, the same deductions apply. We're upfront about this — please be sure of your purchase before ordering.

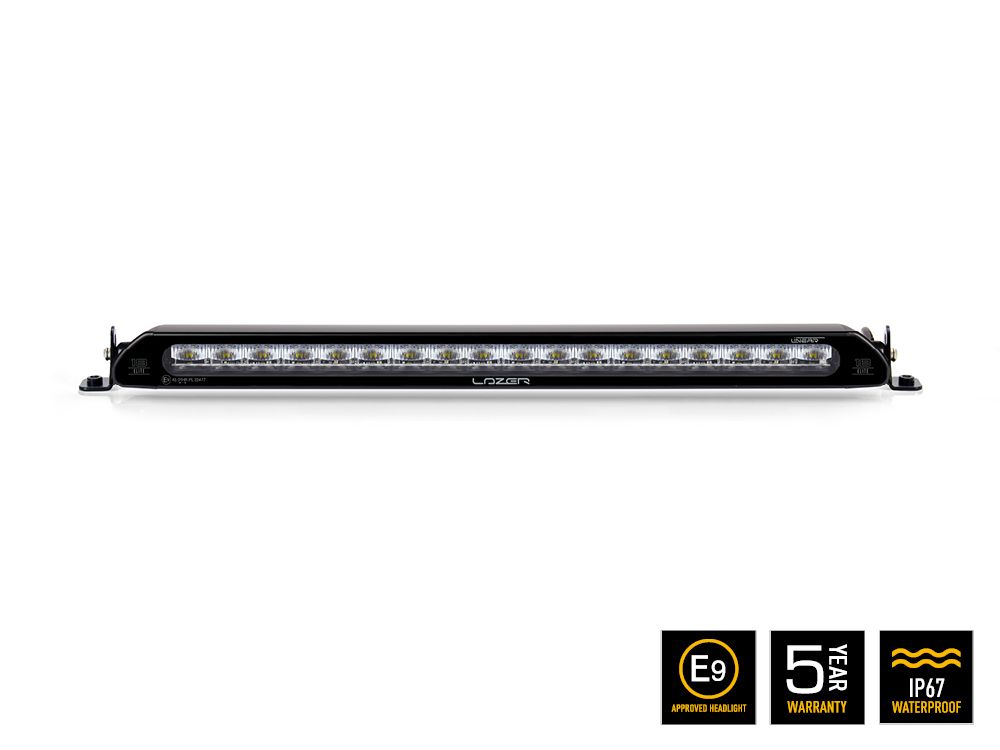

Linear-18 Elite LED Driving Bar, ultra-slim 4 cm profile, UK built and ECE compliant

Light up dark lanes and country roads with the Linear-18 Elite from Lazer Lamps. This low height, 53.2 cm wide auxiliary driving bar packs serious punch with a crisp 5000 Kelvin daylight-white output and a road-tuned beam that reaches far down the carriageway while spreading usable light across the verge. Sleek, quiet and aerodynamic, it looks OEM-plus on performance cars, SUVs, pick-ups and vans, and it is fully street legal under ECE R112 for use as an additional main beam.

We run this on our own builds and customer vehicles. Feedback is consistently glowing, with drivers praising the long-range visibility, confident width without bonnet glare and the discreet install that does not shout for attention. If you are after a bright, legal upgrade that simply works, this is it.

Top reasons to choose the Linear-18 Elite

  • Elite specification output, roughly double the light of the standard Linear version
  • Just 40 mm tall for stealth grille, bumper or roof-rack installs
  • Advanced optics deliver a balanced, road-optimised pattern with excellent reach and width
  • Designed and manufactured in Britain with a 5 year warranty
  • ECE R112 approved auxiliary main beam, ECE Ref 45 marking, genuinely road legal
  • Streamlined housing helps minimise wind noise on roof applications
  • Universal solution for cars, 4x4, SUV, van and utility builds

Performance you can rely on

The Linear-18 Elite uses 36 high-efficiency 3 W LEDs and precision lenses to put light exactly where you need it. Expect a smooth, even spread with a long throw down the road, reduced foreground glare and no distracting reflection when positioned correctly. Perfect for rural driving, B-road blasts and winter commutes where a high output, legal auxiliary main beam is a must.

Key technical details

  • Total light output: 12,150 lumens
  • Effective driver field-of-view: 8,651 lumens
  • Colour temperature: 5000 K for high contrast in rain, fog and mist
  • LED count and life: 36 diodes, 50,000 hour lifespan
  • Multi-voltage electronics: 10 to 32 V DC, suitable for 12 V and 24 V systems
  • Power draw: 126 W, current at 14.4 V approximately 8.8 A
  • Instant on: 100 ms start-up
  • Measured reach: 975 m at 0.25 lx, 690 m at 0.5 lx, 488 m at 1 lx, 282 m at 3 lx
  • Horizontal spread: 64 degrees
  • Legality: ECE R112 approved, ECE Reference 45
  • Dimensions: 532 mm wide, 62 mm deep, 40 mm high
  • Weight: 1,090 g
  • Warranty: 5 years, made in the UK

Mounting and compatibility

Universal fit for grille, bumper or roof mounting. The slimline aluminium body integrates cleanly on modern vehicles, while the controlled vertical spread helps avoid bonnet reflection. Ideal for hot hatches, estates, crossovers, 4x4s and working vehicles.

Options and accessories

Prefer automation or styling add-ons? The Linear-18 Elite range includes variants with Intelligent Low Beam Assist for automatic main beam integration and versions with an integrated position light. Wiring looms, CAN interface solutions and contactless readers are available separately for neat integration on modern vehicles.

What you receive

  • 1 x Linear-18 Elite LED lamp
  • 1 x Anti-theft side bracket set, part 1127k
  • Fitting guide
  • Optional extras available: Lazer wiring kit low power 12 V, CAN interface dual output, CAN contactless reader

Professional fitting available

Want it installed perfectly first time? Book expert installation with MJ Modifications in Warwickshire. Email info@mjmodifications.co.uk for a fitting quote and advice on wiring, switching and OEM control integration.

Part number

0L18-EL-LNR
