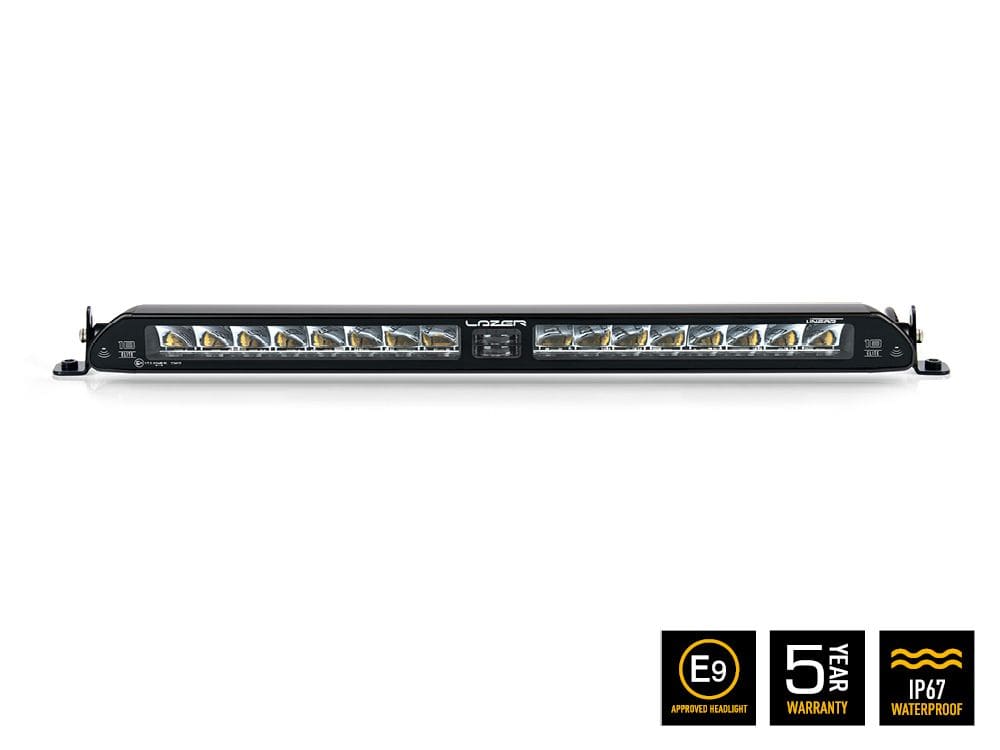

Lazer Lamps Linear-18 Elite i-LBA Slimline LED Driving Light Bar - Intelligent Low Beam Assist, 18,000 lm, Road Legal ECE R112 High Beam, 5000K, IP67, 12/24V, UK Made

Lazer Lamps Linear-18 Elite with i-LBA - Low Profile Auxiliary LED Bar

Transform your night driving with the Linear-18 Elite i-LBA from Lazer Lamps. This sleek auxiliary LED bar packs serious punch in a compact, low-profile housing and is engineered for cars, 4x4s, pickups, vans and commercial builds. With 48 premium LEDs delivering up to 18,000 raw lumens in E-Boost and a crisp 5000 K daylight-white output, you get outstanding reach, width and clarity. It is UNECE R112 compliant for main beam use in E-Mark mode, IP67 weather sealed and designed and built in the UK for long-term reliability.

Intelligent Low Beam Assist (i-LBA) takes the strain out of night driving. Photoelectric sensors continually read the road scene, easing output at the edges when you dip your headlights to reduce glare for other traffic while maintaining the short and mid-range light you actually need. The result is calmer, safer visibility with smooth transitions between full and dipped settings.

We run this light on our own vehicles and our customers rave about the clean white output, huge spread and robust construction. If you want a premium lighting upgrade with smart control and a discreet fit, this is the one.

Part number: 0L18-LBA-B

---

Why this LED bar is a brilliant upgrade

• Ultra-slim auxiliary lamp for grille, bumper or roof installs on car, SUV, 4x4, pickup, van and truck
• i-LBA intelligent dipped-beam assist for clever light management without dazzling other road users
• Up to 18,000 lm in E-Boost for off-road or where permitted, with E-Mark mode for road use
• Natural 5000 K colour for crisp contrast, improved sign reflection and reduced eye strain
• Vacuum-metallised optics for superb lateral spread with controlled vertical spill
• IP67 waterproofing, reverse polarity and over-voltage protection
• Hardcoated polycarbonate lens with Lifetime Lens Guarantee
• 5-year warranty and British engineering you can trust
• Supplied with anti-theft side brackets and dedicated i-LBA single-lamp loom

---

Performance snapshot

• 1 lux at 522 m with a broad 64 degree horizontal beam
• Massive near to mid-field illumination for confident country lane and motorway driving
• i-LBA sensors constantly monitor the scene to modulate output on dipped beam
• Dual output technology - E-Boost for maximum punch off-road, E-Mark for compliant on-road use

Note: i-LBA enhances dipped-beam transitions. It is not a homologated low beam. Use E-Boost only off-road or where local regulations allow.

---

Features

• 48 high-efficiency LEDs rated for 50,000 hours
• Low Beam Assist mode preserves close-range light while reducing glare to the sides
• Photoelectric sensing detects oncoming vehicles and reflective hazards
• 80 CRI, 5000 K colour for definition and depth perception
• Slimline body for discreet installs and easy packaging on modern vehicles
• Single-lamp i-LBA wiring kit included with secondary switch to disable assist if required
• Anti-theft side mounts with flexible positioning
• Advanced thermal management for consistent output
• Anodised pre-treatment and automotive-grade powder coat for corrosion resistance
• Reverse polarity and over-voltage protected electronics
• Virtually unbreakable, hardcoated polycarbonate lens
• UNECE R112 Class B main-beam approval in E-Mark mode and UNECE R10 compliance
• IP67 ingress protection
• 5-year warranty and Lifetime Lens Guarantee
• 4-pin Deutsch connector
• UK designed and manufactured

---

Specifications

Voltage range	10 to 32 V DC
LED life	50,000 hours
Weight	1.1 kg
Main beam function
Total luminous flux	18,000 lm E-Boost, 5,538 lm E-Mark
Total driver FOV flux	12,816 lm E-Boost, 3,943 lm E-Mark
Colour temperature	5000 K
Number of LEDs	48
Power consumption	135 W E-Boost, 43 W E-Mark
Current draw at 14.4 V	10.4 A E-Boost, 3.2 A E-Mark
Start-up time	100 ms
Certification
Main beam	UNECE R112 in E-Mark mode
E-Mark reference	17.5
Photometric data
Horizontal beam angle	64 degrees
0.25 lx line	1,043 m
0.5 lx line	738 m
1 lx line	522 m
3 lx line	301 m

Start-up time is the delay from power to light emission. If mixing products on the same vehicle, choose lamps with similar start-up times for a uniform experience.

---

What you get

• 1 x Linear-18 Elite with i-LBA LED lamp
• 1 x Anti-theft side mount kit (1127k)
• 1 x Single-lamp Low Beam Assist wiring kit (1L-LP-LBA-150)
• Installation instructions
• Optional: Low Power 12 V wiring kit
• Optional: Lazer CAN Interface Dual Output
• Optional: Lazer CAN Contactless Reader

---

Fitment and compatibility

Universal installation for passenger cars, SUVs, 4x4s, pickups, vans and light trucks. The slim form factor suits grille mounting, lower bumper positions and roof bars. Works on 12 V and 24 V systems and integrates neatly with CAN solutions using the optional interfaces.

---

Professional installation

Want this lighting system supplied and fitted by specialists? Choose MJ Modifications in Warwickshire. Email info@mjmodifications.co.uk for a tailored quote, wiring guidance, CAN integration advice and clean mounting solutions.

---
