Mr12Volt P2000-2G20MD for Audi A5 8T and A4 B8 MMI 2G High - Wireless iPhone and Android Integration with 15-band DSP on MOST

Transform your cabin with a premium smartphone integration kit that keeps everything looking factory and sounding outstanding. The Mr12Volt P2000-2G20MD plugs into the Audi fibre optic network for clean, high fidelity audio and adds wire-free iPhone and Android connectivity, Bluetooth hands-free, high resolution USB media playback and a powerful 15-band digital equaliser. It is the neat, OEM-style upgrade UK Audi owners want for everyday navigation, music, calls and messaging using the original screen and controls.

We have fitted this unit ourselves on customer cars and in our own vehicles. Feedback has been consistently excellent on reliability, audio quality over MOST and the ease of use. If you are tired of clunky mounts and FM transmitters, this is the right way to bring modern apps to your A5 or A4 while keeping the stock look.

Key highlights

• Part number: P2000-2G20MD from the Mr12Volt P2000 MD series
• Designed for Audi MMI 2G High with fibre optic MOST connection for superior sound
• Wireless and wired support for Apple iPhone and Google Android phone projection
• Bluetooth hands-free calling and A2DP music streaming
• USB video and audio playback up to 1080p
• 15-band DSP equaliser for detailed sound shaping
• Inputs for reverse, front and side cameras, supports aftermarket AHD720 cameras
• Apple Lossless ALAC support for true lossless playback
• Wireless MirrorLink phone mirroring

Why owners choose this upgrade

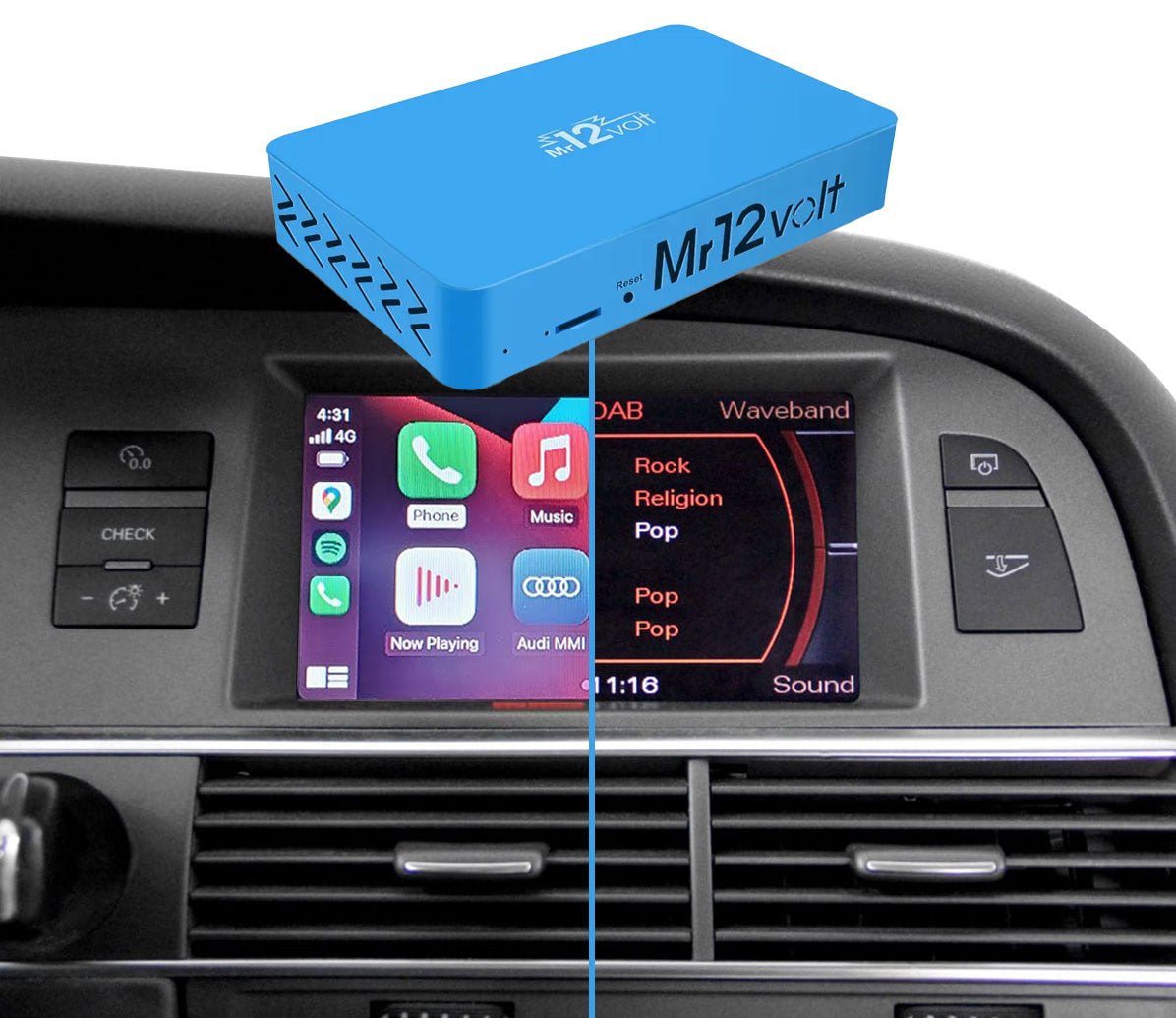

• Factory-look operation through the existing display, MMI controls and steering buttons
• Use favourite apps like Google Maps, Apple Maps, Waze, Spotify and WhatsApp on the move
• Clean audio via the MOST bus instead of noisy analogue feeds
• Tailor your sound with a granular 15-band EQ and high quality DAC
• Add camera views for easier parking and safer manoeuvres
• No coding required and the original CD changer can remain in use

Vehicle compatibility

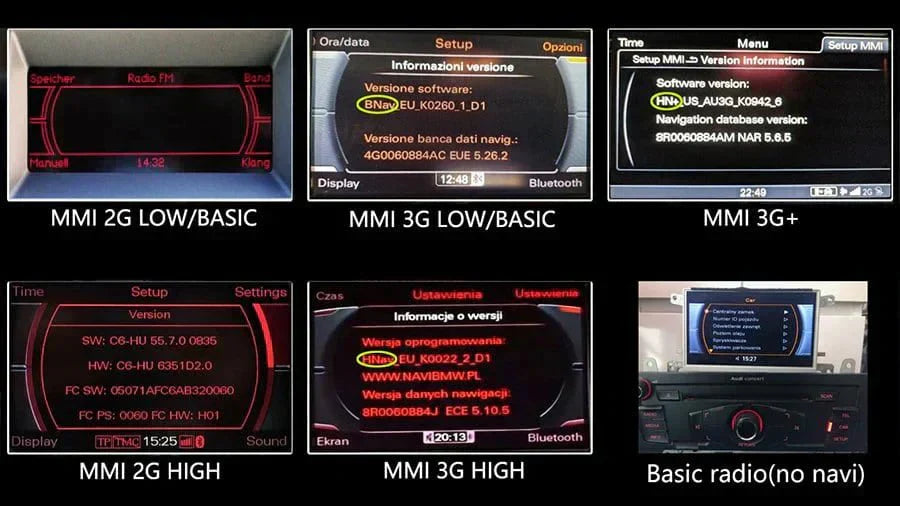

For Audi MMI 2G High only. Not suitable for 2G Basic or Low systems with the red and black display.

• Audi A4 B8 8K 2007 to 2008
• Audi A5 8T 8K 2008 to 2009

How it integrates with your Audi

• Select the interface via the Media button. Audio routes through the CD changer channel
• No coding needed and the original changer can be retained
• Supports reverse, front, left or right camera inputs up to AHD720
• Use the supplied microphone for Siri and Google Assistant voice commands. OEM microphones are not integrated
• You can pair Audi MMI Bluetooth and the Mr12Volt Bluetooth at the same time. MMI HF takes over for incoming calls

Audio performance and DSP

• MOST fibre optic integration for clean, high resolution sound
• 15-band DSP equaliser for precise tuning and system matching
• 18-bit DAC resolution
• Signal to noise ratio 95 dB, THD 0.1 percent, frequency response 20 Hz to 20 kHz
• Apple Lossless ALAC streaming support for audiophile-grade playback

USB media playback

High performance video and audio codec support up to 1080p 30 fps

• Video formats including mkv, mp4, avi, wmv, rmvb, rm, mpg, mpeg, ts, dat, asf, flv, vob and more
• Audio formats including MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR and more
• Codec support covers H.264, VC-1, MPEG-1 and 2, MPEG-4 SP and ASP, RealVideo, VP6 to VP8, DivX and H.263
• JPEG Baseline interleaved up to 8176 x 8176

Technical data

• Operating temperature: minus 20 to plus 80 degrees centigrade
• Voltage: 10 to 14.6 V DC
• Operating current: 450 mA, up to 700 mA when charging a mobile phone
• DAC resolution: 18-bit
• Signal to noise ratio: 95 dB
• Total harmonic distortion: 0.1 percent
• Frequency response: 20 Hz to 20 kHz

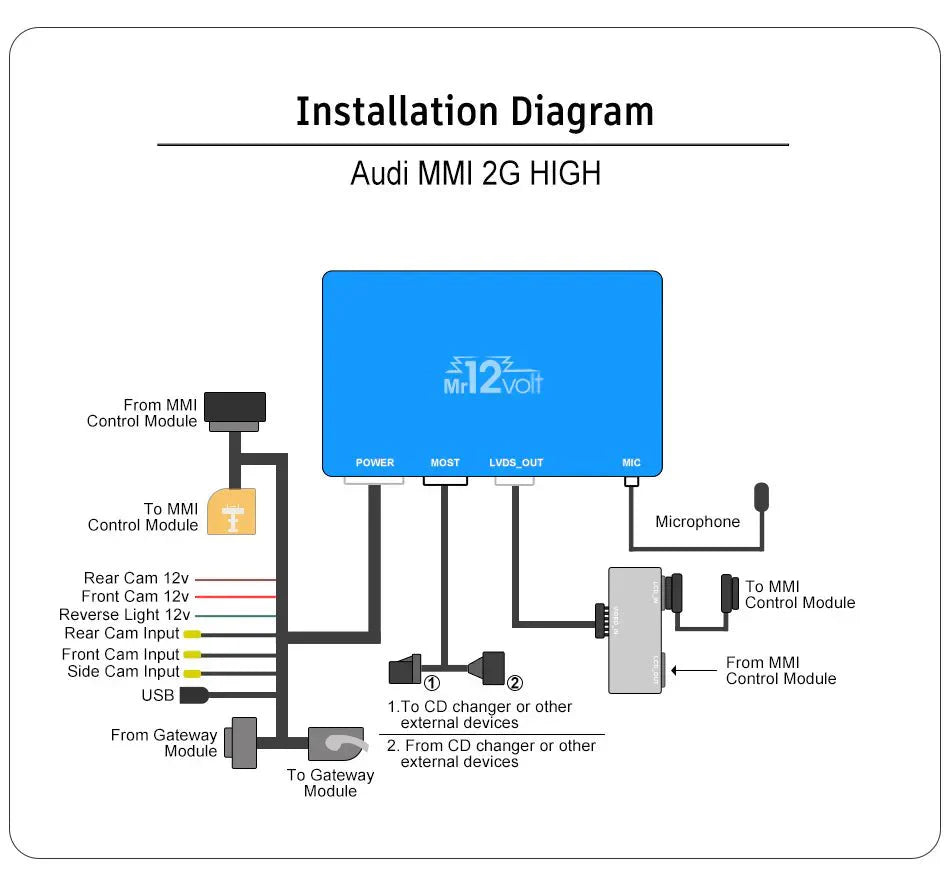

Installation and fitting

Plug and play integration through the MMI 2G High Media and CD changer channel with no coding required. For the cleanest install and camera integration we recommend professional fitting. MJ Modifications offers expert installation in Warwickshire. Request a fitting quote at info@mjmodifications.co.uk.

Video

Helpful link

How to mirror to P2000 from phone
