Mr12Volt P2000 LIGHTS 2G26ML Audi A6 A8 Q7 MMI 2G High CarPlay & Android Auto Interface (2004-2009) - Wireless/Wired, Plug & Play MOST, Bluetooth, USB, Camera Support

Part Number: P2000 LIGHTS 2G26ML

Premium smartphone integration for Audi MMI 2G High - A6, A8, Q7

Bring modern phone connectivity into your Audi with the Mr12Volt P2000 LIGHTS 2G26ML. This plug-in upgrade adds wireless and wired Apple iPhone integration and Android smartphone linking to MMI 2G High models, using the factory MOST fibre optic network for outstanding audio clarity and a true OEM-style experience. Keep your original screen, controls and look while unlocking navigation apps, music services, calls and messages with voice control through Siri or Google Assistant.

The latest LIGHTS edition includes an internal Bluetooth and Wi-Fi antenna and a tidy one-side connector layout to simplify installation. We have fitted this kit for many Audi owners and feedback has been superb: crisp sound via the optical bus, quick wireless connection, smooth operation with MMI buttons and a finish that feels factory.

Why this retrofit stands out

• MOST optical audio path for hi-fi sound quality - no noisy AUX injectors
• Apple iPhone and Google Android connectivity in one box - wireless or USB cable
• Retains the factory MMI 2G High screen with clean LVDS video passthrough
• Works with OEM rotary controller, dashboard keys and steering wheel voice button
• Stream lossless and high bitrate music - Apple Music, Spotify, Deezer, Tidal, podcasts
• True plug and play harness - no coding, no cutting, no new display required
• Built-in Bluetooth for hands free calling HFP and A2DP music streaming
• USB media playback for music and video files
• Multiple camera inputs - reverse with parking lines support on certain variants, plus front and side feeds
• Updatable firmware and 2 year warranty for peace of mind

Compatible vehicles - MMI 2G High only

Designed for Audi models equipped with MMI 2G High:

• Audi A6 2004 to 2009
• Audi A8 2002 to 2009
• Audi Q7 2004 to 2009

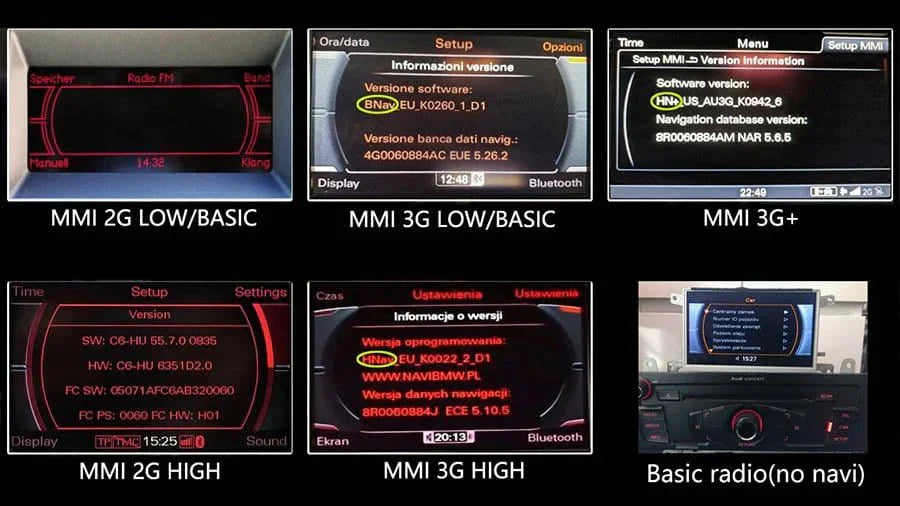

Important: for MMI 2G High systems only. Not suitable for MMI 2G Basic or Low units with the red and black information display.

Feature overview

• Apple CarPlay and Android Auto - both wireless and wired
• Wireless screen mirroring via Miracast
• Bluetooth hands free calling HFP and music streaming A2DP
• USB playback for video and audio
• Reverse camera input with guide lines on certain models, plus front and left or right inputs
• Upgradeable software

Technical information

• Operating temperature: -20 to +80 degrees C
• DAC resolution: 18-bit
• Supported MP3 bitrate: 8 to 384 kbit
• Supply voltage: 10 to 14.6 V DC
• Typical current draw: 450 mA - up to 700 mA while phone charging
• Signal to noise ratio: 95 dB
• Total harmonic distortion: 0.1 percent
• Frequency response: 20 Hz to 20 kHz

Notes

• Supports aftermarket cameras up to AHD720
• Factory microphones are not supported. If your car has OEM Bluetooth you can continue to use it for calls while using CarPlay or Android Auto by pairing your phone to both the factory Bluetooth and the P2000
• Use the supplied microphone for Siri or Google voice commands

Professional fitting

Installation available at MJ Modifications in Warwickshire. For a tailored quote please email info@mjmodifications.co.uk.
