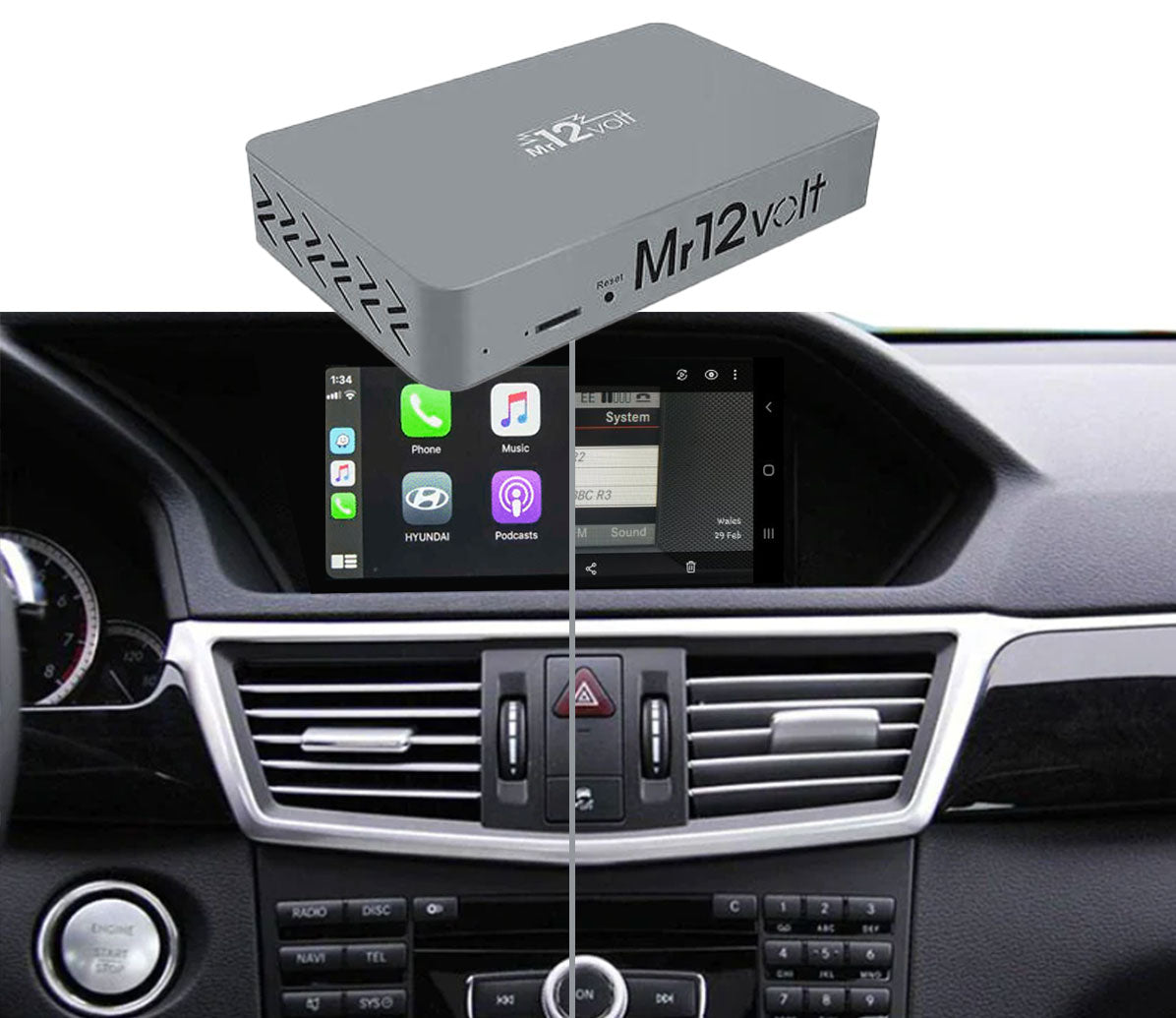

Mr12Volt P2000-NTG35MM Mercedes-Benz CarPlay & Android Auto Retrofit Interface for S-Class W221 & CL W216 COMAND NTG 3.5 MOST Bus 2009-2012 Facelift - Wireless/Wired, High-End Digital Audio, OEM Mic, Harman Kardon Compatible

Smartphone Integration Module for Mercedes S Class W221 and CL C216 NTG3.5 Facelift 2009 to 2012

Part number: P2000-NTG35MM

Give your Mercedes a proper modern infotainment upgrade with seamless iPhone and Android connectivity routed over the factory fibre optic network. This P2000-NTG35MM interface feeds pure digital sound via the COMAND TV input on NTG3.5, so you keep rich, high-fidelity audio without the dullness of an AUX workaround. Ideal for cars with Harman Kardon or the OEM premium sound package. No dealer tools. No compromise. Factory-style control and a clean install.

We use this kit ourselves and fit it for customers. The integration is smooth, the sound quality is outstanding and reliability has been excellent. Feedback has been consistently positive from S Class and CL owners who wanted modern apps without losing the OEM look.

Key reasons to choose this kit

• MOST fibre optic integration for true digital audio - no AUX downgrade
• Wireless or USB-connected Apple CarPlay and Android Auto for maps, music and messages
• Built-in TV menu activation - no coding required to enable the TV function
• Works with the original microphone for clear voice calls and voice assistants
• Supports the factory reverse camera and lets you add front, rear and blind-spot cameras up to AHD720
• Bluetooth hands-free and music streaming - OEM Bluetooth and module Bluetooth can be paired at the same time, with MB handling incoming calls
• USB media playback with wide video and audio codec support
• Apple Lossless ALAC streaming support for audiophiles
• Highly tunable 15-band DSP equaliser to tailor sound to your cabin
• MirrorLink wireless screen mirroring for compatible phones

Vehicle compatibility

For Mercedes with COMAND NTG3.5 facelift:

• W221 S Class - model years 2009, 2010, 2011, 2012 facelift
• W216 CL Class - model years 2009, 2010, 2011, 2012 facelift

If a factory TV tuner is fitted, it must be disabled and bypassed with a loop connector.

Operation

• Select the interface via the COMAND TV function on NTG3.5
• No coding tools needed - press Disc/Radio and Return together for 5 seconds to reveal the TV menu
• OEM microphone integration supported for calls and voice control
• Supports aftermarket cameras up to AHD720 resolution
• Mercedes and module Bluetooth can be connected simultaneously - MB takes over for incoming calls

Supported media formats

Video:

• H.264 Baseline and Main High Profile, Level 1 to 4.2, up to 1080p 30 fps
• VC-1 Simple/Main, Advanced Profile levels 0 to 3, up to 1080p 30 fps
• MPEG1/2/4 Simple and Main Profiles, ASP levels 0 to 5, up to 1080p 30 fps
• RealVideo 8, 9, 10 up to 1080p 30 fps
• VP6, VP7, VP8 including WebM up to 1080p 30 fps
• DivX 3, 4, 5, 6 up to 1080p 30 fps
• H.263 Profile 0 levels 10 to 70 up to 720×576 30 fps
• JPEG Baseline interleaved up to 8176×8176
• Containers: mkv, mp4, avi, wmv, rmvb, rm, mpg, mpeg, ts, dat, asf, flv, vob and more

Audio: MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR and more

Technical specifications

• Operating temperature: -20 to +80 °C
• DAC resolution: 18-bit
• MP3 bitrate: 8 to 384 kbit
• Voltage: 10 to 14.6 V DC
• Operating current: 450 mA - 700 mA when charging a phone
• Signal to noise ratio: 95 dB
• Total harmonic distortion: 0.1%
• Frequency response: 20 Hz to 20 kHz

Professional installation

Want it fitted properly with hidden wiring and a factory finish? Book installation with MJ Modifications in Warwickshire. Request a quote: info@mjmodifications.co.uk.

Downloads and help

User Guide for NTG3.5

Phone mirroring how-to
