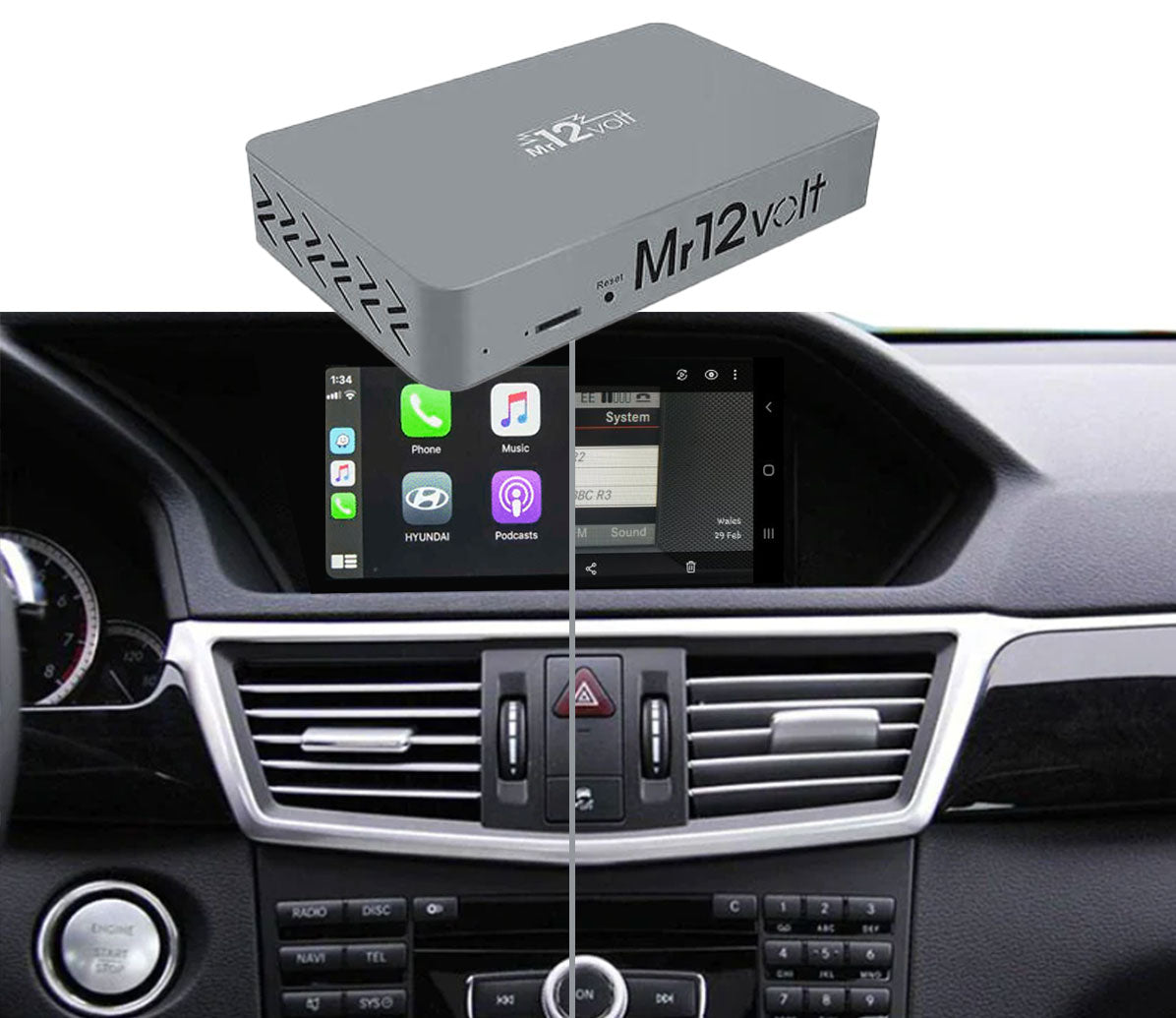

Mr12Volt P2000-NTG30MM Mercedes S-Class W221 & CL C216 (W216) COMAND NTG 3.0/NTG3 Apple CarPlay & Android Auto Retrofit Kit – Wireless/Wired MOST Fibre Optic Interface & Bluetooth, Harman Kardon Compatible – 2006–2008 Pre-Facelift UK

Premium smartphone integration for Mercedes S-Class W221 and CL C216 with COMAND 3.0

Part number: P2000-NTG30MM

Transform your pre-facelift 2006 to 2008 Mercedes into a modern connected cockpit with the Mr12Volt P2000-NTG30MM. This plug-in multimedia interface adds wireless and USB-tethered Apple CarPlay and Android Auto to COMAND NTG 3.0 via the car's fibre optic MOST network, delivering a clean digital signal through the OEM TV input for outstanding audio clarity. No coding tools, no AUX downgrade and no compromise on sound. It works superbly with Harman Kardon and other factory amplified systems.

We have installed this kit in-house at MJ Modifications and it has been a customer favourite. Rock-solid performance, factory-style operation and superb sound quality make it the go-to W221 and W216 connectivity upgrade in the UK.

Main benefits

• MOST fibre optic integration with true digital audio through the OEM TV path for high-end sound
• No dealer coding required thanks to the built-in TV enabling function
• Wireless and wired iPhone and Android connectivity for navigation, music, calls and messages
• Uses the factory microphone for clean hands-free calls where supported
• Retains and supports the original reverse camera and allows additional front, rear and blind spot cameras up to AHD720
• Wireless screen mirroring for video and apps
• Bluetooth hands-free and streaming with Apple Lossless playback support
• USB media playback up to 1080p for video and high quality audio files
• Built-in 15-band DSP equaliser for precise sound tuning
• Dual Bluetooth mode available so MB handles calls while Mr12Volt manages media for an OEM-like experience

Vehicle compatibility

• Mercedes-Benz S-Class W221 2006 to 2008 pre-facelift with COMAND NTG 3.0
• Mercedes-Benz CL-Class W216 2006 to 2008 pre-facelift with COMAND NTG 3.0

Important: Not suitable for North American vehicles including USA and Canada models.

Operation and installation notes

• Access the interface via the TV source on COMAND NTG 3.0
• No external coding hardware is required. Enable the TV function through the console controls as described in the user guide
• Supports the OEM microphone where applicable
• Accepts aftermarket camera inputs up to AHD720

If your car has a factory TV tuner, it must be disabled and bypassed using a loop connector.

Supported media formats

• Video decoding: H.264 Baseline to High Profile Level 1 to 4.2 up to 1080p 30fps
• VC-1 Simple to Advanced Profile levels 0 to 3 up to 1080p 30fps
• MPEG1, MPEG2, MPEG4 including SP, MP and ASP profiles up to 1080p 30fps
• RealVideo 8, 9, 10 up to 1080p 30fps
• VP6, VP7, VP8 including WebM up to 1080p 30fps
• DivX 3 to 6 up to 1080p 30fps
• H.263 Profile 0 up to 720x576 30fps
• JPEG Baseline interleaved up to 8176x8176
• Containers: mkv, mp4, avi, wmv, rmvb, rm, mpg, mpeg, ts, dat, asf, flv, vob and more
• Audio: MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR and more

Technical specifications

• Operating temperature: -20 to +80 degrees Celsius
• DAC resolution: 18-bit
• MP3 bit rate: 8 to 384 kbit
• Voltage: 10 to 14.6 V DC
• Operating current: 450 mA typical, up to 700 mA when charging a phone
• Signal to noise ratio: 95 dB
• Total harmonic distortion: 0.1 percent
• Frequency response: 20 Hz to 20 kHz

Why UK buyers choose this kit

Looking for a Mercedes S-Class W221 smartphone upgrade or a CL W216 COMAND 3.0 connectivity kit that keeps everything OEM-like? This module delivers seamless iPhone and Android integration, voice control for Google Maps and Waze, Spotify and Apple Music streaming with pristine digital audio, and simple switching through the TV source. It is the ideal retrofit for those searching terms such as Mercedes S-Class iPhone integration, W221 Bluetooth music adapter, W216 wireless CarPlay module, Mercedes COMAND 3.0 Android phone connection, fibre optic MOST interface, pre-facelift 2006 2007 2008 infotainment upgrade and Harman Kardon compatible CarPlay unit.

Fitting and installation

Professional installation recommended. MJ Modifications offers expert fitting in Warwickshire. For a tailored quote and booking, email info@mjmodifications.co.uk.

User resources

• User manual for P2000-NTG30MM
• How to mirror from your phone
