Mr12Volt P2000-NTG45MM Mercedes-Benz NTG 4.5/4.7 MOST Fibre Optic Apple CarPlay & Android Auto Interface - Wireless/Wired, Digital Audio, TV Input - Compatible 2012-2015 A/B/C/E/CLS/GL/ML/G/SLK/SL/SLS

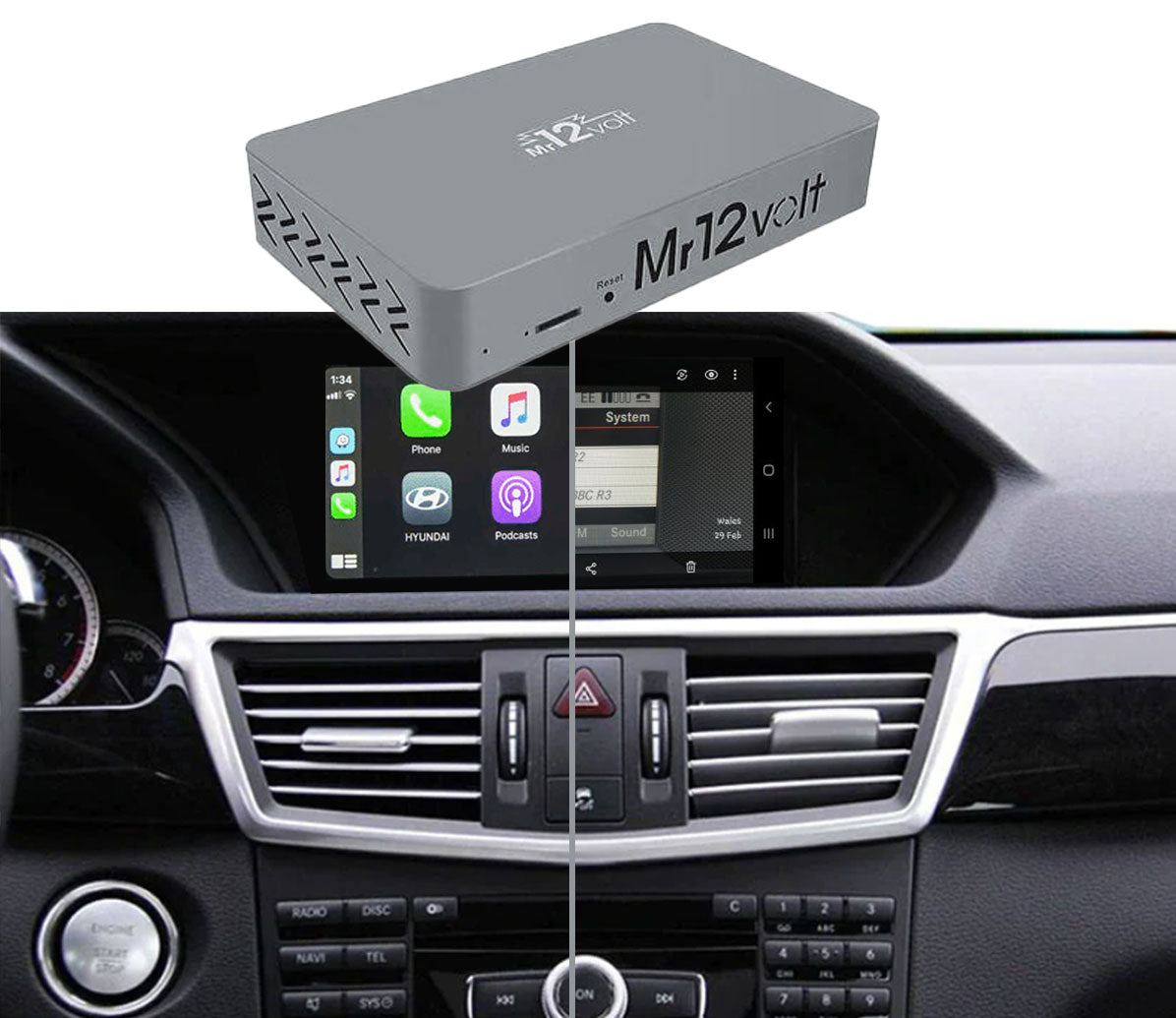

Transform your factory infotainment with the Mr12Volt P2000-NTG45MM. This premium retrofit brings modern smartphone integration to Mercedes-Benz NTG 4.5 and NTG 4.7 systems with crisp digital sound over the MOST fibre network and seamless TV source selection. Keep the OEM look, gain today’s functionality and enjoy outstanding reliability that our customers love.

Part number: P2000-NTG45MM

Looking for a high-quality smartphone connectivity upgrade for your Mercedes without compromising audio performance or factory aesthetics? This module delivers iPhone and Android integration via the vehicle’s fibre optic loop for pristine, low-noise sound and rock-solid stability. It uses the built-in TV function on COMAND to access the interface, so there is no coding and no aftermarket screen required.

Reasons drivers choose this upgrade

• Digital audio through the MOST fibre network for hi-fi sound quality
• TV source integration with a simple on-car activation process, no coding tools needed
• Uses the original in-car microphone for clear calls
• Retains the factory reverse camera and supports additional cameras up to AHD720
• Wireless and wired Apple CarPlay and Android Auto for navigation, music and messaging
• Wireless screen mirroring, Bluetooth handsfree and Bluetooth audio streaming
• USB video and music playback including Apple Lossless (ALAC)
• 15-band DSP equaliser to fine tune your in-car audio to perfection

Compatible Mercedes-Benz models with NTG 4.5 or NTG 4.7, 2012 to 2015

• W212 A207 C207 E-Class
• W204 C-Class
• W176 A-Class
• W246 B-Class
• C218 CLS
• W166 ML
• X166 GL
• W463 G-Class
• R172 SLK
• R231 SL
• C197 and R197 SLS

How it operates

• Select the interface via the vehicle’s TV function on NTG 4.5 or NTG 4.7
• No factory TV tuner required and no coding needed
• After installation press Return and C together for 5 seconds to enable the TV option
• Works with the OEM microphone
• MB Bluetooth and the interface Bluetooth can be connected at the same time. MB can take over when a call is received
• Accepts additional cameras up to AHD720

Real-world results

We run this unit ourselves and our customers rate it highly for sound quality, stability and an OEM-like experience. It is a superb choice for cars with Harman Kardon or other premium factory amplifiers where digital audio matters.

Multimedia support

• Video decoding: H.264 Baseline and Main High Profile Level 1 to 4.2, VC-1, MPEG1/2/4, Real-Video 8/9/10, VP6/7/8 WebM, DivX 3/4/5/6, H.263
• JPEG codec: Baseline interleaved up to 8176 x 8176
• Video formats: mkv, mp4, avi, wmv, rmvb, rm, mpg, mpeg, ts, dat, asf, flv, vob and more
• Audio formats: MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR and more

Technical data

• Operating temperature: -20 to +80 degrees centigrade
• DAC resolution: 18-bit
• MP3 bitrate: 8 to 384 kbit
• Voltage: 10 to 14.6 V DC
• Operating current: 450 mA typical, 700 mA when charging a mobile phone
• Signal to noise ratio: 95 dB
• Total harmonic distortion: 0.1 percent
• Frequency response: 20 Hz to 20 kHz

Installation videos

User manual: NTG45MM User Guide

Professional fitting

Prefer expert installation and configuration? Choose MJ Modifications in Warwickshire. Request a fitting quote at info@mjmodifications.co.uk.

Why buy from MJ Modifications

• We have installed and tested the P2000-NTG45MM extensively on NTG 4.5 and NTG 4.7 vehicles with excellent feedback
• UK-based support with real-world product knowledge
• Focused on high-end in-car integration and audio performance

Order the Mr12Volt P2000-NTG45MM today to modernise your Mercedes with premium smartphone connectivity, best-in-class digital sound via MOST fibre and slick OEM-style operation.
