Mr12Volt P2000-CCCMD MOST Bus BMW CCC/M-ASK/M-ASK II iDrive CarPlay & Android Auto Retrofit Interface - E90 E91 E92 E93 3 Series | E60 E61 5 Series | E63 E64 6 Series | X5 E70 | X6 E71 - Wireless & Wired, 15-Band DSP

P2000-CCCMD MOST Fibre Smartphone Integration Upgrade for BMW E Series

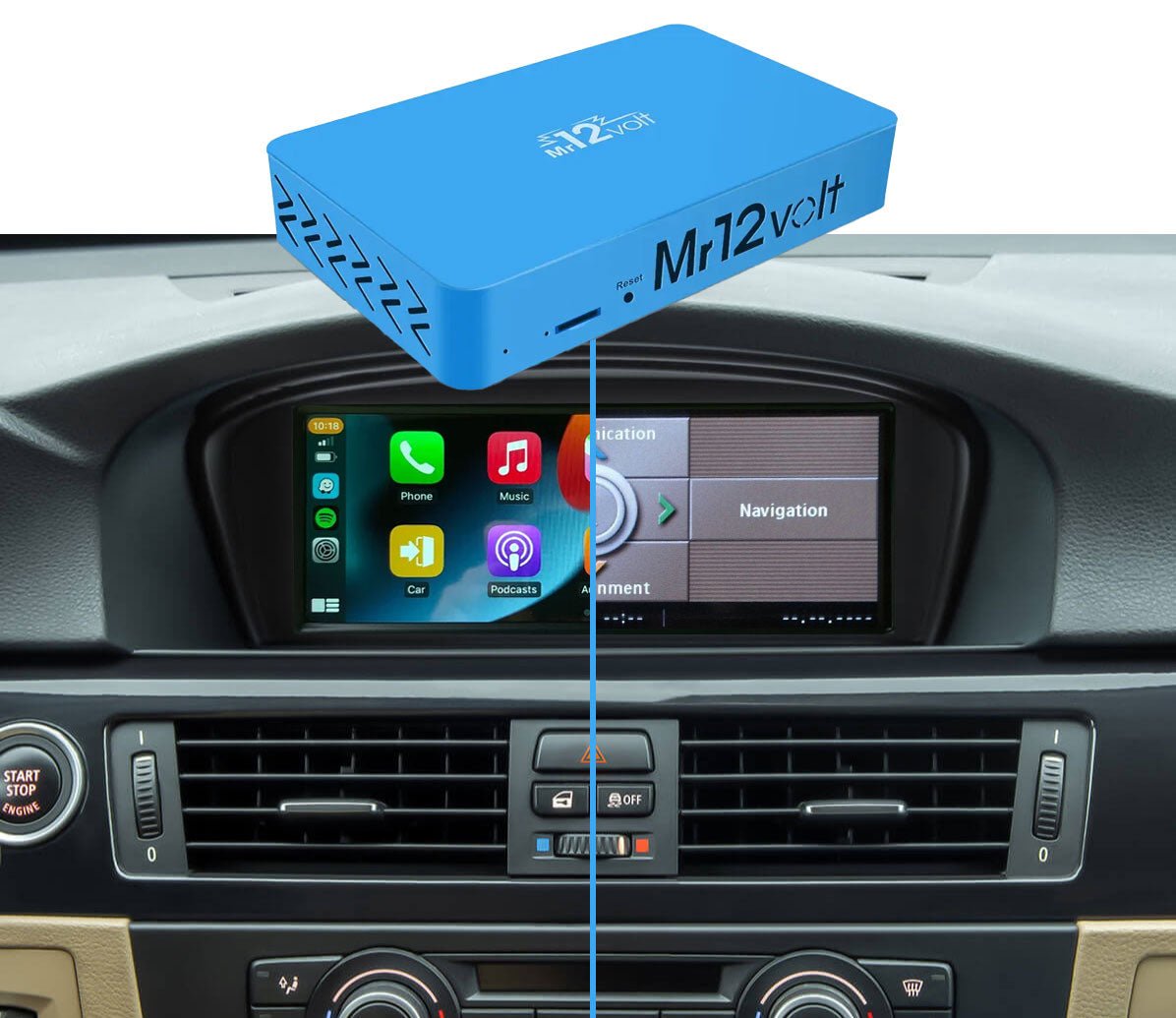

Transform your E chassis cockpit with seamless phone connectivity while keeping the OEM look and feel. The Mr12Volt P2000-CCCMD plugs into the factory optical network to deliver ultra clean audio, WiFi Carplay style iPhone projection and Android phone integration, all controlled from the original BMW controller and factory display. Enjoy precise tuning with a built in 15 band DSP equaliser for audiophile grade results on stock or upgraded speakers.

We have installed this kit ourselves and our customers consistently rate it for its factory style behaviour, quick boot, crisp sound over the MOST fibre link and slick control through the original knob and menus. If you want a plug and play infotainment upgrade for CCC or M-ASK without changing the screen, this is the proven choice.

Highlights

• Optical fibre integration on the MOST network for low noise, high fidelity sound
• Wireless and USB connected phone projection for both iPhone and Android handsets
• Retains the OEM display and rotary controller with native style operation
• 15 band DSP EQ for fine tuning bass, mids and highs to your taste
• Bluetooth handsfree calling plus Bluetooth music streaming
• Wireless screen mirroring, plus USB video and audio playback
• ALAC support for Apple Lossless listeners
• Rear view, front and side camera inputs supported up to AHD 720p
• Activated via the CD button and plays through the CD changer audio path

Part number: P2000-CCCMD

Vehicle compatibility

For BMW models equipped with CCC, M-ASK or M-ASK II:

• 3 Series E90, E91, E92, E93
• 5 Series E60, E61
• 6 Series E63, E64
• X5 E70
• X6 E71

Important: A CD changer must be present or the CDC function must be coded on for this module to operate.

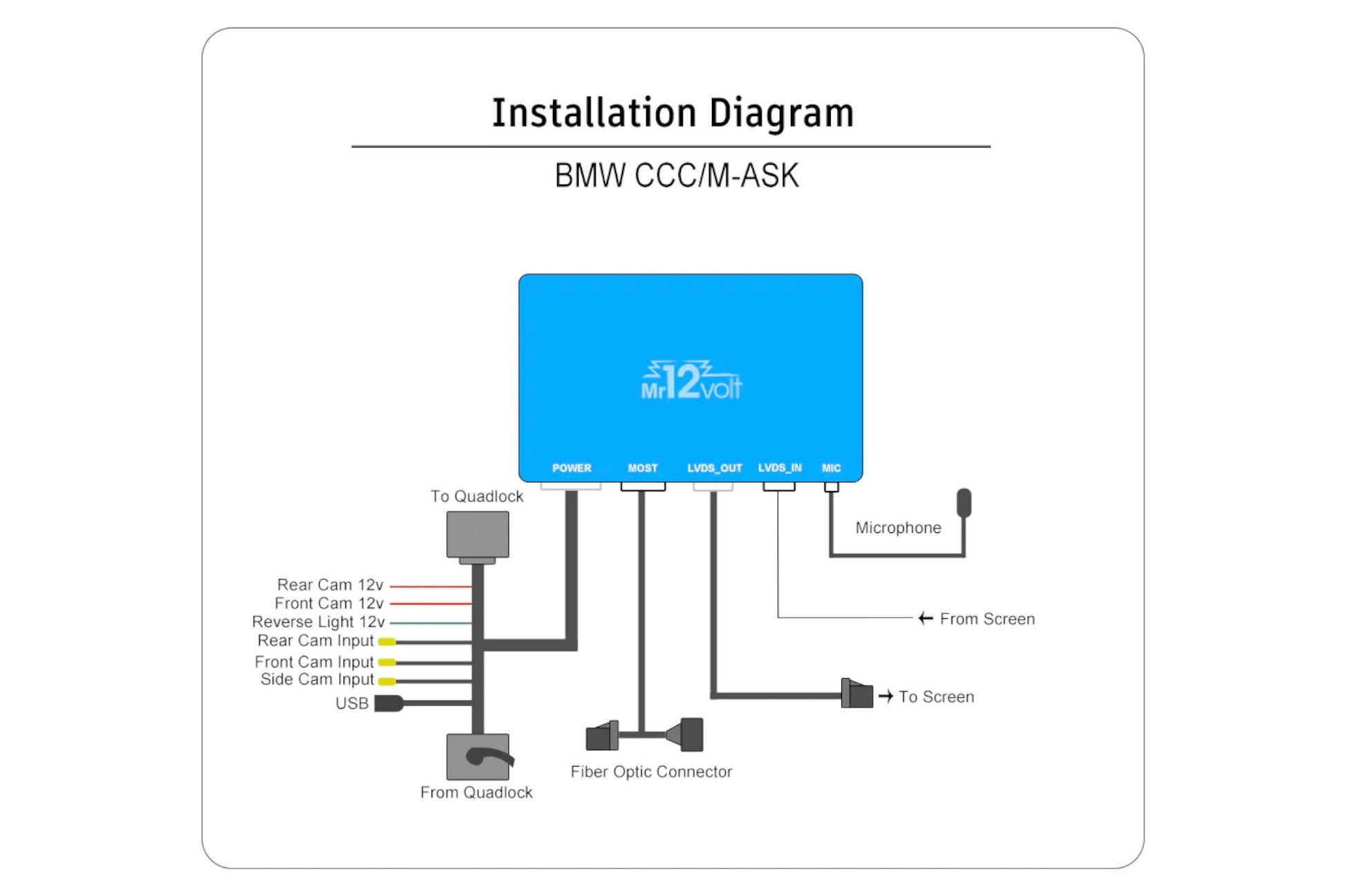

How it integrates

• If a physical CD changer is fitted, it must be bypassed. A loop plug is included to take the changer out of circuit.
• Switch to the interface using the CD key. Audio is carried on the changer channel for OEM grade clarity.
• Accepts aftermarket cameras up to AHD 720 resolution for reversing, front view and side view.
• The factory microphone is not used by this module. Both the BMW Bluetooth and the module’s Bluetooth can be paired. The BMW system will take over for incoming calls. Voice assistants like Siri and Google Assistant work with the supplied mic.

Supported codecs and formats

• Video: H.264 Baseline and Main High Profile L1 to L4.2 at 30 fps 1080p
• VC-1 Simple, Main and Advanced Profile levels 0 to 3 at 30 fps 1080p
• MPEG-1, MPEG-2, MPEG-4 SP levels 0 to 6, MP low to high, ASP levels 0 to 5 at 30 fps 1080p
• RealVideo 8, 9, 10 at 30 fps 1080p
• VP6, VP7, VP8 WebM at 30 fps 1080p
• DivX 3 to 6 at 30 fps 1080p
• H.263 Profile 0 levels 10 to 70 at 30 fps 720 x 576
• JPEG Baseline interleaved up to 8176 x 8176
• Containers: mkv, mp4, avi, wmv, rmvb, rm, mpg, mpeg, ts, dat, asf, flv, vob and more
• Audio: MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR and more

Real world advantages

• OEM style phone apps on the stock screen without swapping the head unit
• Hi fi friendly signal path via optical fibre preserves dynamics and detail
• Keep steering wheel feel and the familiar BMW menu structure
• Tune your system with the 15 band digital signal processor to suit cabin acoustics

Fitting and support

Professional installation is recommended. MJ Modifications offers expert fitting in Warwickshire with experience across E series platforms. To request a quote or book an install, email info@mjmodifications.co.uk.

Search friendly terms

BMW E90 iPhone integration, E91 smartphone upgrade, E92 wireless Carplay retrofit, E93 Android phone link, E60 navigation upgrade, E61 iDrive enhancement, E63 Bluetooth handsfree kit, E64 Apple phone projection, X5 E70 MOST fibre interface, X6 E71 optical audio module, CCC head unit upgrade, M-ASK Business Navigation upgrade, MASK II integration, BMW factory screen retention, BMW CD changer emulation, BMW DSP equaliser retrofit, BMW WiFi Carplay UK, BMW Android phone mirroring UK, P2000 CCCMD module, Mr12Volt P2000 CCMCD, BMW plug and play infotainment upgrade.

Bring your classic BMW dashboard up to date with crisp audio, slick phone control and a true OEM look using the Mr12Volt P2000-CCCMD. It is the smart way to modernise your E series without replacing the original system.
