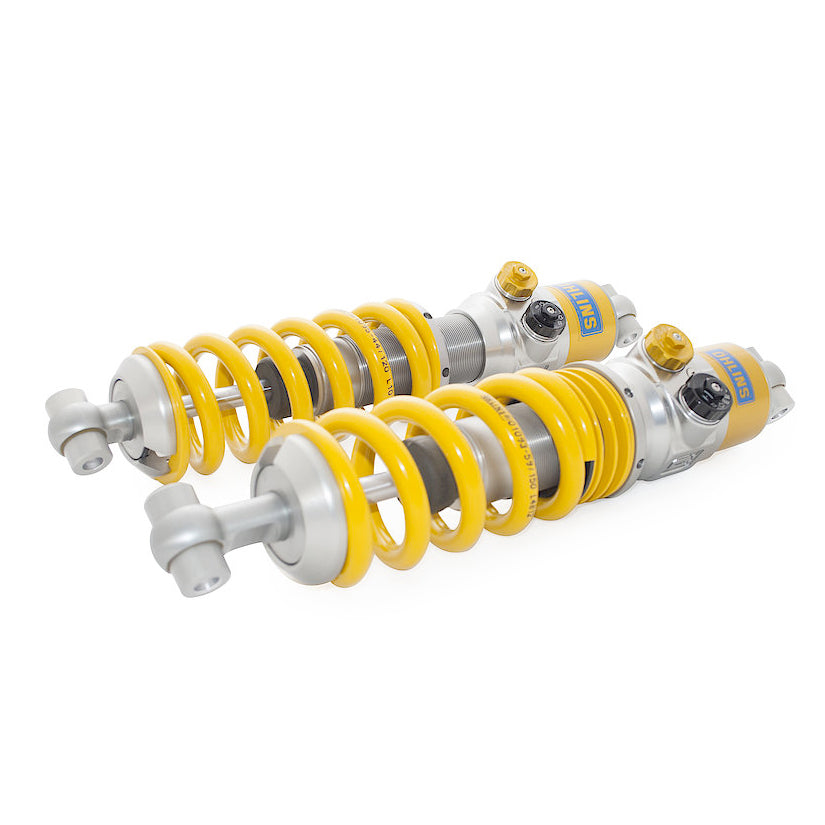

Ohlins Advanced Trackday & Motorsport Coilovers Audi R8 (42) 2006-2015

Audi R8 Type 42 suspension upgrade for serious circuit use

Unlock race-bred control and confidence with this Ohlins TTX36 adjustable damper and spring package for the Audi R8 Type 42. Designed for hard driving and club-level competition, this fully tuneable suspension system brings precise handling, superb grip and consistent performance lap after lap, while remaining perfectly usable on fast road. Expect crisp turn-in, flatter cornering and composed ride quality with around a 10 mm drop from factory height using the recommended baseline.

Why this setup

• TTX two-tube architecture for stable damping under sustained heat and load
• Independent bump and rebound controls to fine-tune balance and traction
• Ride height adjustment for stance and geometry optimisation
• Fully serviceable design for long-term value
• ISO 9227 salt spray tested for durability
• 2 year warranty for peace of mind
• Supplied with main springs and helper springs

Front axle specification

• TTX36 motorsport-grade shock absorber
• Separate clickers for bump and rebound
• Preload collar for spring tension adjustment
• Spring rate: 140 N/mm
• Approx. 10 mm lower than factory with the recommended setup

Rear axle specification

• TTX36 motorsport-grade shock absorber
• Separate clickers for bump and rebound
• Dedicated preload adjuster
• Spring rate: 140 N/mm
• Approx. 10 mm lower than factory with the recommended setup

Kit contents and part numbers

• Shock absorber kit: AUV MS00
• Front main springs: 48120-25
• Rear main springs: 48140-25
• Helper springs: 05173-12, 7.5 N/mm, x4
• C-spanner for preload adjustment
• Owner manual and mounting instructions
• Sticker set

Recommended springs front: 48120-25 main, 05173-12 helper

Recommended springs rear: 48140-25 main, 05173-12 helper

Optional add-on

EDC cancellation kit, part number 35020-17, available separately. Useful for cars equipped with factory electronic damping.

Installation and setup

For professional fitting and a tailored setup, we recommend booking with MJ Modifications in Warwickshire. Email info@mjmodifications.co.uk for a quote and advice on geometry and adjustments.

Proven on track

We have installed this package for customers who drive their R8s hard on circuit and the feedback is outstanding. Sharper steering, improved traction out of corners and predictable balance make it a genuine upgrade for drivers chasing lap time and confidence.

Compatibility

For Audi R8 Type 42, model years 2006 to 2015.
