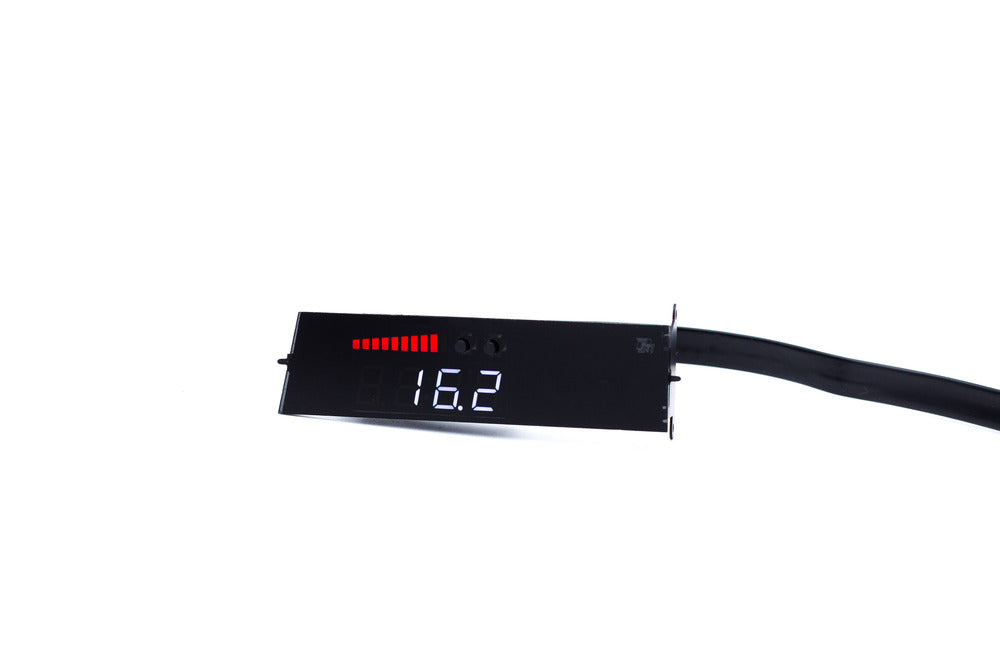

P3 Analog/Analogue Vent Boost & Vacuum Gauge Display for Audi B9 A4 S4 A5 S5 RS5 (2016+) - Turbo/Manifold Pressure Monitor, 0-5V Sensor Inputs (Ethanol/Oil/Fuel/IAT), OEM-Style Stealth Dash, Auto-Dim Ready

P3 analogue display for Audi B9 A4, S4, A5, S5, RS5 2016 onwards

Elevate your cockpit with a factory-look performance monitor that shows real-time manifold pressure and vacuum along with extra sensor data, all in a clean OEM-style package. The P3 analogue display is the enthusiast’s choice for Audi B9 drivers who want discreet, accurate readings without bulky add-ons. We use this kit ourselves at MJ Modifications and our customers love the clarity, reliability and stock-style integration.

Why this performance monitor stands out

• Precise turbo pressure and vacuum tracking that helps protect engines on mapped, remapped and hybrid turbo builds as well as standard cars.
• Two configurable 0 to 5 volt channels to view additional senders such as oil pressure, fuel pressure, ethanol content, coolant temperature or intake air temperature. Sensors not included.
• Battery voltage readout built in for quick electrical health checks.

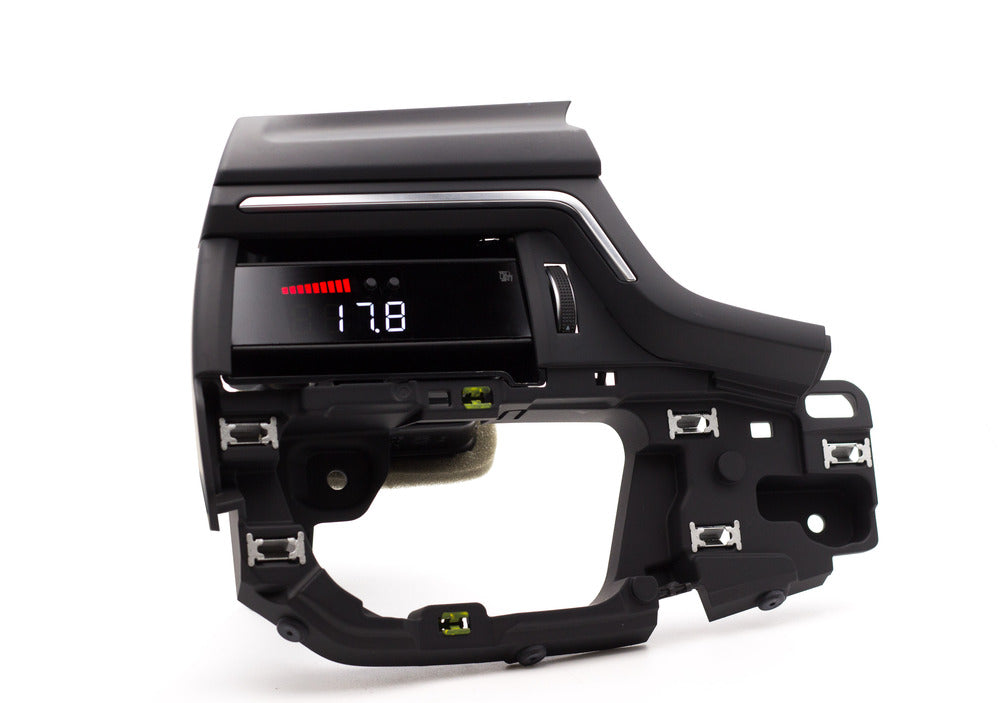

• Subtle, stock-appearance display that blends into the cabin for a stealth, OE feel.
• Proven by us and our customers with consistent, repeatable readings and an easy-to-use interface.

Inputs and wiring

• Dedicated boost input using the included sensor lead (yellow / purple / black). A take-off for the manifold line is required, not included.
• Analog input 1 (brown wire) accepts any linear 0 to 5 V sensor output.
• Analog input 2 (blue wire) accepts any linear 0 to 5 V sensor output.
• Voltage monitoring via the power and ground connections (red wire / black wire).

Night-friendly dimming

For automatic brightness reduction at night, connect the green wire to a lighting circuit that is powered only when the headlamps are on, then enable the function in the configuration menu. Enjoy a comfortable, glare-free display after dark.

Perfect for tuned B9 platforms

Whether you run Stage 1, Stage 2 or a hybrid turbo setup, this unit gives you the confidence to push on while keeping a close eye on key parameters. Ideal for daily-driven cars and track builds seeking a discreet, OEM-style solution.

Vehicle suitability

Compatible with Audi B9 chassis from 2016 onwards including A4, S4, A5, S5 and RS5. Please confirm suitability for your specific engine and trim before ordering.

Installation and fitting

This kit is not plug and play. A pressure or vacuum hose must be run to the engine, and wiring is required for power, ground and any optional 0 to 5 V inputs. For professional installation, book with MJ Modifications in Warwickshire. Request a quote at info@mjmodifications.co.uk.

Notes

• Manifold take-off or boost tap is required and not included.
• Additional sensors for the 0 to 5 V channels are not included.
• Auto dim requires connection of the green wire to a headlamp feed and enabling in the menu.
