P3 Analog Vent Boost Gauge for Audi C7 4G (2011-2018) - A6 S6 RS6 A7 S7 RS7 | Turbo Boost & Vacuum | 0-5V Sensor Inputs Display, Battery Voltage

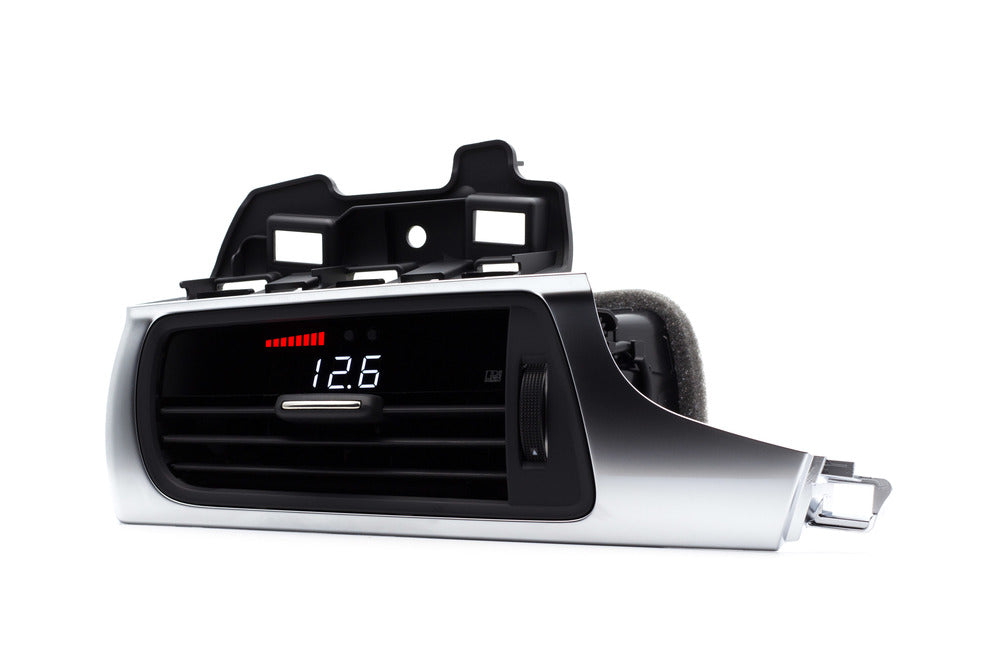

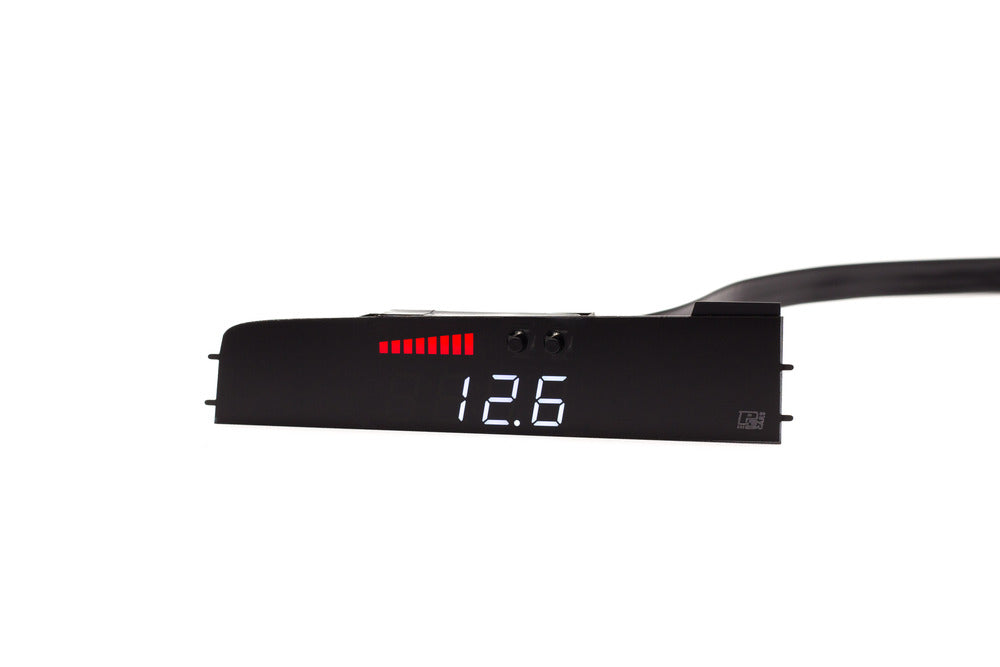

Vent-mounted pressure display for Audi C7 4G 2011 to 2018

A sleek, factory-look solution for the C7 generation A6, S6, RS6, A7, S7 and RS7, this vent-mounted analogue pressure display gives clear, real-time induction pressure and vacuum readings, plus handy battery voltage and support for 0 to 5V auxiliary sensors. It blends seamlessly into the cabin, keeps your eyes on the road and your engine data where you want it. We run this setup ourselves and our customers love the OEM+ finish and precise response.

Why owners choose this unit

• Stealth fitment in the air vent for a clean OEM-style interior
• Fast, accurate manifold pressure and vacuum feedback for tuned or stock cars
• Expandable monitoring with two 0 to 5V inputs for popular aftermarket sensors
• Ideal for 3.0 TFSI supercharged and 4.0 TFSI twin-turbo applications on the C7 4G platform
• Trusted by enthusiasts, proven by us at MJ Modifications and praised by customers for reliability

Readouts and connections

• Manifold pressure via the dedicated analogue boost lead (yellow or purple or black). A boost reference source is required. Boost tap not included.
• Auxiliary Input 1 on the brown wire accepts any linear 0 to 5V sensor signal.
• Auxiliary Input 2 on the blue wire accepts any linear 0 to 5V sensor signal.
• Charging system voltage read through the red power and black ground wires.
• Optional auto-dim with the green wire connected to a lighting-on circuit, then enable in the configuration menu.

What you can display with 0 to 5V inputs

Configure the unit to show popular performance data from compatible sensors: oil pressure, fuel pressure, ethanol content analyser output, wideband lambda or AFR controller output, intake air temperature, MAP, coolant temperature, gearbox temperature and more. If the sender outputs a linear 0 to 5V signal, you can scale it for this display.

Vehicle compatibility

Audi C7 4G platform 2011 to 2018: A6, S6, RS6, A7, S7 and RS7. Perfect for 3.0 TFSI and 4.0 TFSI models looking for an OEM+ vent-mounted monitoring solution.

Installation guidance

This is the analogue version and is not plug and play. You will need a vacuum or boost reference line to the engine and a suitable boost tap or manifold connection point. Wiring to switched power and ground is required, along with wiring for any optional sensors and the auto-dim feed if desired. Professional installation is recommended.

Want it fitted properly first time? MJ Modifications in Warwickshire offer installation and setup. Request a quote at info@mjmodifications.co.uk.

Key notes

• Analogue unit. Not plug and play.
• Boost reference hose and a boost tap are required and not supplied.
• Wiring to power, ground and any optional 0 to 5V sensors is required.
