P3 Analog Turbo Boost

P3 Integrated Manifold Pressure Display for BMW F20 F21 F22 F23 and M2 F87 2013+

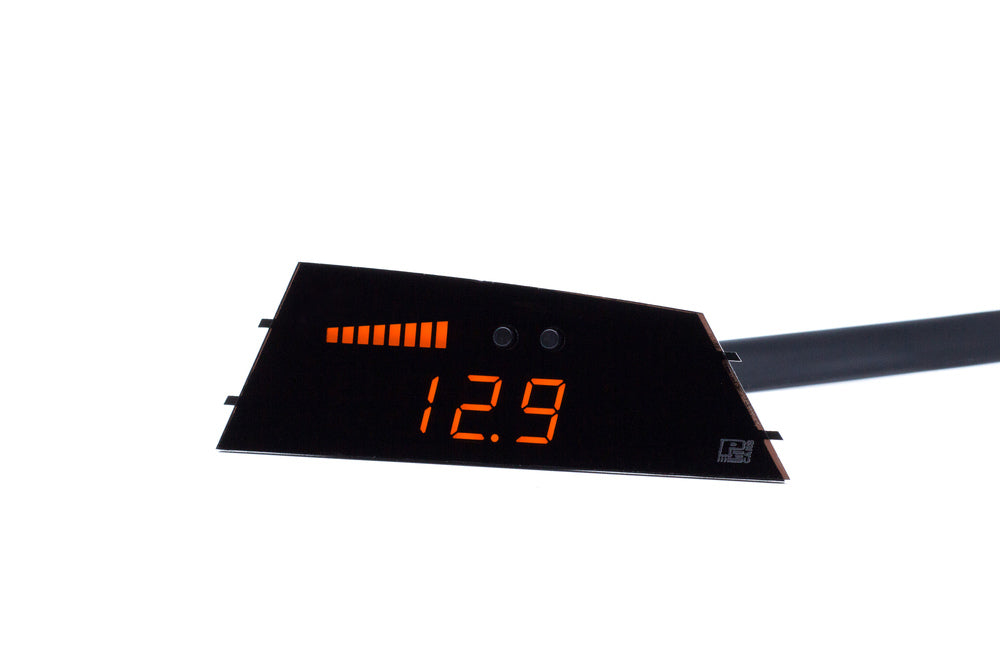

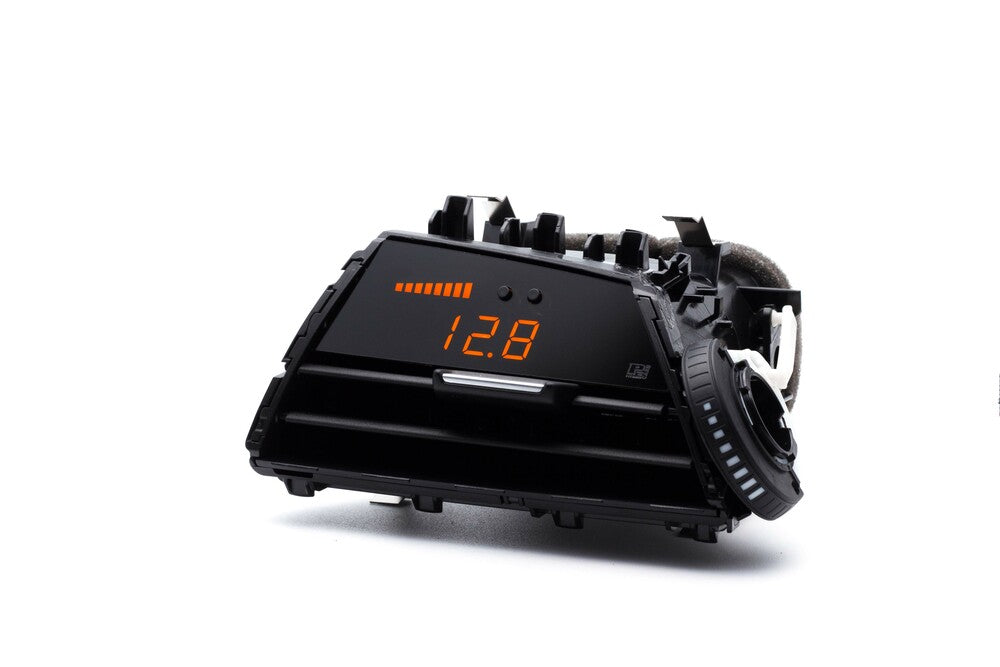

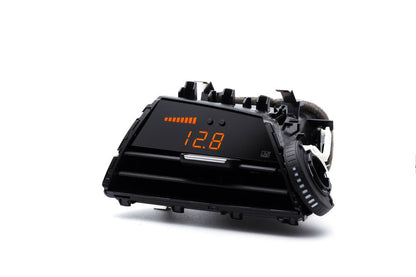

Give your 1 Series, 2 Series or M2 a factory-look pressure readout that belongs in the cabin. This vent-mounted P3 display provides precise live turbo pressure and vacuum monitoring without cluttering your dashboard. It is the tidy, OEM-style solution enthusiasts choose for trustworthy data on stock and tuned cars alike.

Important This unit is not plug and play. It requires a boost and vacuum reference line to the engine and must be hard-wired for power, ground and any optional analogue inputs.

Vehicle compatibility

BMW F2x and F87 platforms 2013 onwards

• BMW 1 Series F20 F21
• BMW 2 Series F22 F23
• BMW M2 F87

Why choose this P3 vent display

• Live manifold pressure and vacuum readout for confident driving and calibration
• Discreet vent integration that blends with BMW interior trim for a true factory appearance
• Two universal 0 to 5 volt analogue channels to show additional sensor data on the same screen
• Battery voltage monitoring plus optional automatic night dimming

We run these on our own builds at MJ Modifications and customer feedback has been superb. Fit and finish are top tier and reliability is exactly what you want from a daily driven performance car.

Available readouts

• Boost via analogue sensor yellow, purple, black wires dedicated plug for the included pressure sensor
  Note Boost tap not included
• Analogue input 1 brown wire reads any linear 0 to 5 volt output
• Analogue input 2 blue wire reads any linear 0 to 5 volt output
• Battery voltage red and black wires read through power and ground

Typical 0 to 5 volt sensors you can display include oil pressure, fuel pressure, wideband, ethanol content and more. If it outputs a linear 0 to 5 volt signal this P3 display can show it.

Optional auto dim

Green wire connect to a circuit that is powered only when the headlamps are on then enable the dim feature in the configuration menu for comfortable night-time viewing.

What you receive

• Vent-integrated display module
• Analog Box control unit
• Main harness
• Hard-wire harness
• Analogue boost pressure sensor
  Boost tap not included
• Approximately 5 feet of 5/32 inch O.D. boost tubing with 5/32 inch I.D. hose at each end
• 3 zip ties
• 2 scotchlok wire taps

Fitting and installation

This is a hard-wired install and needs a vacuum or boost reference line to the intake system. Professional installation is recommended. For a seamless fitting service contact MJ Modifications in Warwickshire for a quote info@mjmodifications.co.uk.
