Powerflex Rear Shock Top Mount Bracket & Polyurethane Bush Kit 10mm (PFR5-5630-10) for BMW E46 3 Series Xi/XD AWD 4WD

Rear Damper Upper Mount Bracket with Poly Bush 10 mm for BMW E46 Xi and XD AWD models — PFR5-5630-10

Transform the rear end of your all-wheel-drive E46 with this Powerflex PFR5-5630-10 rear damper upper mount bracket and polyurethane bushing set. By replacing tired OE rubber with trusted Powerflex poly, you reduce unwanted movement, tighten up response, and keep the rear tyres planted. Expect crisper turn-in, improved braking stability, more predictable cornering and better tyre wear on fast road and daily use.

We run these bushes on our own builds and customer cars and the feedback is consistently excellent. It is a simple, high-value chassis upgrade backed by the Powerflex Lifetime Warranty.

Why upgrade to polyurethane

• Controls damper mounting deflection far better than ageing rubber
• More precise road feel without harshness when compared to worn OE parts
• Resists heat, oil and road contaminants for long service life
• Maintains rear geometry under load for predictable handling
• Helps reduce rear-end float, tramlining and uneven tyre wear

Fitment details

• Part number: PFR5-5630-10
• Vehicle: BMW E46 3 Series Xi and XD four wheel drive models
• Rear shock absorber pin size required: 10 mm

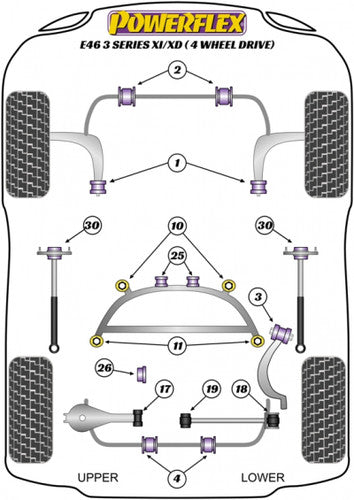

• Diagram reference: 30

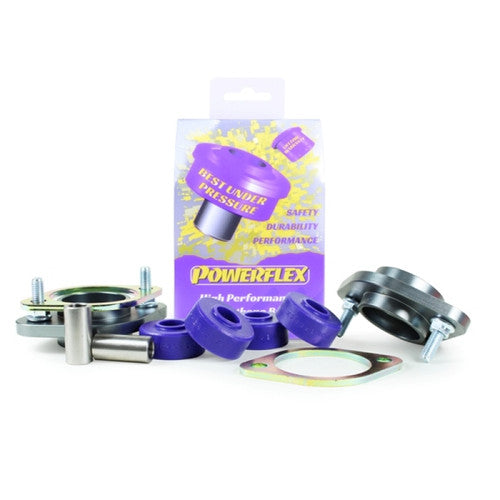

• Pack contents: 2 bushes with mount brackets
• Will not fit: E36 or E46 Cabriolet models

Pin diameter guidance by damper brand

• Original BMW: 10 mm
• AST: 10 mm
• Bilstein HD, Sport, PSS coilovers: 10 mm
• FK coilovers: 10 mm
• H&R coilovers: 10 mm
• JRZ RS: 12 mm
• Koni Sport: 10 mm
• KW V1, V2, V3: 10 mm
• ST coilovers: 10 mm
• Tein coilovers: 12 mm

This list is a guide only. If your damper brand is not shown, measure the shaft pin. Choose PFR5-5630-10 for 10 mm pins or PFR5-5630-12 for 12 mm pins.

What you will notice

• Cleaner, more precise rear axle behaviour
• Tighter response over bumps and during direction changes
• Increased confidence in wet and dry conditions
• Reduced clunks and play from the rear shock top area when replacing worn rubber

Installation and support

Professional fitting recommended. MJ Modifications in Warwickshire can install this kit and provide alignment advice for road or track. Request a fitting quote at info@mjmodifications.co.uk.

Powerflex assurance

Genuine Powerflex component with Powerflex Lifetime Warranty for peace of mind.

OEM cross references

33521092362, 33526779670
