Precision Raceworks BMW N54/N55 Injector Removal & Installation Tool - Injector Puller & Seal Compression/Installer Kit - 1M 135i 335i 535i 550i 650i 740i 750i X5 X6 Z4 - PN 601-0005 UK

Precision Raceworks Injector Extractor and Seal Sizing Kit for BMW N54 and N55 - PN 601-0005

Tackle BMW direct-injection injector servicing the right way with this professional extractor and seal compression set from Precision Raceworks. Built specifically for BMW piezo injectors on the N54 and N55 platforms, this robust service kit removes tight injectors cleanly and sizes new high-pressure seals accurately for dependable, leak-free results across popular models such as 1M, 135i, 335i, 535i, 550i, 650i, 740i, 750i, X5, X6 and Z4.

We use this exact kit in our workshop and it delivers fast, repeatable outcomes with minimal fuss. Customers consistently report easier extraction, precise seal resizing and long-term reliability once refitted. If you are refreshing piezo injectors, resolving sealing issues or simply want the right tool for preventative maintenance, this is the set to trust.

Why this kit is the smart choice

• Engineered for BMW piezo direct-injection injectors used on N54 and N55 engines
• Removes stubborn units safely using a slide-hammer style extractor
• Correctly compresses new high-pressure rings for proper seating and sealing
• Repeatable, workshop-grade performance for enthusiasts and professionals
• Trusted by UK BMW specialists for quick, clean injector service work

What you get

• Extractor assembly with slide-hammer operation for controlled pull-out
• Integrated expansion mandrel stored inside the main shaft for fitting new seals

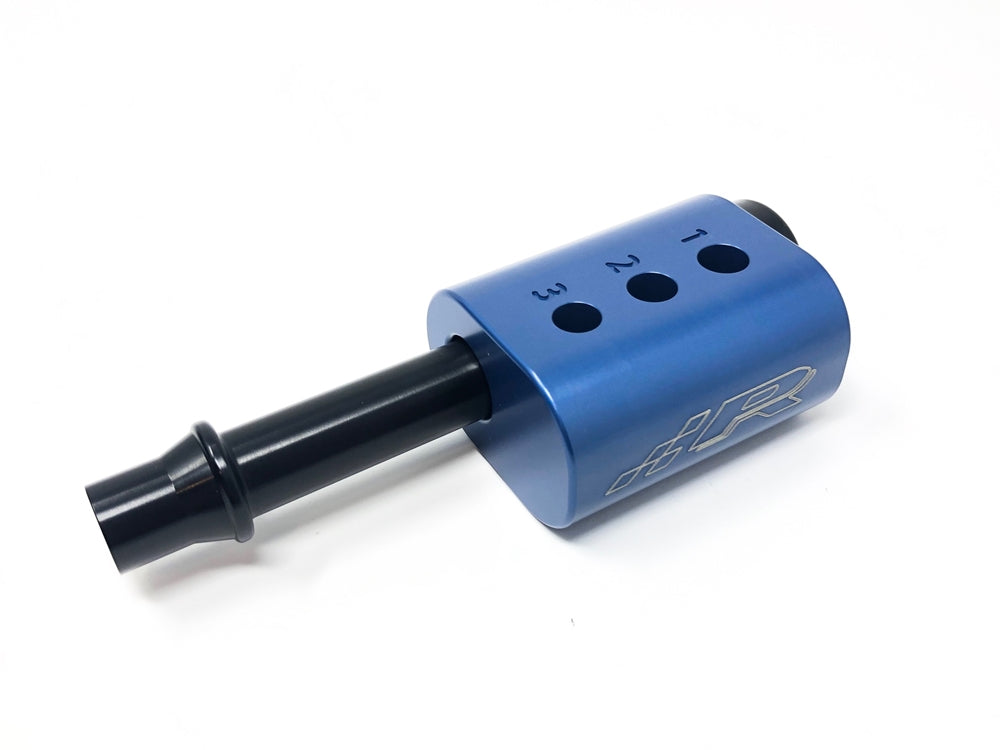

• Three precision compression dies to size the seal progressively

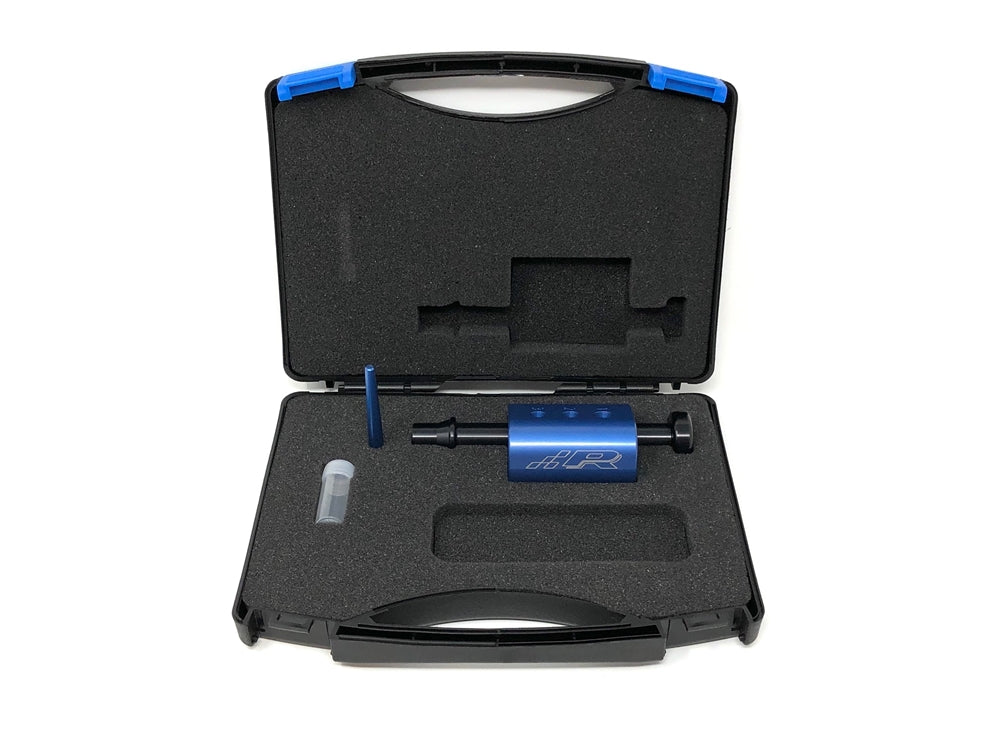

• Durable carry case with foam inserts for safe storage
• Small container for spare seals

How to use

Removal: Thread the extractor onto the injector inlet and use controlled taps with the slide hammer to release the injector without damaging the nozzle or rail.

Seal swap: Pinch and remove the old ring with needle nose pliers. Fit the new ring using the expansion mandrel housed in the tool.

1. Place the injector into die 1 and hold for a slow count of 10
2. Move to die 2 and hold for a slow count of 20
3. Finish in die 3 and hold for a slow count of 30

Important: Install the injector within 30 seconds of removing it from the third die. If you exceed this time, repeat the compression sequence to ensure a proper seal.

Vehicle coverage

Designed for BMW applications using N54 and N55 piezo direct injectors, including:

• 1 Series 135i 2007-2010 (E8x)
• M Series 1M 2011-2012 (E82)
• 3 Series 335i and 335is 2007-2013 (E90 E91 E92 E93 - N54 and N55 variants)
• 5 Series 535i 2007-2016 (E6x and F10)
• 5 Series 550i and 550i GT 2011-2016 (F10 F07)
• 6 Series 650i 2012-2017 (F06 F12 F13)
• 7 Series 740i 740Li 2008-2012 (F01 F02 - N54)
• 7 Series 750i 750Li 2009-2015 (F01 F02)
• 7 Series 760i 760Li 2009-2015 (F02)
• Alpina B7L 2004-2008 (E66)
• X5 2010-2013 (E70) including 35i 2011-2013
• X6 2010-2013 (E71) and X6M
• Z4 35i 35is 2009-2016 and 28i 2011-2016 (E89)

Real-world results

Our team and customers appreciate how predictable this kit is: stubborn injectors come out with confidence, new rings size correctly and refits seal as they should. It is a proven time-saver that helps avoid repeat jobs caused by poorly compressed seals.

Compatibility check

Unsure it suits your car. Add your UK registration or the last 7 digits of your VIN at checkout and we will confirm fitment for your specific BMW before dispatch.

Professional fitting

Want it installed by specialists. Book with MJ Modifications in Warwickshire. Email info@mjmodifications.co.uk for a quote and availability.

Part number

Precision Raceworks PN: 601-0005
