Torqbyte CM5-LTS Water-Methanol/Alcohol Injection Controller - Universal WI/Meth Kit Controller for Turbo & Supercharged Petrol/Diesel - 3D Mapped PWM, RPM/Boost Referenced, Dual 15A Pumps, Failsafes, CAN Ready, TorqTune, Data Logging, Staged Injection

Torqbyte CM5-LTS Water Meth Control Module — Part Number: CM5-LTS

Looking for rock solid alcohol injection management for a charged engine build in the UK. The Torqbyte CM5-LTS is a serious water meth control brain for petrol and diesel applications, delivering mapped output that follows both boost and engine speed for precise charge cooling under real load. If you need a water-meth controller that supports two pumps, has advanced failsafes and integrates with data over CAN when available, this is the unit we trust on our own cars.

At MJ Modifications we run the CM5-LTS on customer vehicles and our own development cars. The feedback is consistently the same. smoother delivery, cooler IATs, stronger knock resistance and confidence when pushing timing and boost on big turbo and supercharger setups. It is a standout upgrade over single parameter progressive boxes.

Standout capabilities that make tuning easier

• Drives one or two injection pumps with independent control, up to 15 A per pump output
• True mapped control using 16 x 16 tables referenced to RPM and manifold pressure for accurate fluid delivery across the full rev range
• Six total outputs for a flexible system layout. perfect for anti siphon solenoids, fast acting valves, auxiliary high impedance injectors, staged delivery, electronic boost control, relays and warning lamps
• Multiple 0 to 5 V inputs for custom strategies using MAF, TPS, wideband controllers or other sensors
• Safety logic using optional flow sensing and pump current monitoring to detect underflow, faults or overcurrent and act before there is risk
• CAN integration capability for control from vehicle data where supported
• TorqTune PC software for configuration, live tuning, logging and playback
• Designed, tested and manufactured in Canada to a very high standard

Who it suits

Ideal for turbocharged and belt driven forced induction builds, direct injection engines, multi stage WI systems, track day toys and high performance road cars that need accurate, repeatable water-meth control and robust failsafes.

Why it outperforms basic progressive boxes

Most simple controllers change pump speed against a single input such as boost. The CM5-LTS uses two dimensional mapping tied to both boost and RPM, which aligns delivery with actual engine air mass and load. The result is better atomisation, more consistent charge cooling and repeatable performance. You can also run hybrid strategies with fast acting valves and anti siphon solenoids, or build bespoke control using 0 to 5 V sensor inputs.

Built in protection

• Flow based protection strategies
• Pump current monitoring for early fault detection
• User defined actions. reduce duty, trigger warnings or switch outputs based on conditions

TorqTune software, live adjustability and analysis

• PC based setup with intuitive tables
• Make changes while the engine is running for real time optimisation
• Live parameter view, data logging and playback for deep analysis and remote support
• Save and share TTINI calibration files for consistent results

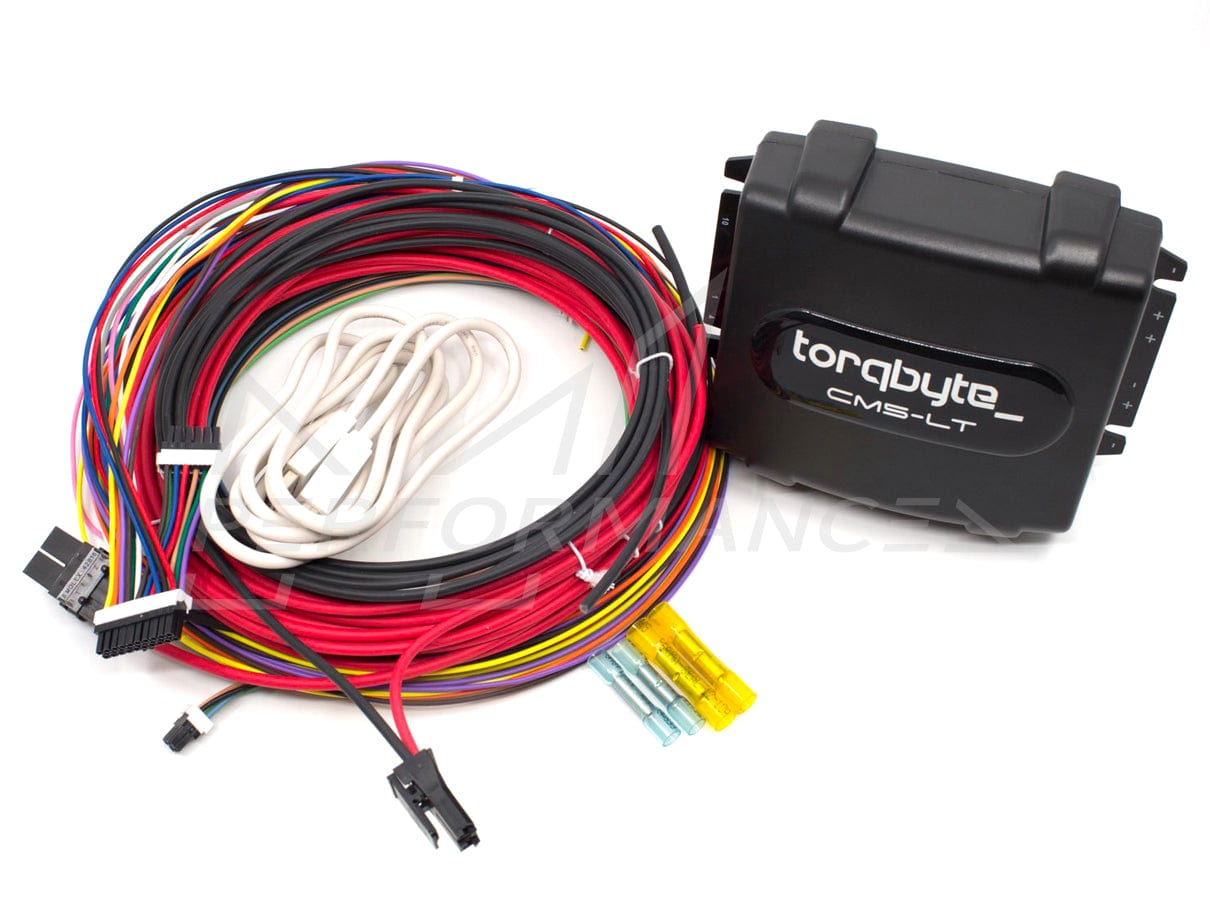

What is included

• CM5-LTS controller
• Input and output harness 12 ft 3.6 m
• Power harness 12 AWG 12 ft 3.6 m
• Pump harness 14 AWG 12 ft 3.6 m
• USB cable

Popular add ons

• Honeywell pressure transducer 100 PSI or 50 PSI with Metri-Pack 150 pre fitted on the I O harness
• Ruggedised low profile metal case
• Power and ground accessory kit with 40 A fuse and holder
• Second pump harness for dual pump setups
• Input and Output Expansion Module. supports up to two flow sensors, a dash mounted display or gauge, extra 0 to 5 V analogue inputs and CAN interfacing

Control modes supported

• VPD variable pump duty mapped to boost, RPM or a 0 to 5 V source
• FPD VSD fixed pump duty with variable solenoid duty for fast acting valve control
• Hybrid layouts using two pumps, anti siphon solenoids and FAVs
• Direct injection friendly and excellent for staged injection strategies

Compatibility

Universal control for forced induction platforms. Works with petrol and diesel, direct or port injected. Replacing an entry level controller. The CM5-LTS can usually manage existing pumps, solenoids and valves with straightforward wiring adjustments.

Firmware note and future updates

Firmware is upgradeable via PC. Version 2.70 emulates previous CM5-LT functionality and currently does not support CAN integration or configuration of GPO3 and GPO4. These functions will be added in a future firmware and TorqTune release. No hardware changes are required.

Professional fitting and support

For installation and calibration, book with MJ Modifications in Warwickshire. We have hands on experience with the CM5-LTS and our customers are delighted with the drivability and reliability. Request a fitting quote at info@mjmodifications.co.uk.

Order with confidence

We perform a compatibility check prior to dispatch. Add your UK registration number or the last 7 digits of your VIN at checkout so we can confirm suitability and advise on the best setup for your car.

Part Number: CM5-LTS
