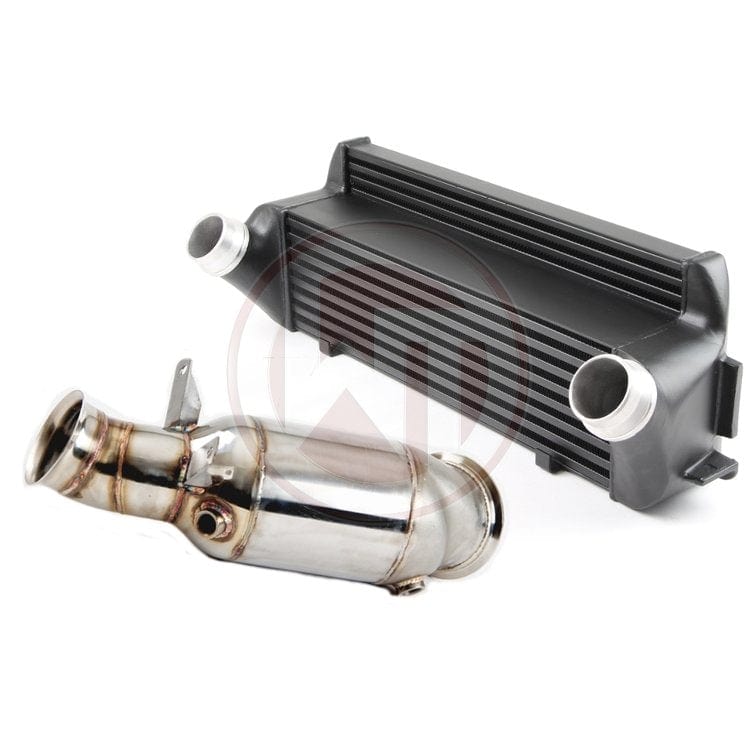

Wagner Tuning BMW N55 EVO2 Competition Front Mount Intercooler FMIC + Catless/De-Cat Turbo Downpipe Kit (F20 F21 F22 F23 F30 F31 F32 F33 F34 F87) 07/2013-on - M2 M135i M235i 335i 435i - Charge Air Cooler Upgrade & Straight/Race Pipe | 700001052

BMW F-Series N55 Chargecooler and Catless Pipe Package by Wagner Tuning | Part No. 700001052

Looking for colder intake temps, rapid turbo response and repeatable performance on your N55? This Wagner Tuning EVO2 bundle pairs the stepped front mount chargecooler with a free-flow race downpipe without catalyst to deliver cooler charge air, reduced exhaust backpressure and a harder-hitting mid range on every pull. Ideal for spirited road driving and track use on F-series petrol six-cylinder models from 07/2013 onward.

We run this exact setup on our own car and customer feedback mirrors our experience: noticeably sharper throttle, stronger torque through the revs and far more consistent power once heat would normally soak a factory cooler. If you are hunting a BMW turbo cooling upgrade, performance straight pipe for N55, FMIC for F-series, or a complete flow and cooling package for M135i, M235i, M2, 335i or 435i, this is the proven solution.

Why this package works

• EVO2 stepped core with a huge frontal area and volume increase over stock for excellent charge temperature control
• Race downpipe in 1.4301 stainless (SS304) for a straight-through exit that lowers turbine backpressure and helps the turbo work more efficiently
• Less thermal load on the turbocharger for greater reliability under extended hard use
• Faster spool and crisper response thanks to improved flow on both the hot and cold side
• CAD designed cast aluminium end tanks for smooth airflow and OE-grade fit
• Direct-fit solution using factory pipework. No cutting. No bumper removal required for the intercooler

What is included

• Wagner Tuning EVO2 Competition charge air cooler kit
• N55 stainless catless race pipe
• All brackets, fixings and instructions

Intercooler technical details

• Core size: 520 mm x 215 mm x 145 mm stepped design
• Core volume: 13,840 cm³ (stock 7,293 cm³)
• Approx. 85 percent larger face area and 90 percent more volume than factory
• Weight: 8.6 kg
• Cast, flow-optimised end tanks
• Direct fit using OEM hoses

Race downpipe technical details

• Material: 1.4301 stainless steel (SS304)
• Direct replacement for the OEM part
• Free-flow design reduces exhaust restriction for more power and torque
• Lower thermal stress on the turbo
• Without catalytic converter
• Connection diameter: 118 mm

Note: ECU calibration will be required to prevent a check engine light after fitting the catless pipe.

Vehicle fitment

• BMW M135i and M135i xDrive F20 / F21 from 07/2013+
• BMW M235i and M235i xDrive F22 / F23
• BMW M2 F87 272 kW / 370 PS (2016+)
• BMW 335i and 335i xDrive F30 / F31 / F34 from 07/2013+
• BMW 435i and 435i xDrive F32 / F33 from 07/2013+

Part number

700001052

Fitting and support

Professional installation available at MJ Modifications in Warwickshire. For a fitting quote or advice, email info@mjmodifications.co.uk.
