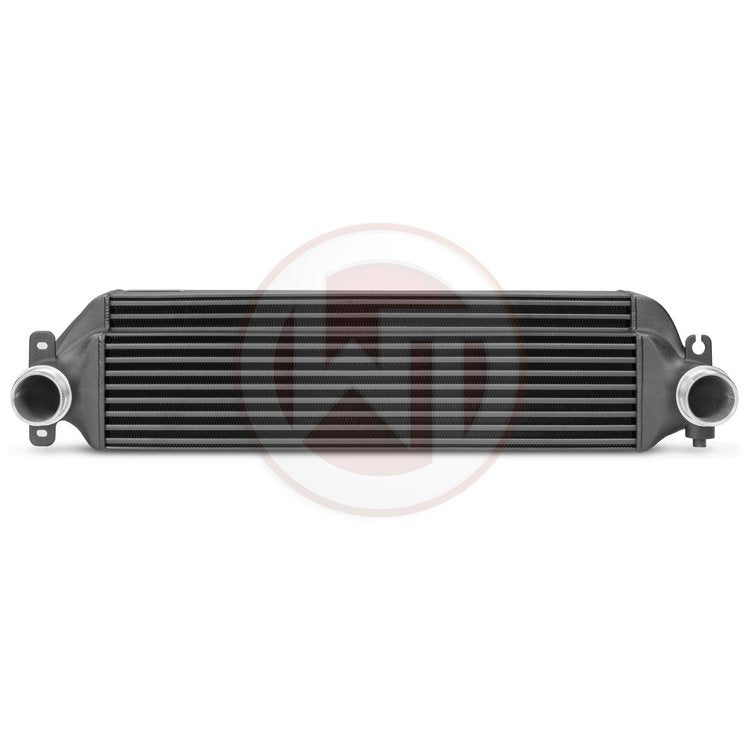

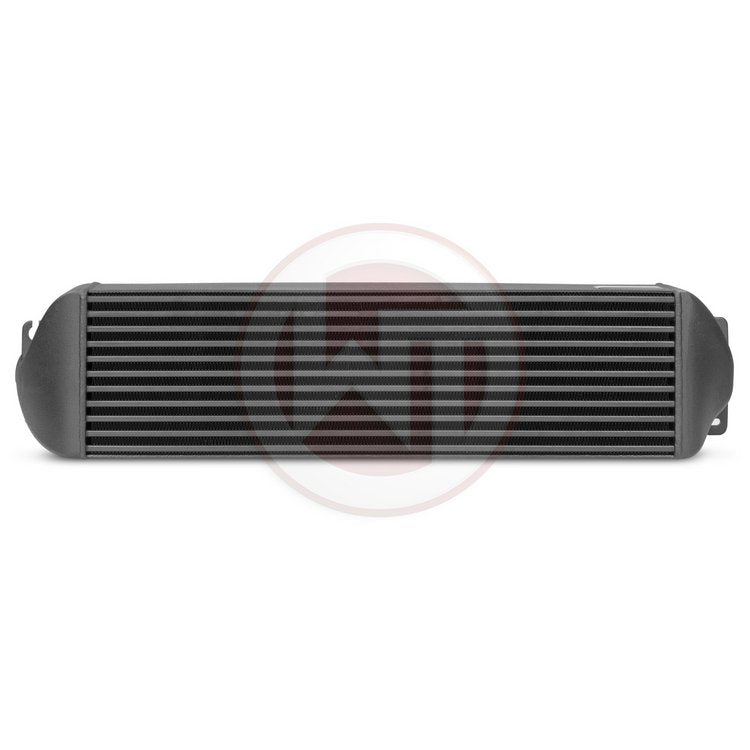

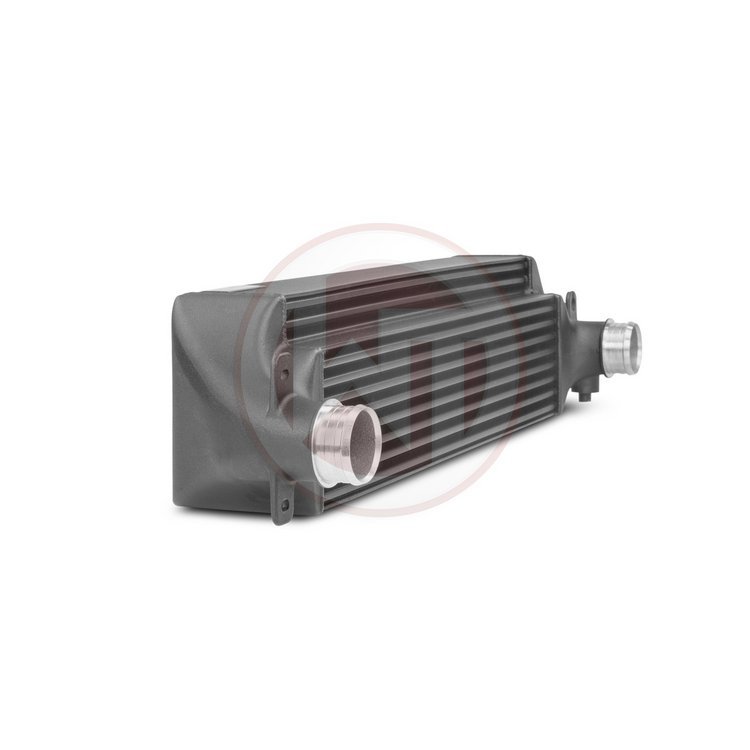

Wagner Tuning Competition FMIC Intercooler & Charge/Boost Pipe Kit for Toyota GR Yaris 1.6 Turbo (G16E-GTS) - Plug & Play Front Mount Charge Air Cooler Upgrade - Direct Fit Yaris GR 2020+ Track/Stage 1-2 | Silicone Hoses & Alloy Hard Pipes

Serious cooling for your Toyota GR Yaris G16E-GTS. This Wagner Tuning Competition charge air cooler and pipework package is a direct bolt-on solution that delivers stronger, repeatable performance on spirited road drives, track days and time attack without compromise. Expect steadier intake temps, reduced heat soak and smoother boost control on standard power and tuned cars alike.

Designed specifically for the GR platform, the stepped tube and fin core measures 630 mm x 137 mm x 135 mm plus 630 mm x 43 mm x 100 mm, totalling 14.36 litres of charge air volume. That equates to a 24 percent increase in face area and a 69 percent jump in core capacity over the factory unit, helping the 1.6 three cylinder turbo hold power run after run.

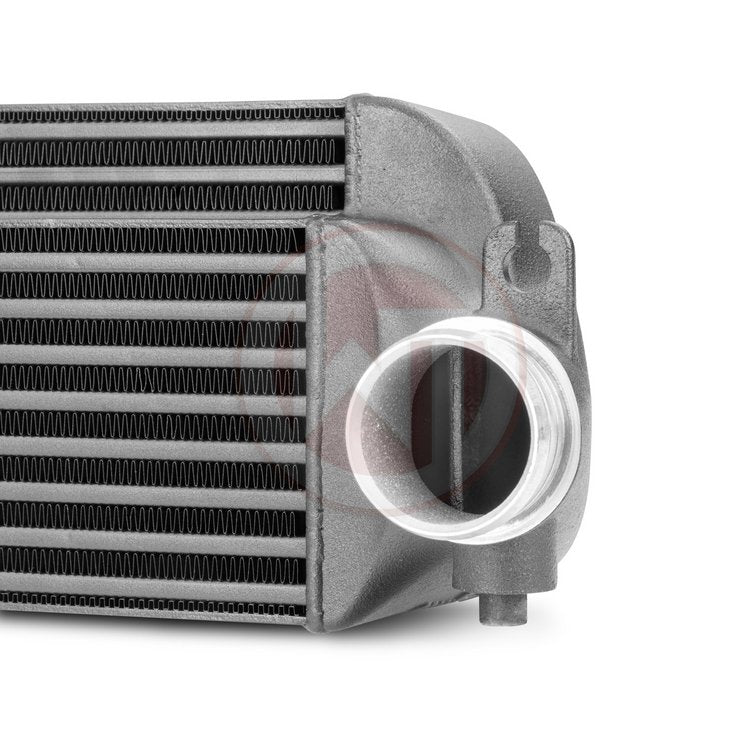

High quality cast alloy end tanks are flow optimised for low pressure drop and excellent throttle response. An integrated air guide helps keep cooling airflow moving to surrounding components, supporting overall thermal management on hard driven cars. The durable powder coated finish resists corrosion and promotes efficient heat transfer, ideal for UK weather and year round use.

• Direct fit charge air cooler for Toyota GR Yaris 1.6 turbo, no cutting required
• Stepped tube and fin core for maximum surface area within the OE crash bar
• Around 24 percent larger frontal area and approximately 69 percent more core volume than stock
• Cast aluminium end tanks for smooth internal flow and reduced turbulence
• 60 mm inlet and outlet for improved flow potential on mapped and hybrid turbo setups
• Black powder coated finish for longevity and efficient heat dissipation
• Supplied with reinforced silicone couplers and upgraded alloy boost and charge pipes
• Ideal for fast road, track and motorsport builds seeking consistent charge temps

Technical data

• Core size: 630 mm x 137 mm x 135 mm plus 630 mm x 43 mm x 100 mm, stepped, 14.36 L total
• Core size in inches: 24.8 in x 5.4 in x 5.3 in plus 24.8 in x 1.7 in x 3.94 in, 876 in³ total
• OE cooler: V = 8.5 L / 519 in³, A = 913 cm² / 141 in²
• Wagner cooler: V = 14.36 L / 876 in³, A = 1134 cm² / 176 in²
• Inlet and outlet: 60 mm

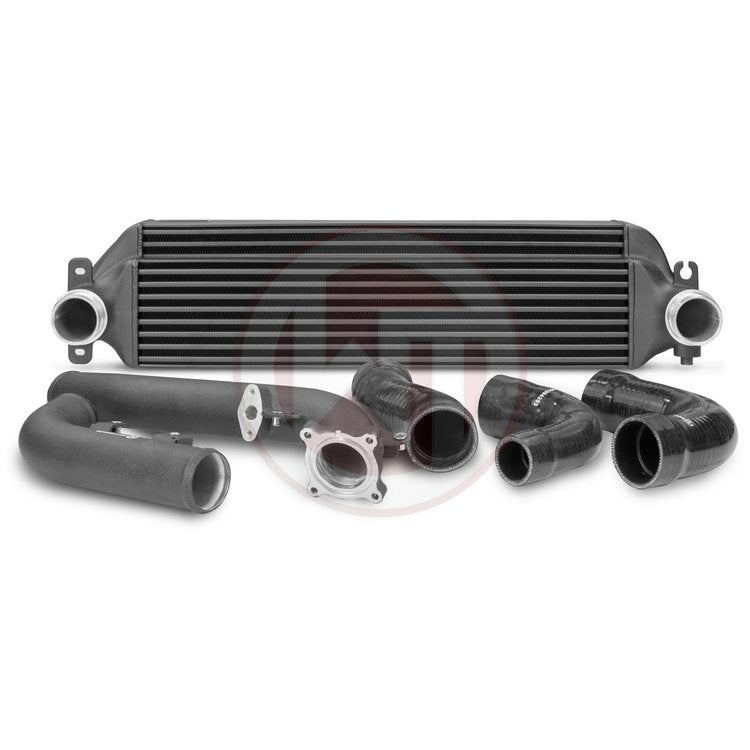

What you get

• Wagner Tuning Competition charge air cooler
• 3 x black multi ply silicone hoses
• Aluminium boost pipe
• Aluminium charge pipe
• All brackets, fixings and clamps
• Installation guide

Fitment is straightforward thanks to a genuine plug and play design that replaces the original cooler assembly and pipework. The kit is engineered to work with factory mounting points and sensors for a clean, OEM style installation with uprated performance.

We rate this setup highly on our own builds and customer cars. Feedback has been outstanding for fit and finish, the quality of the hardware and the way it keeps intake air temperatures consistent during repeated hard pulls and long sessions.

Professional installation

Prefer expert fitting. Book your GR Yaris in with MJ Modifications in Warwickshire. Request a quotation at info@mjmodifications.co.uk and our team will handle everything from installation to post fit checks.
