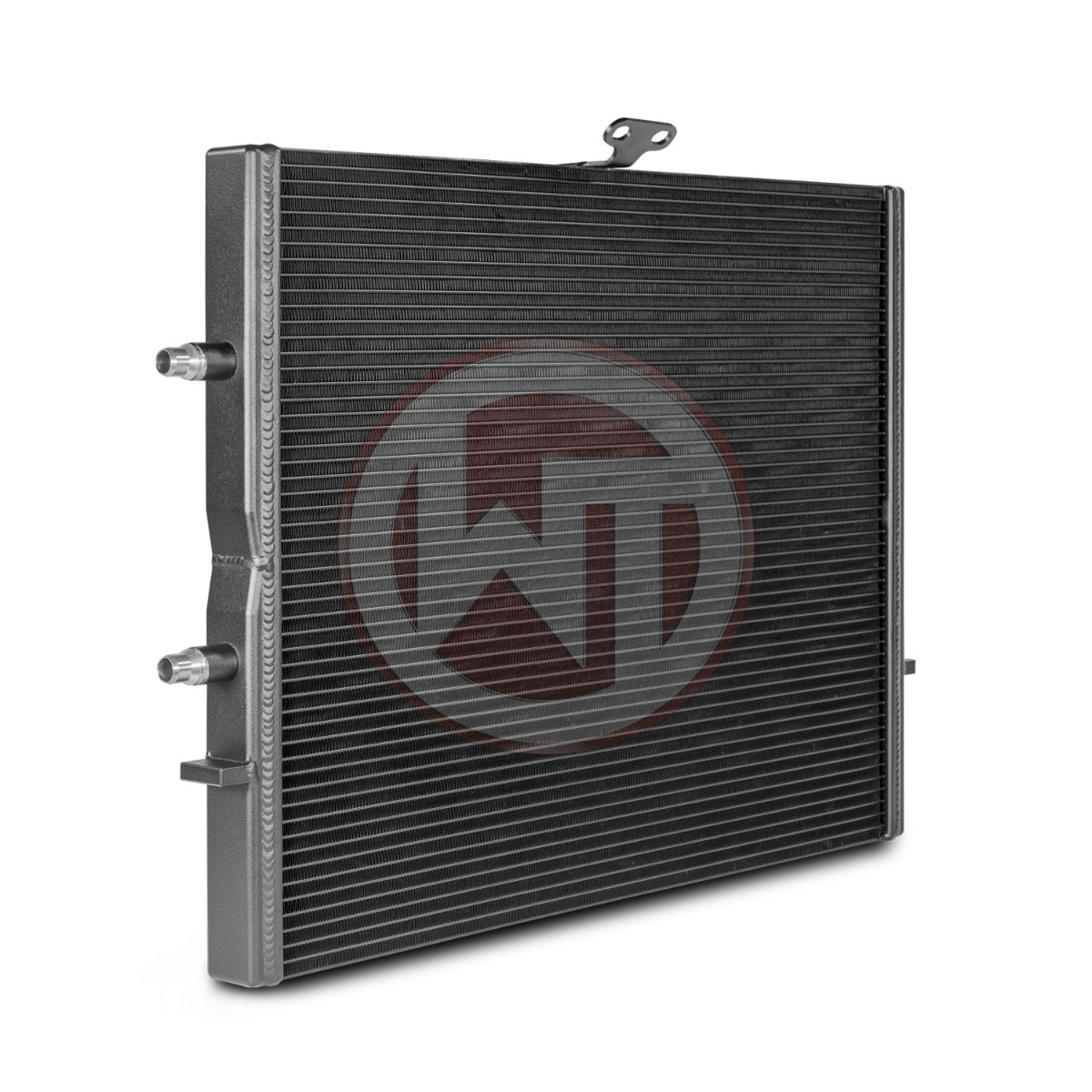

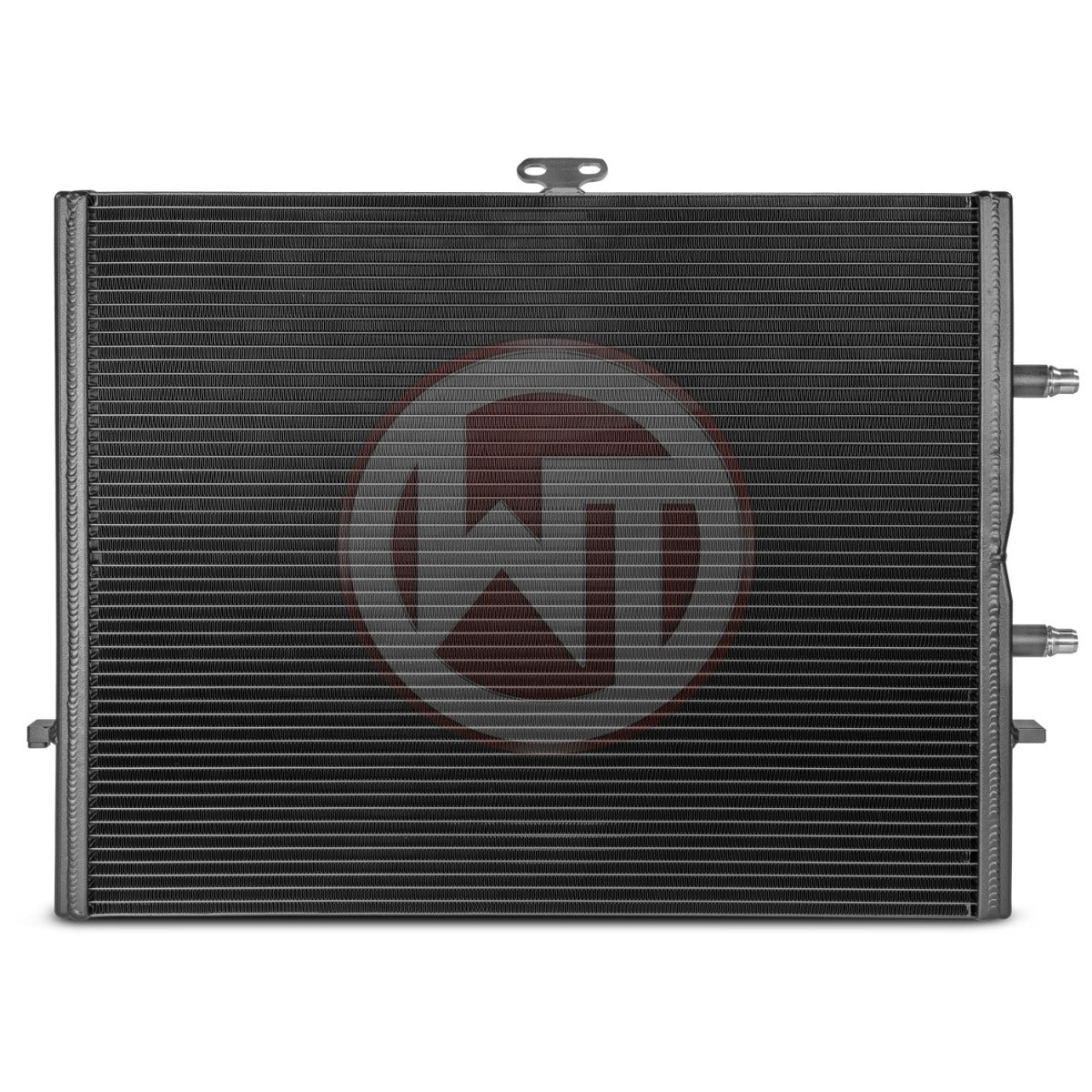

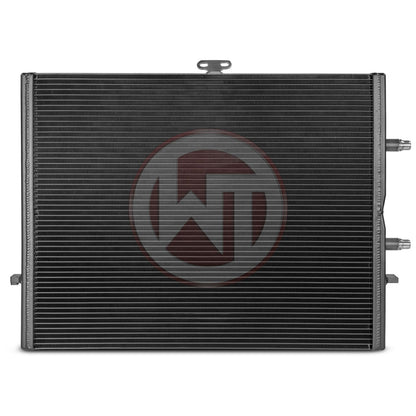

Wagner Tuning Competition Low Temp Front Mount Heat Exchanger / Auxiliary Radiator (LTR) - BMW S55 M3 F80, M4 F82 F83, M2 Competition F87 (M2C) - Charge Cooler Pre-Radiator | Water-to-Air Intercooler Radiator | Plug & Play Track Cooling Upgrade (F8X)

Wagner Tuning Competition Low-Temperature Pre-Radiator for BMW M3 M4 M2 Competition S55

Serious S55 cooling for hard road use and track days. This uprated auxiliary cooler from Wagner Tuning is a direct bolt-on, drop-in upgrade for the water-to-air charge cooler circuit on BMW F80 M3, F82 M4, F83 M4 and F87 M2 Competition with the 3.0 twin-turbo straight-six. It replaces the factory pre-rad in the front grille area, boosting thermal capacity and stabilising intake temps for repeatable performance.

Why this upgrade makes a difference

The S55 uses a water circuit to remove heat from the charge air. Increasing the size and efficiency of the front auxiliary radiator lowers coolant temperatures in that loop, which reduces heat soak and helps your BMW deliver consistent power run after run. Wagner’s motorsport-grade core and fin design delivers stronger heat rejection while keeping airflow to the main engine radiator, condenser and other coolers.

• Up to 89 percent increase in coolant volume over the OE pre-rad for greater heat capacity
• 46.4 percent larger external surface area for faster heat dissipation
• High-efficiency competition core with optimised internal and external fin geometry
• Thermally conductive, anti-corrosion coating for long-term durability
• Maximised heat transfer with minimal impact on airflow to the rest of the cooling pack
• Factory-style fitment with plug-and-play installation and instructions included

Proven on real cars

We have fitted this Wagner Tuning unit to customer vehicles and our own builds at MJ Modifications, and feedback has been outstanding. Owners report cooler intake temps, improved heat soak resistance and steady performance on spirited drives and circuit sessions, whether stock or tuned.

Vehicle fitment

• BMW F80 M3 3.0 S55
• BMW F82 M4 Coupe 3.0 S55
• BMW F83 M4 Convertible 3.0 S55
• BMW F87 M2 Competition 3.0 S55

Technical data

OEM front auxiliary radiator dimensions:
590 mm × 308 mm × 25 mm
Volume: 4.5 litres
Area: 1,817 cm²

Wagner front auxiliary radiator dimensions:
568 mm × 468.4 mm × 32 mm
Volume: 8.5 litres (plus 89 percent vs OEM)
Area: 2,660.5 cm² (plus 46.4 percent vs OEM)

What’s included

• 1 x competition auxiliary radiator for the low-temperature charge cooling circuit
• 1 x installation guide

Installation and support

Straightforward bolt-on upgrade. For professional fitting and advice, choose MJ Modifications in Warwickshire. Request a quote at info@mjmodifications.co.uk.
